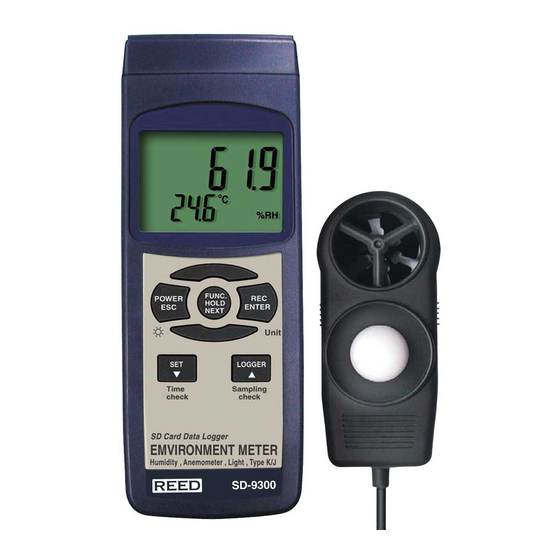

REED SD-9300 Instruction Manual

Environment meter/ datalogger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model
Environment Meter/
Datalogger
Instruction
Manual
Find Quality Products Online at:
reedinstruments
www
GlobalTestSupply
www.
SD-9300
Only if you REALLY need them:
Rich Black -
20/20/20/100
.com
sales@GlobalTestSupply.com
com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD-9300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REED SD-9300

Summary of Contents for REED SD-9300

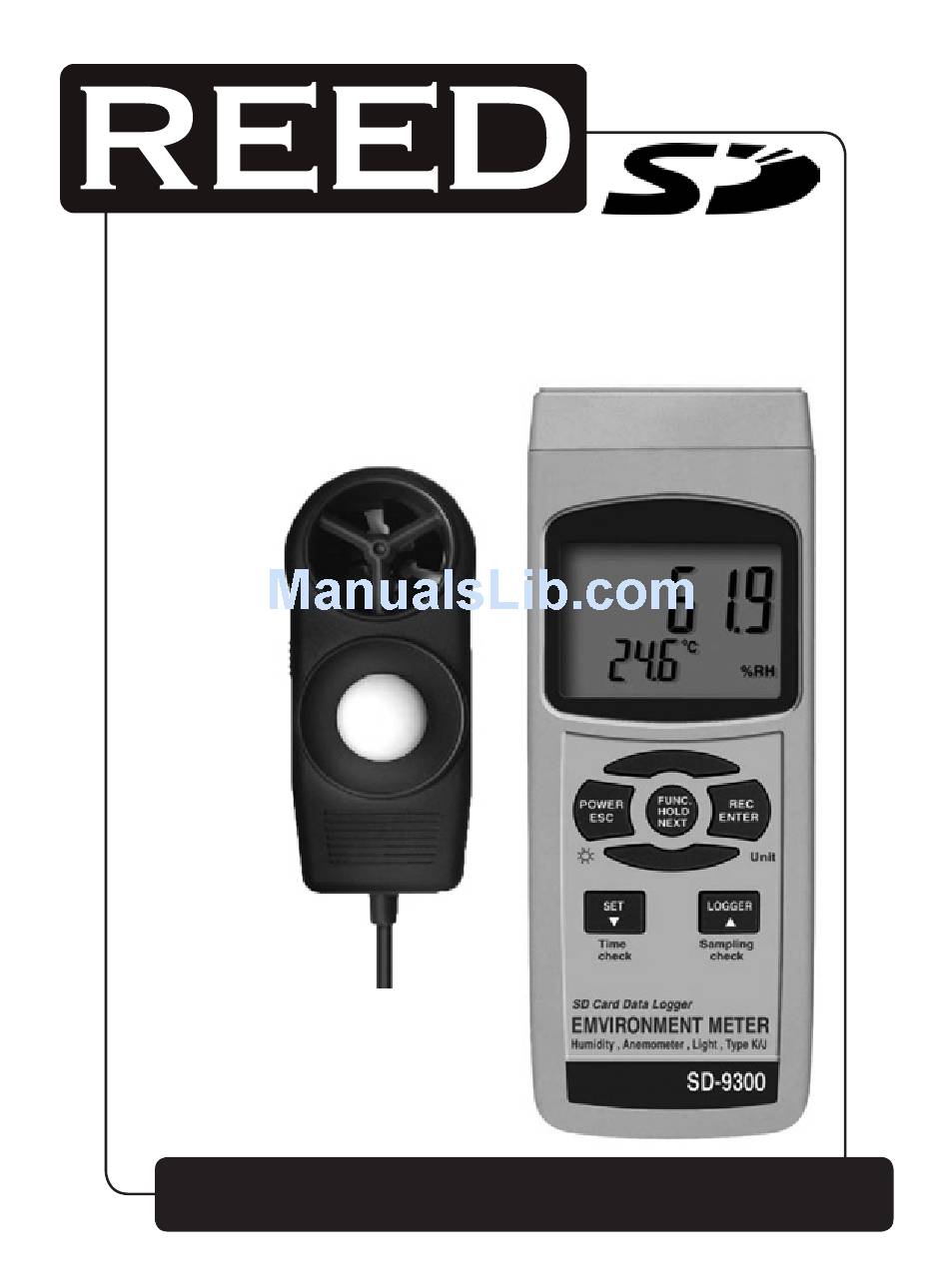

  • Page 1 Rich Black - 20/20/20/100 SD-9300 Model Environment Meter/ Only if you REALLY need them: Datalogger Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

  • Page 2: Table Of Contents

    Table of Contents Features .................... 3 Specifications ................3-5 Instrument Description ..............6 Operating Instructions ..............7-12 Function selection ................7 Air velocity/Temperature measurement .......... 7 Changing the Air velocity unit ............7 Humidity/Temperature measurement ..........8 Type K/J Thermometer measurement ..........8 Light Meter measurement ..............

  • Page 3: Features

    Features • Meter functions as a Type K/J Thermometer, Humidity/Temperature Meter, Anemometer, Light Meter, and a Sound Level Meter (with the optional adapter) • Humidity measurements shown in both %RH and Temp • Anemometer can default the display unit to m/S, FPM, Km/h, mph, knot •...
  • Page 4 Accuracy: ± 0.8°C/1.5°F Operating Temperature: 0-50°C (0-122°F) Operating Humidity: Less than 85% R.H. Power Supply: UM3/AA (1.5 V) x 6 batteries Weight: 515g/1.13lb Dimensions: Main instrument: 135 x 60 x 33mm Probe: 105 x 46 x 29mm Includes: Multi-function Probe, hard carrying case, &...
  • Page 5 3 V/M & frequency less than 30 MHz only Blue - 100/80/30/5 34 Blue Yellow - 0/27/100/0 23 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 85 Red Yellow - 0/27/100/0 23 Yellow REED products, contact REED Instruments at info@reedinstruments.com...

  • Page 6: Instrument Description

    Instrument Description 1. Display 12. AC/DC 9V Power Adapter 2. Power, ESC, & Backlight Button Input Socket 3. Hold, Function, & Next Button 13. Battery Compartment/Cover 4. REC, Enter, & Unit Button 14. Battery Cover Screws 5. SET, Down, & Time Check Button 15.

  • Page 7: Operating Instructions

    Operating Instructions Function selection 1) Turn on the meter by pressing the Power Button. To turn the meter, hold the Power Button for over 2 seconds. 2) The meter has 4 measuring functions to choose from: Air veloc- ity/Temp, Humidity/Temp, Type K/J Thermometer, or Light Meter measurements.

  • Page 8: Humidity/Temperature Measurement

    Humidity/Temperature measurement 1) Select the “rH” function (see Function Select) 2) When the meter is off, plug the Probe Plug into the Probe Input Socket, then power on the meter by pressing the Power Button. 3) The top part of the Display will show the %RH value, and the lower part of the Display will show the temperature value.

  • Page 9: Zero Adjustment

    Zero Adjustment While taking a Light Measurement, completely cover the light sensor. If the Display does not show value of zero, press and hold the Logger But- ton until the Display shows a zero value. Sound Level measurement (optional probe required) 1) Power off the meter.

  • Page 10: Backlight On/Off

    To delete the minimum value, press the Hold Button once, and the display will show a “REC.” symbol only and execute the memory function continuously. 3) To exit the memory record function, press the REC button for 2 seconds. The display will revert to the current reading. Backlight ON/OFF After powering the meter ON, the LCD Backlight will turn on automati- cally.

  • Page 11: Manual Datalogger

    To set the sampling time, and to toggle the beeper sound on or off, refer to the Advanced Settings section of this manual. 2) Pause the Datalogging; while Datalogging, if press the Logger But- ton once. While paused, the “REC” symbol will stop flashing. Press the Logger Button again to resume Datalogging, and the “REC”...

  • Page 12: Sd Card Data Structure

    SD Card Data Structure 1) The first time the SD card is used in the meter, the SD card will generate a folder: EMA01 2) The first time you use the Datalogger, in the folder EMA01, a new file name EMA01001.XLS will be created. The Datalogger will use this file until the Data has reached to 30,000 rows.

  • Page 13: Advanced Settings

    Advanced Settings During normal functions (not Datalogging), press and hold the SET Button for 2 seconds to enter the “Advanced Setting” mode. Press the Next But- ton scroll through eight main functions, shown on the lower display: dAtE Set clock time (Year/Month/Date, Hour/Minute/Second) Set SD card Decimal character PoFF Auto power OFF management bEEP Set beeper sound ON/OFF...

  • Page 14: Setting The Decimal Point On The Sd Card

    Setting the Decimal point on the SD Card 1) When the lower display shows “dEC”, use the Up or Down Buttons to toggle between “bASIC” (“.” Decimal Point) or “Euro” (“,” Deci- mal Point). 2) After the Decimal point character has been selected, press the Enter Button to save the setting as the default.

  • Page 15: Select The Temperature Unit To °C Or °F

    Select the Temperature unit to °C or °F 1) When the lower display shows “t-CF”, use the Up or Down Buttons to select “C” (for °C) or “F” (for °F). 2) After selecting “C” or “F”, press the Enter Button to save the set- ting as the default.

  • Page 16: Pc Serial Interface

    PC Serial Interface The instrument features an PC output via 3.5 mm terminal. The connector output is a 16 digit data stream which can be utilized to the user’s specific application. An USB RS232 lead with the following connection will be required to link the instrument with the PC serial input.

  • Page 17: System Reset

    Blue - 100/80/30/5 34 Blue Yellow - 0/27/100/0 23 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 85 Red REED products, contact REED Instruments at info@reedinstruments.com Yellow - 0/27/100/0 23 Yellow...
