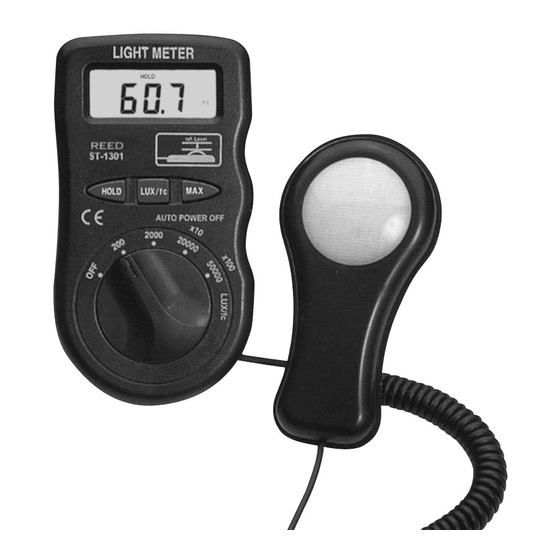

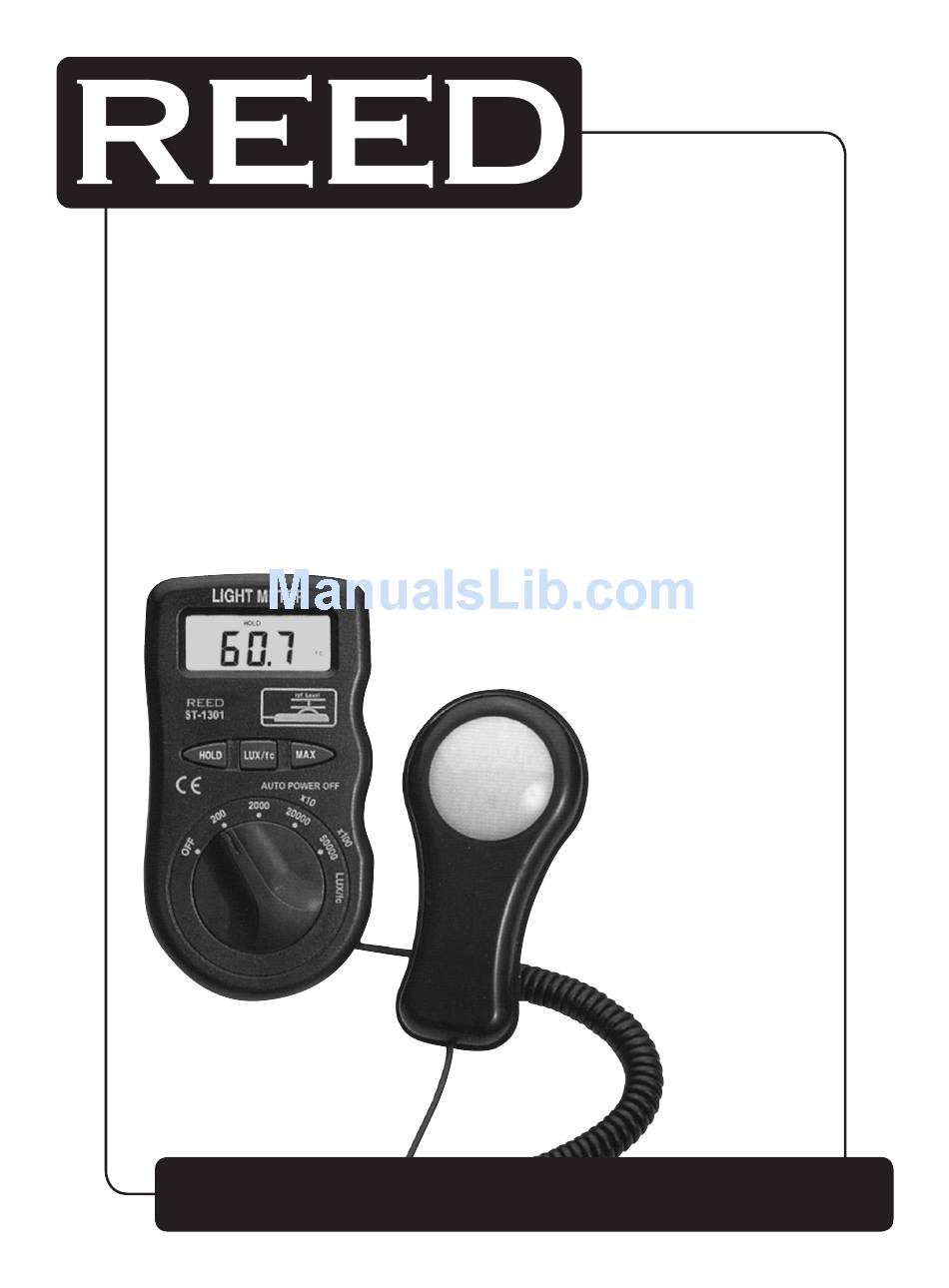

- Page 1 ST-1301 Model Light Meter Instruction Manual Pantone 485 & 123 485 = (0/100/100/10) 123 = (0/18/100/0) reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Table Of Contents Features....................... 2 Specifications....................3 Panel Description..................4 Operating Instructions................5-6 Battery Replacement................... 6 Features • Easy to use, pocket size and light weight • 3 1/2 digital LCD display with LUX, Fc, LOBAT, MAX, HOLD indication •...
-
Page 3: Specifications
Specifications Display: 1999 counts LCD display with LUX, Fc, . LOBAT, MAX, HOLD indication Polarity: Automatic, (-) negative polarity indication Over-range: “1” mark indication Low battery indication: The “BAT” is displayed when the battery voltage. drops below the operating level Measurement rate: 1.5 times per second, nominal Storage temperature:... -
Page 4: Panel Description
Panel Description 1- LCD display: 1999 counts LCD display with . LUX, Fc, LOBAT, MAX, HOLD indication 2- Power /Function/Range switch: Turn power ON or OFF . and select measurement function and ranges. 3- Photo Detector: Long life silicon photo diode inside 4- MAX. -
Page 5: Operating Instructions
Operating Instructions Measuring Light 1. Turn the Power/Function/Range switch to select the range to desired (x1 Lux/Fc , x10Lux/Fc, x100Lux/Fc) range. 2. Remove the photo detector to the light source in a horizontal position. 3. Read the illuminance nominal from the LCD display. 4. -
Page 6: Battery Replacement
7. Recommended Illumination: Locations *Office Conference, Reception room 200 ~ 750 Clerical work 700 ~ 1,500 Typing drafting 1000 ~ 2,000 *Factory Packing work, Entrance passage 150 ~ 300 Visual work at production line 300 ~ 750 Inspection work 750 ~ 1,500 Electronic parts assembly line 1500 ~ 3,000 *Hotel... - Page 7 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
