Assembly Instructions

Wall Mounting Instructions

Before mounting please ensure the wall is suitable for this type of appliance.
1. Find the correct position on the wall following the safety instructions. There must be a minimum
clearance of 10cm between the floor and the base of the heater once in position.

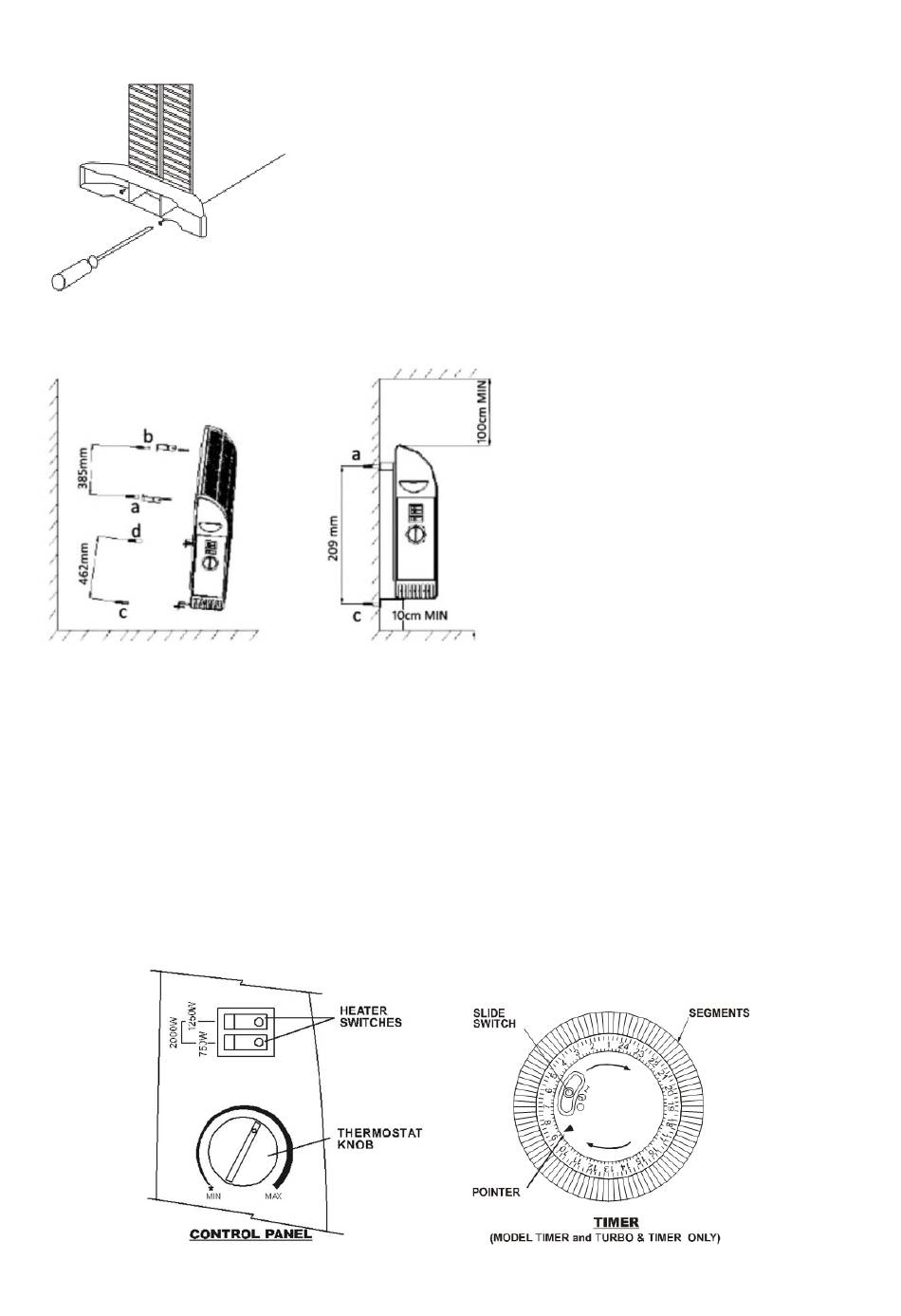

2. Using an electric drill, drill four 8mm holes (a, b, c and d) into the wall, the distance between "a" and
"b" is 38.5cm, the distance between "c" and "d" is 46.2cm. The depth of the hole should be about
4cm. The distance between "a" and "c" (also "b" and "d") is 20.9cm. As picture A shows. Then kock
the self-tapping screw into the wall by hammer.
3. Fix the screws and bracket onto the wall, please pay attention to the position of the bracket and if
any hazards are within range.
4. Line up the holes of the bracket to the back of the heater and let the clip hold the heater. Screw the
heater to the bracket through the alingned holes.

Control Panel

1. Ensure that the heater is unplugged and that the power
switches are turned to the off position.
2. Turn the heater upside down.
3. Locate the two holes at each end of the base of the heater.
4. Secure the footplates to the base through the holes using the
screws provided.
5. Turn the heater upright.
