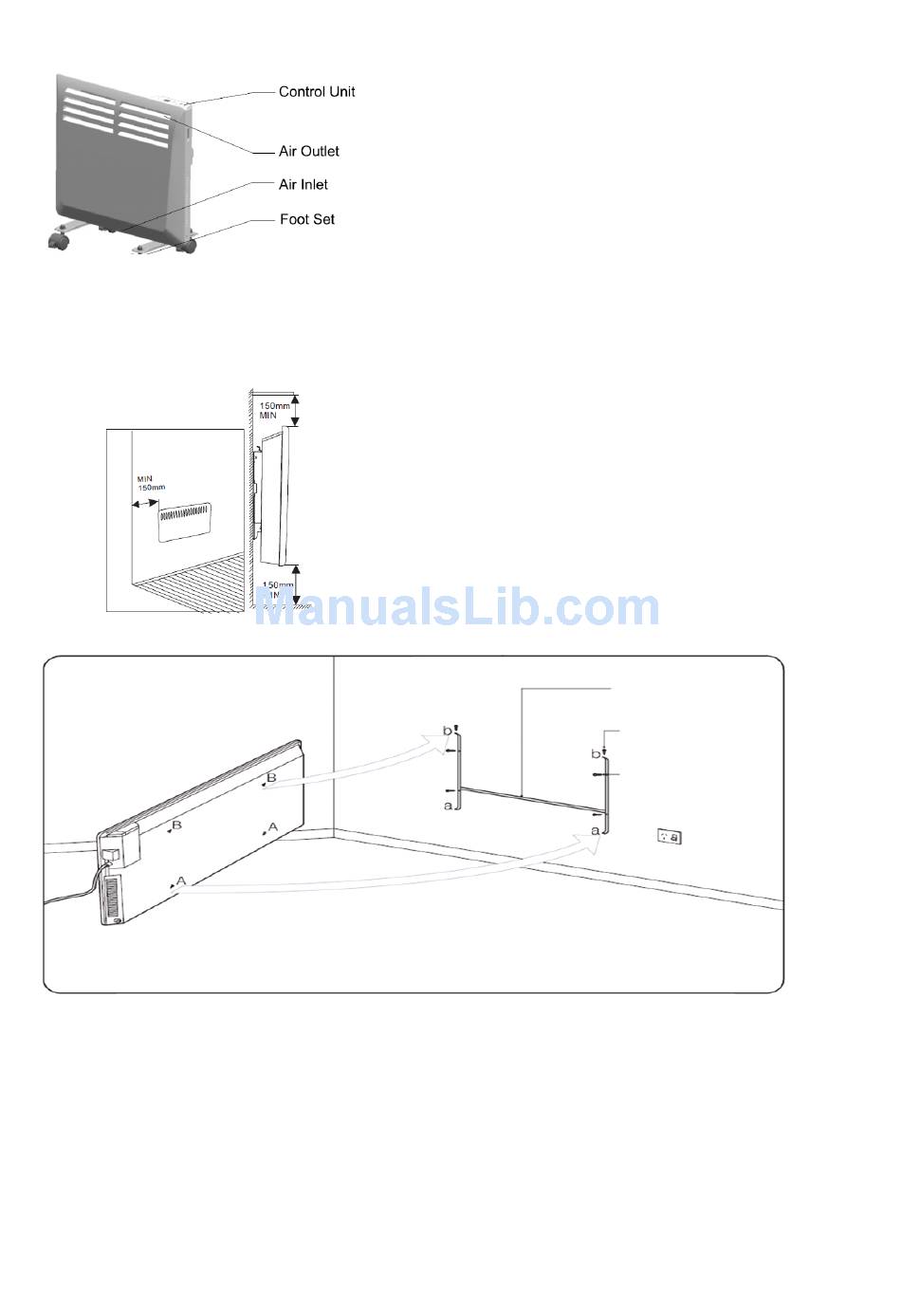

Overview of the Appliance

Wall Mounting Instructions

Before mounting please ensure the wall is suitable for this type of appliance.
When slotting the panel hater onto the wall bracket, locate and align points ‟A‟
Note: For masonry walls use the plastic sheaths with screws provided.
5. Detach the mounting bracket from the back of the heater by unscrewing the 2 locking screws located
at the top of the wall mounting bracket.
6. Position the bracket on the wall and drill holes as required.
7. Secure the mounting bracket to the wall with the four mounting screws supplied. (For masonry walls
use the plastic wall plugs provided with the screws)
8. Slot the back of the heater onto the mounting bracket and secure with two locking screws (at the top
of the mounting bracket).
9. Plug heater into a standard 220~240 volt electrical outlet. The plug can be removed and the heater
hardwired to the mains. This must be done by a qualified electrician.
1. When mounting the heater on the wall do not attach the feet
to the base.
2. Find the correct position on the wall following the safety
instructions.
3. Make sure that the heater is unplugged.
4. Ensure that you give all sides of this appliance a minimum of
150mm clearance.
5. Position the heater within 1 metre from a wall socket.
with points „a‟ first and then points „B‟ with points „b‟

SPECIFICATIONS

Rated Power: 2000W/1000W 1500W/750W 100W/500W
Rated Voltage: 220 – 240 V
Dimensions: 830x76x400
3
50Hz
595x76x400
Mounting Bracket
Locking Screws
Mounting Screws
460x76x400
