iGenix IG9302 User Manual

2kw industrial fan heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL
2kW Industrial Fan Heater
IG9302
Batch code:
Please read these instructions carefully before use and retain for future reference
Before switching on your appliance,
always check for any damage which may have been caused in transit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IG9302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iGenix IG9302

Summary of Contents for iGenix IG9302

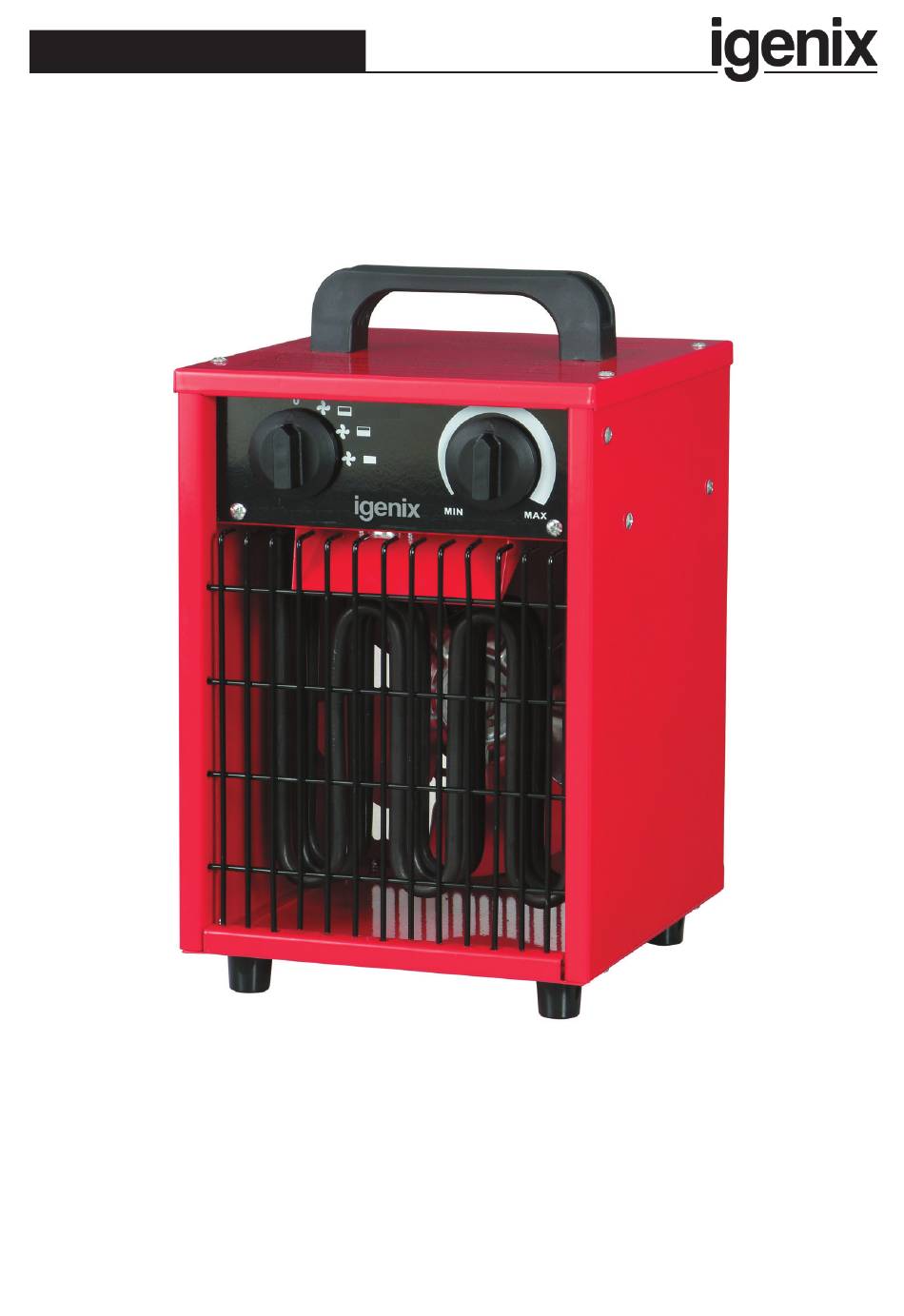

  • Page 1 USER MANUAL 2kW Industrial Fan Heater IG9302 Batch code: Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...

  • Page 2: Table Of Contents

    CONTENTS Important Safety Instructions ..........3-4 Specification .................5 Appliance Overview ..............6 Operating Instructions ...............6 Cleaning and Maintenance ............7 Trouble Shooting Guide .............8 Fuse Replacement ...............9 Disposal Information ..............9 Terms and Conditions and Warranty Information ..10-11...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: When using electrical appliances, basic safety precautions should always be followed: •...
  • Page 4 visible signs of damage. • This appliance is for indoor use only. Never use it outdoors. • This appliance is not designed for use as the main form of heating. • Do not place the appliance on carpets with a deep pile, or on a damp or flammable surface.

  • Page 5: Specification

    SPECIFICATION Model IG9302 Brand Igenix Wattage (W) 2000W Frequency (Hz) 50-60Hz Voltage (V) 220-240V Thermostatic Cut Off Overheating Protection Tip Over Switch Power Settings 650W Medium 1300W High 2000W Temperature Range 5°C – 40°C IP Rating IP44 Product Dimensions (mm)

  • Page 6: Appliance Overview

    APPLIANCE OVERVIEW Handle Temperature Power Dial Dial Protective Heating Grille Element OPERATING INSTRUCTIONS • Connect the appliance to a suitable power socket. If the power dial is set to ‘0’, the appliance is turned off. • Turn the power dial to set the desired power output: •...

  • Page 7: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Before attempting any cleaning or maintenance on the appliance, allow it to cool completely and ensure that it is switched off and disconnected from the power supply. Wipe the outside of the unit with a soft, damp cloth. A mild detergent may be used if necessary.

  • Page 8: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE If you experience difficulties with the appliance, please check the suggestions below before contacting customer services on 01473 271272: Problem Possible Cause Possible Solution The appliance does not Temperature dial is set too Ensure temperature dial is heat up.

  • Page 9: Fuse Replacement

    MAINS PLUG FUSE REPLACEMENT Fuse Cover Fuse Replacement (Class I) This appliance must be eathed. Remove the fuse cover with a small flat head screw driver. Take out the fuse and replace with a new fuse of the same Amp. Replace the fuse cover and push back into place.

  • Page 10: Terms And Conditions And Warranty Information

    lgenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product. Upon registration we will cover your product for a period of 24 months from the original purchase date against any mechanical or electrical defects.

  • Page 11: Product Information

    Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk To register your product, please complete all sections of the form below and return to us at the following address: lgenix, 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR.
  • Page 12 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR Tel. 01473 271 272 Disclaimer: Igenix operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
