- Page 1 G.hn to Gigabit Ethernet Bridge Quick Installation Guide G1002-M / G1002-M+ / G2002-M+...
- Page 2 Product names, other than Positron's, mentioned herein may be trademarks and/or registered trademarks their respective companies. Disclaimer Notice Although Positron Access Solutions has made every effort to ensure the accuracy of the information contained herein, this document is subject to change. Positron Access Solutions...
-
Page 3: Table Of Contents
G2002-M+ (Copper) Endpoint ................... 8 G2002-M+ LED Definition .................... 9 G1002-M / G1002-M+ / G2002-M+ Gigabit Ethernet Ports ..........9 Physical Mounting of the G1002-M / G1002-M+ / G2002-M+ ........10 ............................11 Technical and Regulatory Specifications .................. 11 G1002-M Technical Specifications.................. 11 G1002-M+ Technical Specifications ................ -
Page 4: About The G1002-M / G1002-M+ / G2002-M
While each of these devices perform a similar function, here is a summary of the unique features of each model: • G1002-M: this G.hn Endpoint is locally powered and offers two (2) Gigabit Ethernet ports (RJ-45). The 1 Ethernet Port can be configured as a VLAN Trunk port when there is a need to support a large number of VLANs. - Page 5 Each G.hn subscriber port supports up to 1.7 Gbps of dynamically allocated bandwidth for near symmetrical Gigabit services over the existing telephone wire or coaxial cable. Note: Read Chapter entitled “Safety and Warnings” before proceeding. Positron Access Solutions Document 180-0220-001 R01...
-
Page 6: G1002-M (Copper) Endpoint

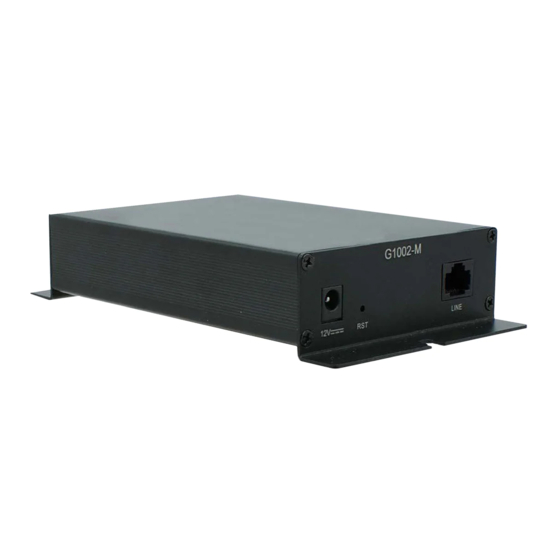

G1002-C Quick Installation Guide G1002-M (Copper) Endpoint The G1002-M (coper) G.hn Bridge to Gigabit Ethernet comes with two (2) Gigabit Ethernet port to connect the Residential Gateway (RG). 2 x Gigabit Ethernet (RJ-45) G1002-M Status LEDs/ Figure 1: G1002-M Gigabit Ethernet Port and Status LEDs G.hn Port (RJ-45) -
Page 7: G1002-M+ (Copper) Endpoint
Figure 3: G1002-M LED definition G1002-M+ (Copper) Endpoint The G1002-M+ (copper) G.hn Bridge to Gigabit Ethernet comes with two (2) Gigabit Ethernet port to connect the Residential Gateway (RG). The Gigabit Ethernet Port labelled as GE1 supports POE / POE+ to power an external device. -
Page 8: G1002-M+ Led Definition
Green indicates units is working Yellow indicates unit is booting or being reset Green indicates port GE1 is providing POE to an attached device Table 2: G1002-M+ LED Definition G.hn Status LED Power LED GE1 POE status LED G1002.M+ Status LED... -
Page 9: G2002-M+ Led Definition
Ethernet ports. Please note that port GE1 can be configured in VLAN Trunk mode (via the GAM) if required for your application. The GE1 port of the G1002-M+ and G2002-M+ supports Power Over Ethernet to power an external device. When locally powered, the G1002-M+ and G2002-M+... -
Page 10: Physical Mounting Of The G1002-M / G1002-M+ / G2002-M
15.4W as per the IEEE 802.3af standard. Physical Mounting of the G1002-M / G1002-M+ / G2002-M+ The G1002-M / G1002-M+ and G2002-M+ share the same base enclosure and have the same mounting options. You can optionally install (mount) the enclosure on a wall or flat surface as follows: 1. -
Page 11: Technical And Regulatory Specifications
Support G.hn over a single copper pair (SISO mode) or over two copper pairs Ease of Deployment (MIMO mode) Ease of Operation Automatic firmware and configuration management via the Positron GAM AES-128 encryption with individual keys for each end-node under the control of Encryption the Positron GAM acting as the Master Node... -
Page 12: G1002-M+ Technical Specifications
Support G.hn over a single copper pair (SISO mode) or over two copper pairs Ease of Deployment (MIMO mode) Ease of Operation Automatic firmware and configuration management via the Positron GAM AES-128 encryption with individual keys for each end-node under the control of Encryption the Positron GAM acting as the Master Node... -
Page 13: Regulatory Compliance
Support G.hn over a single copper pair (SISO mode) or over two copper pairs Ease of Deployment (MIMO mode) Ease of Operation Automatic firmware and configuration management via the Positron GAM AES-128 encryption with individual keys for each end-node under the control of Encryption the Positron GAM acting as the Master Node... -
Page 14: Regulatory Compliance
Regulatory Compliance FCC Declaration of Conformance The G1002-M, G1002-M+ and G2002-M+ devices comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) These devices may not cause harmful interference, and; (2) these devices must accept any interference received, including interference that may cause undesired operation. - Page 15 Approved for use in an indoor location only Power Supply • Ensure that a suitable AC power outlet is located near the G1002-M, G1002-M+ or G2002-M+ (when locally powered) and easily accessible. • Connect the power supply cord only to the AC power outlet that meets the specifications marked on the AC power adapter and connect the DC...
- Page 16 G1002-C Quick Installation Guide The manufacturer declares that this product (G1002-M, G1002-M+, G2002-M+) is in conformity with the requirements and other relevant provisions of the following Canadian standards: • CAN ICES-3 (B)/NMB-3(B) Environmental Conditions Maximum environmental values during use: • Temperature: 0°C to +40°C (32° to 104° F) •...
-
Page 17: Warranty And Customer Service
______________________________________ Warranty and Customer Service Positron Access Solutions will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service. Warranty information can be found in your Positron Access customer web portal: http://www.positronaccess.com/Portal.php...
