Installing/removing
module between
connecting tabs
30
Interroll Transfer module SH 1400
Maintenance and repair

Preparatory and follow-up maintenance work

WARNING
Risk of injury from crushing and electrocution
Installation and maintenance tasks on a conveyor system while it is in operation can cause
crushing and electric shock.
4 Power down the entire conveyor module and ensure that it cannot be started accidentally.
Fasten screws with a tightening torque of 19 Nm.
To replace the drive roller, the module must first be removed from the connecting tabs and,
therefore, the complete system.
1 2

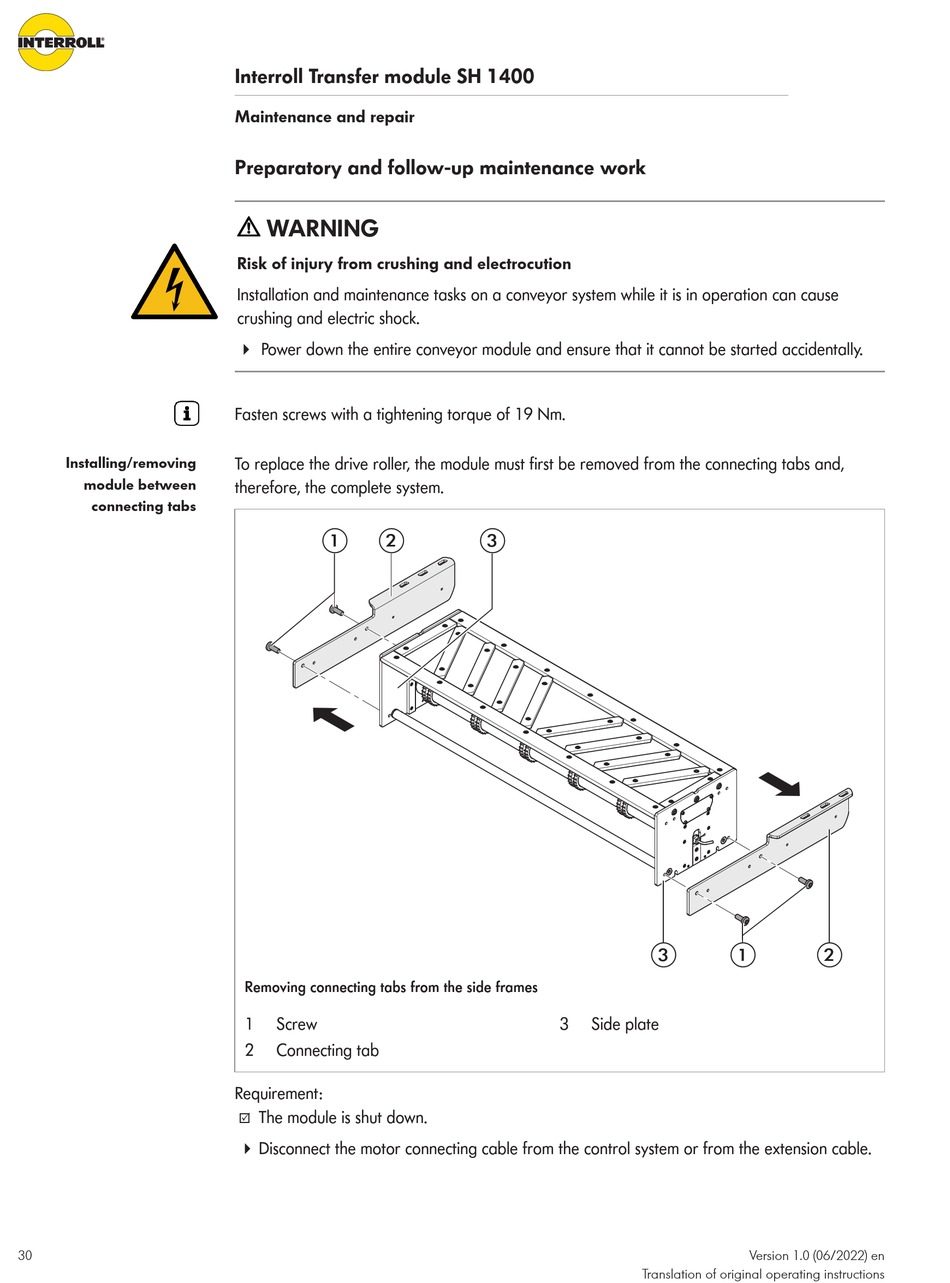

Removing connecting tabs from the side frames
1 Screw
2 Connecting tab
Requirement:
The module is shut down.
R
4 Disconnect the motor connecting cable from the control system or from the extension cable.
3
3
3 Side plate
Translation of original operating instructions
1 2
Version 1.0 (06/2022) en
