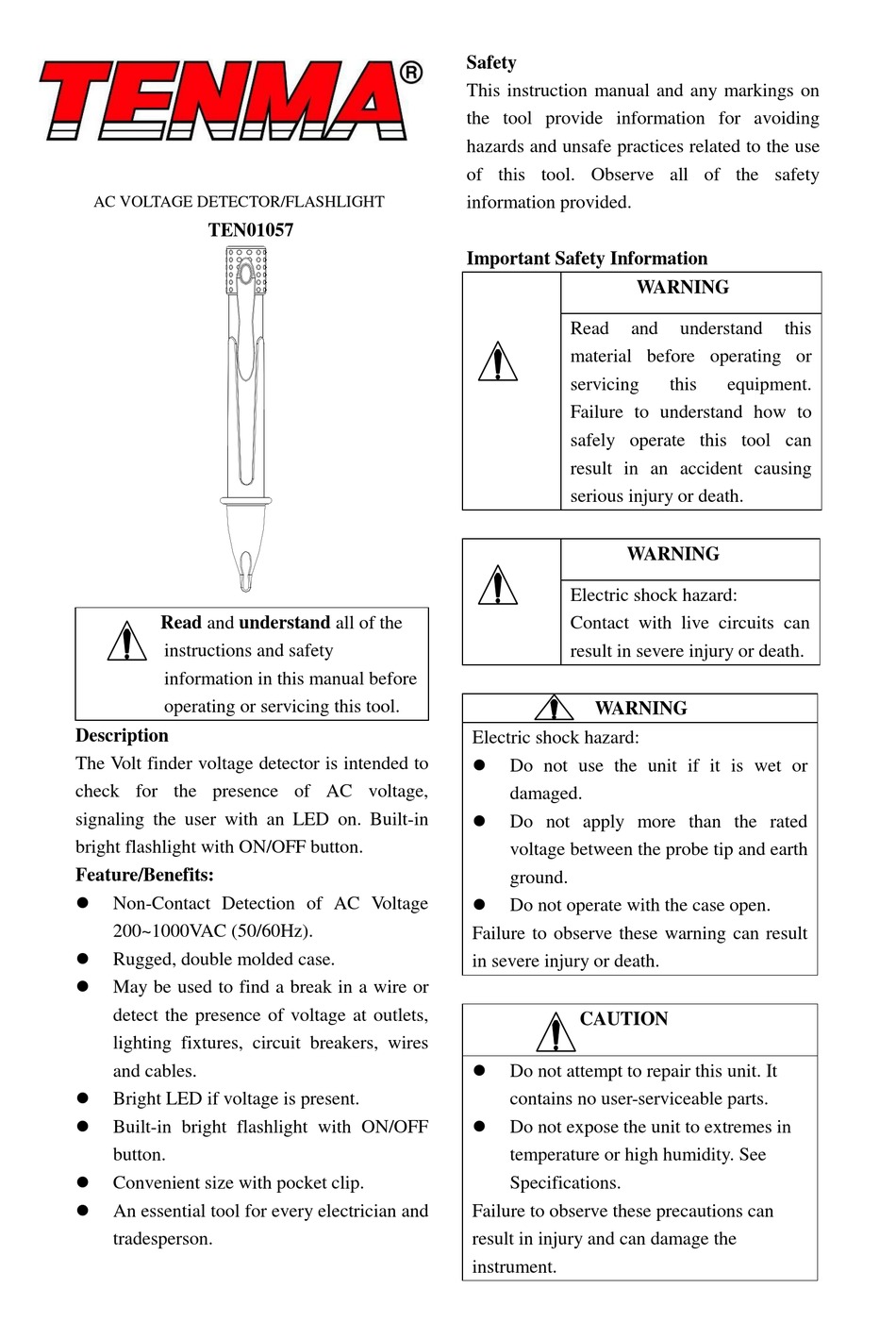

Tenma TEN01057 Instruction Manual

AC VOLTAGE DETECTOR/FLASHLIGHT
TEN01057
Read and understand all of the
instructions and safety
information in this manual before
operating or servicing this tool.

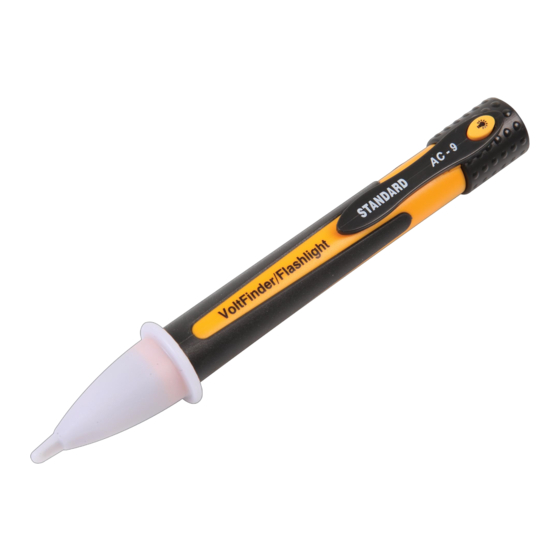

Description

The Volt finder voltage detector is intended to
check for the presence of AC voltage,
signaling the user with an LED on. Built-in
bright flashlight with ON/OFF button.

Feature/Benefits:


Non-Contact Detection of AC Voltage
200~1000VAC (50/60Hz).

Rugged, double molded case.

May be used to find a break in a wire or
detect the presence of voltage at outlets,
lighting fixtures, circuit breakers, wires
and cables.

Bright LED if voltage is present.

Built-in bright flashlight with ON/OFF
button.

Convenient size with pocket clip.

An essential tool for every electrician and
tradesperson.

Safety

This instruction manual and any markings on
the tool provide information for avoiding
hazards and unsafe practices related to the use
of this tool. Observe all of the safety
information provided.

Important Safety Information

Read and
material before operating or
servicing
Failure to understand how to
safely operate this tool can
result in an accident causing
serious injury or death.
WARNING
Electric shock hazard:
Contact with live circuits can
result in severe injury or death.
WARNING
Electric shock hazard:

Do not use the unit if it is wet or
damaged.

Do not apply more than the rated
voltage between the probe tip and earth
ground.

Do not operate with the case open.
Failure to observe these warning can result
in severe injury or death.
CAUTION

Do not attempt to repair this unit. It
contains no user-serviceable parts.

Do not expose the unit to extremes in
temperature or high humidity. See
Specifications.
Failure to observe these precautions can
result in injury and can damage the
instrument.
WARNING
understand this
this equipment.
