Summary of Contents for Lionel TMCC Ballast Tamper

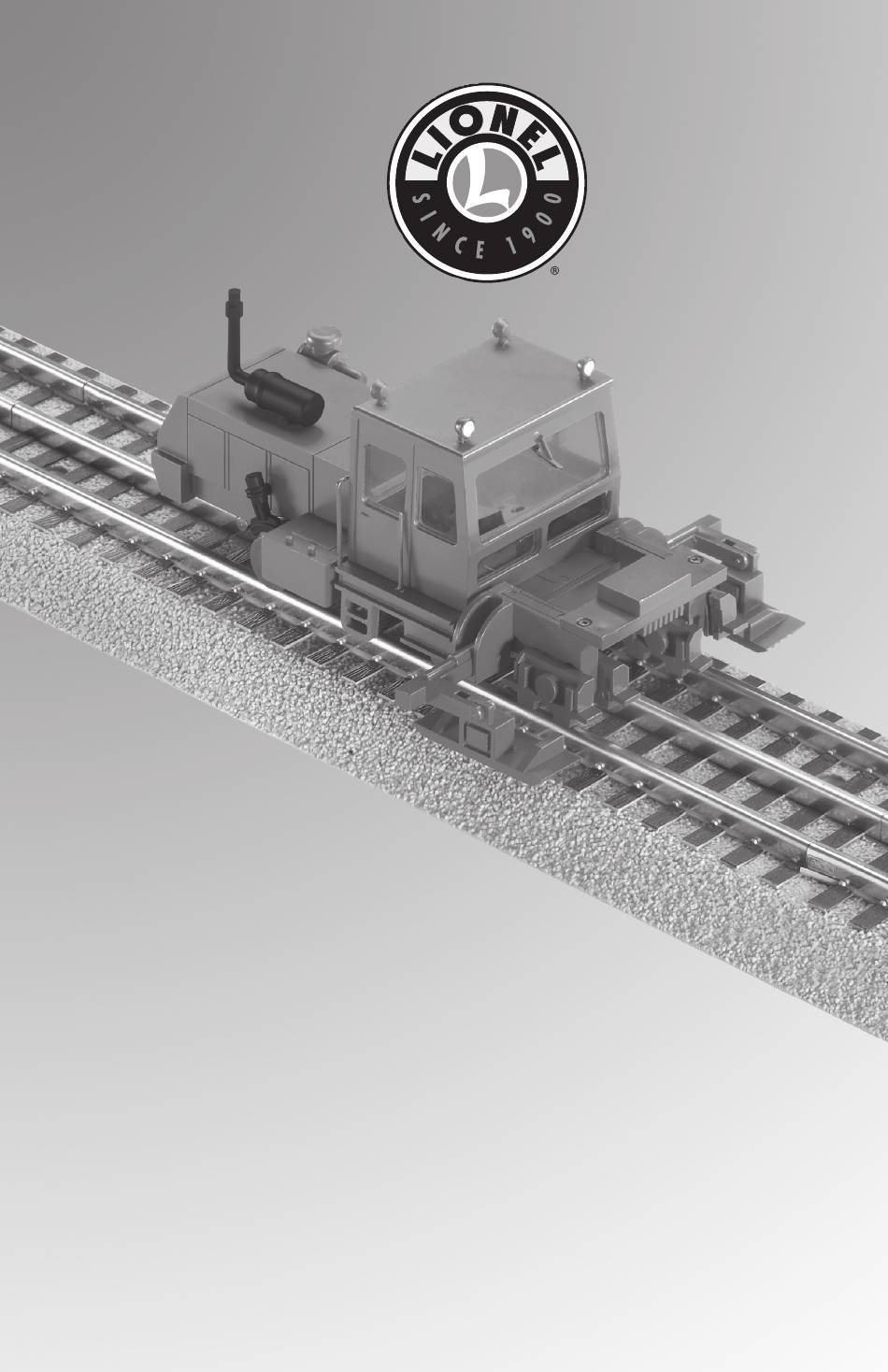

- Page 1 20135080250 8/21 Lionel Lionel TMCC Ballast Tamper TMCC Ballast Tamper Owner’s Manual Owner’s Manual...
- Page 2 Six LED work lights • Powerful, maintenance-free motor • Traction tire • One crew figure • Window Inserts The following Lionel marks are used throughout this Owner’s Manual and are protected under law. All rights reserved. ® ® ® ® ® ® ®...
-
Page 3: Table Of Contents
CAB-2/CAB-1 commands for your vehicle Assigning your vehicle a new ID# Reprogramming the Command reverse unit to restore features Transformer operations Running your ballast tamper with a Lionel transformer Locking your ballast tamper into a single operational state Tamper operations Operating the tampers... -
Page 4: Command Control Operations
Command Base, which then translates your command into digital code. That code is sent around your railroad’s outside rails in the form of a digital “halo. ” All Command-equipped Lionel engines listen to this digital communication, but they do not respond until they hear their individual ID number—in this case, “1. -
Page 5: Cab-2/Cab-1 Commands For Your Vehicle
These settings will be lost when you assign a new engine ID number. HALT Press HALT to shut down all PowerMaster electrical output on your railroad. Stops all Command- equipped Lionel locomotives in operation. Note! Use HALT only in emergency situations. -
Page 6: Assigning Your Vehicle A New Id
Command Control Operations Assigning your vehicle a new ID# s your fleet of Command-equipped Lionel vehicles grows, you’ll want to give your vehicle a more individualized number. Your vehicle can be programmed as either an engine (ENG) or accessory (ACC). Choose any number between 1 and 98. -
Page 7: Transformer Operations
Damage to sensitive electronic components may occur. Move ‘em out! Get your ballast tamper moving. Press the DIRECTION button on your Lionel transformer. This sequences the reverse unit to the next operating state in the repeating sequence: forward, neutral, reverse, and neutral. -
Page 8: Locking Your Ballast Tamper Into A Single Operational State
Transformer operations Locking your ballast tamper into a single operational state o select a single operational state for your Lionel ballast tamper (for example, forward only), you can deactivate the reverse unit’ s sequencing function with the PGM/RUN switch. Use the RUN/PGM Switch to “lock” your locomotive in a single direction, or neutral, in the Conventional environment when the switch is placed in the PGM position. -
Page 9: Tamper Operations
Tamper operations Operating the tampers our ballast tamper features four reciprocating tampers. To operate the tampers, swing the latch away from the tamper switch and then slide the ON/OFF switch to the ON position. Refer to Figure 2 on page 8 for the location of this switch. Slide the switch to the OFF position to turn off the tampers. -
Page 10: Maintaining And Servicing Your Ballast Tamper
Maintaining and servicing your ballast tamper Lubricating your ballast tamper elp your Lionel ballast tamper lead a long and productive life on your railroad by maintaining it properly. We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do), and avoid getting grease or oil on the ballast tamper’s wheels or your track. -
Page 11: Servcing Your Ballast Tamper's Leds
Carefully fit the tire into the groove. If you are uncomfortable with this operation, you may choose to have the traction tires replaced by your authorized Lionel Service Center. -
Page 12: Limited Warranty/Lionel Service
Lionel LLC or any Lionel Authorized Service Station MUST be accompanied by the original receipt for purchase (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
