71-4166-250
12/03
Lionel
Train Orders Building
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Train Orders Building and is the answer not in the manual?

Questions and answers

Related Manuals for Lionel Train Orders Building

Summary of Contents for Lionel Train Orders Building

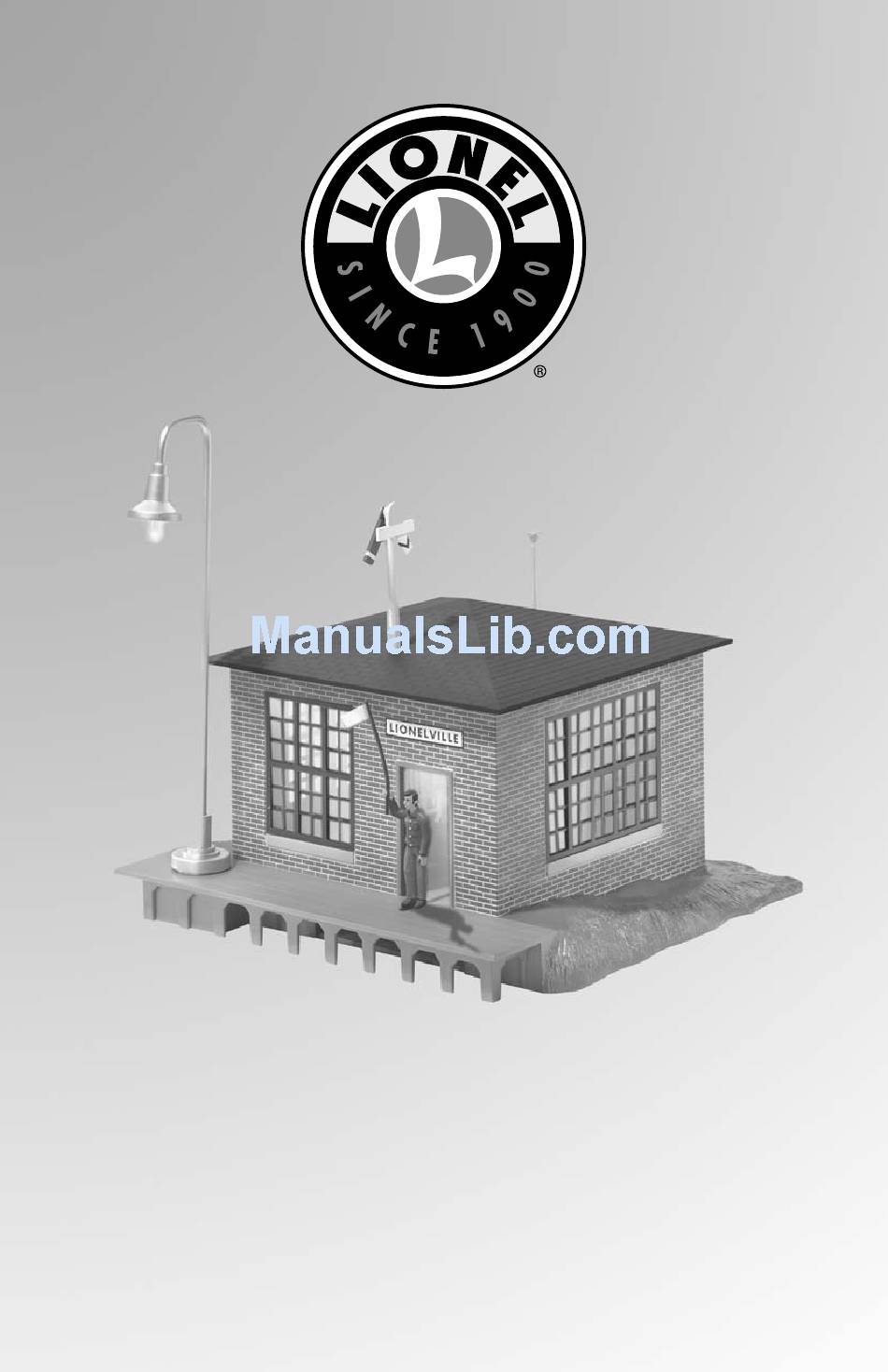

  • Page 1 71-4166-250 12/03 Lionel Train Orders Building Owner’s Manual...

  • Page 2: Table Of Contents

    Wiring the accessory with the 153IR Controller Replacing the interior lamp Replacing the lamppost lamp Limited Warranty/Lionel Service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel ® , TrainMaster ®...

  • Page 3: Installing The Accessory And The 153C Contactor

    Installing the accessory and the 153C Contactor lace the accessory along any straight section of track on your layout. Be sure that all of your trains clear the accessory. If you choose to trigger the accessory using the 153C Contactor, install the Contactor approximately 14 inches from the accessory in the direction of the train’s approach.

  • Page 4: Wiring The Accessory For Operation With The 153C Contactor

    Wiring the accessory for operation with the 153C Contactor our Train Orders Building accessory operates best at 12 to 18 volts (AC). Power the accessory through track power or using a separate accessory transformer. Refer to Figure 2. To make the proper connections, the ends of the wires should be stripped back 1/8” to 1/4”.

  • Page 5: Installing The Lamppost

    Installing the lamppost s illustrated in Figure 3, plug the two prongs on the bottom of the lamppost into the socket on the platform. Be sure that the prongs line up with the holes. The lamppost may be installed in either direction. Platform socket Figure 3.

  • Page 6: Wiring The Accessory With The 153Ir Controller

    Wiring the accessory with the 153IR Controller ou may choose to connect this accessory with a 153IR Controller (available separately, 6-14111) and a 12-volt DC Relay (SPDT, 1A Contact rating) with a Diode (IN4001, IN4002, IN4003, or IN4004) available from your electronics supply store. The trains trigger the 153IR Controller by reflecting an infrared beam, so it is not necessary to install a pressure-sensitive Contactor under the track.

  • Page 7: Replacing The Interior Lamp

    Replacing the interior lamp he interior of your accessory is illuminated by one lamp, Lionel part no. 610-4143-300. During the course of normal operations, this lamp may require replacement. Replacement lamps are available at your authorized Lionel Service Center or from Lionel Service in Chesterfield, MI.

  • Page 8: Limited Warranty/Lionel Service

    Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
