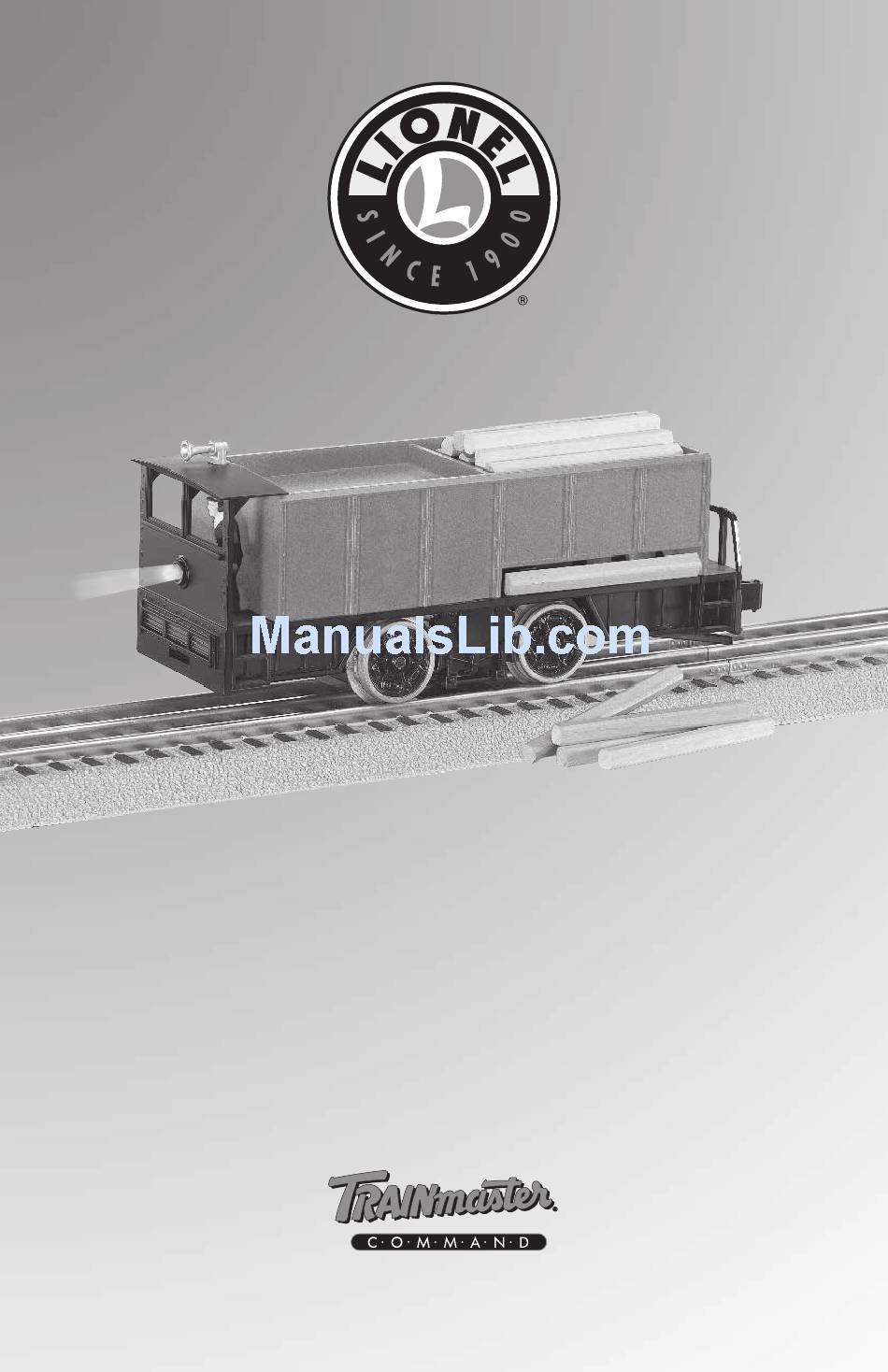

- Page 1 78-1444-250 11/15 Lionel Lionel TMCC Tie-Jector ® TMCC Tie-Jector ® Owner’s Manual Owner’s Manual...
- Page 2 Attaching the tie work car Maintenance and Service Servicing the headlight Replacing the traction tire Lubrication Lionel Warranty The following Lionel marks are used throughout this Owner’s Manual and are protected under law. All rights reserved. ® ® Lionel , LionChief...
- Page 3 Tie-jector is fully compatible with Lionel’s TMCC and LEGACY control systems. You can operate your TMCC Tie-jector with your TMCC Cab 1 or your LEGACY Cab-1L or Cab-2 controller. Your commands are sent by the remote controller to the Command Base, which sends a wire- less RF signal through the rails to your Tie-jector.
-
Page 4: The Legacy Cab-2 Remote Controller
Running your Tie-jector The LEGACY CAB-2 Remote Controller or operation using the CAB-2 remote, you must set the Tie-jector to either TMCC or CAB-1 mode. LEGACY mode will NOT operate your Tie-jector. Note! See page 7 for TMCC mode command buttons.. Note! Use with CAB-1 Mode. -
Page 5: Cab-1 Remote Controller Commands
Running your Tie-jector CAB-1 Remote Controller commands he CAB-1 Remote Controller commands are detailed below. Releases the ElectroCoupler on the rear of the Tie- jector Activates the numeric keypad. Toggles headlight on/off. Accelerates the Tie-jector with a clockwise rotation. Decelerates the Tie-jector with a counter- clockwise rotation. - Page 6 AC, may result in damage to sensitive electronic components. Note! Your Tie-jector requires Lionel or Lionel-compatible O-27 or larger track curves. Assigning your Tie-Jector a new ID# or operation in the LEGACY or Command Control environment, you will want to give your tie- jector a unique ID#.
- Page 7 AC, may result in damage to sensitive electronic components. Note! Your Tie-jector requires Lionel or Lionel-compatible O-27 or larger track curves. CAB Remote Controller numeric keypad commands hen you press the AUX1 button on your CAB-1, CAB-1L, or CAB-2 Remote Controller, you turn the numeric keypad into ten command buttons.
-
Page 8: Conventional Transformer Operations
1. With track power off, place your Tie-jector on the track. 2. Power up the track. If a circuit breaker trips when you turn on the Lionel power supply, check the wheels of your tie-jector to make sure they are all securely on the track. Check to make sure the track is free of all metals that may cause a short circuit. - Page 9 Your Tie-jector requires Lionel or Lionel-compatible O-27 or larger track curves. Using the Tie Work Car our TMCC Tie-jector is equipped with a working ElectroCoupler on the rear. The Tie-jector is powerful enough to pull one or two additional cars around your layout if you desire.
-
Page 10: Replacing The Traction Tire
Servicing the LED headlight our tie-jector's headlight is illuminated by an LED. The LED is expected to last for the life of the tie-jector and is not user serviceable. Contact Lionel Service if your LED needs replacing. Replacing the traction tire our Tie-jector is equipped with a single traction tire (Lionel part no. - Page 11 Maintaining and Servicing your Tie-jector Lubricating your Tie-jector elp your Lionel Tie-jector lead a long and productive life on your railroad by maintaining it prop- erly. To keep your tie-jector lubricated, we recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your authorized Lionel dealer.
- Page 12 Lionel LLC or any Lionel Authorized Service Station MUST be accompanied by the original receipt for purchase (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
