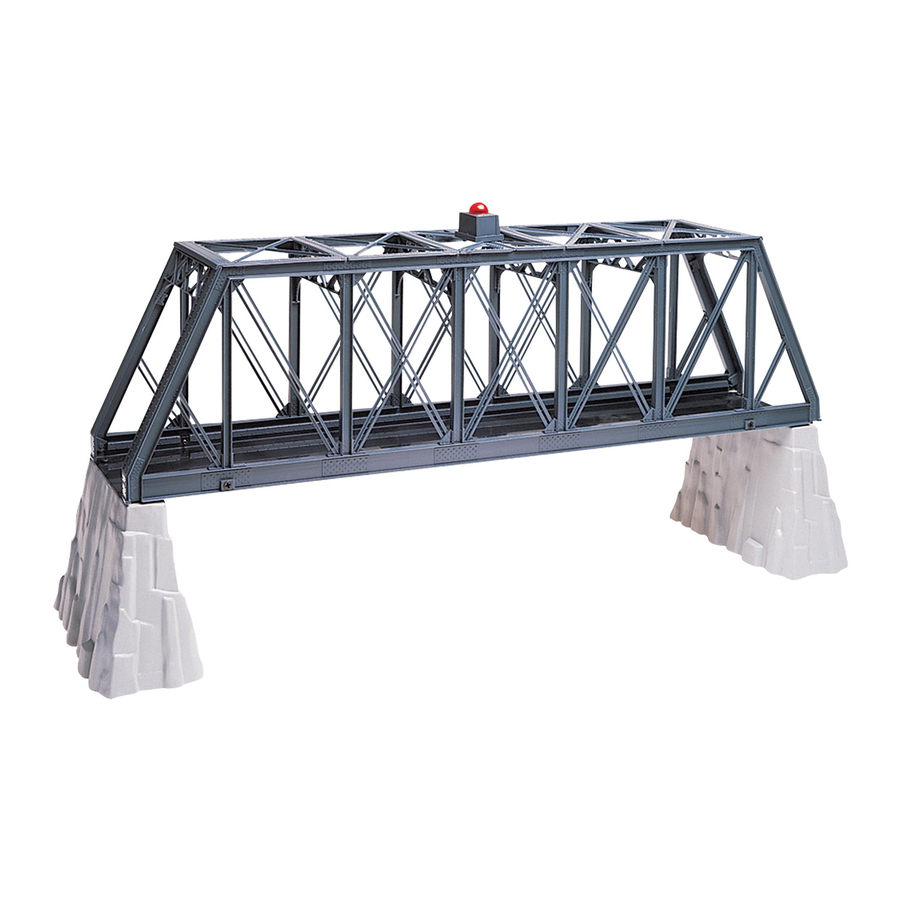

Lionel Truss Bridge with Flasher and Piers Owner's Manual
  1. Manuals
  2. Brands
  3. Lionel Manuals
  4. Toy
  5. Truss Bridge with Flasher and Piers
  6. Owner's manual

Lionel Truss Bridge with Flasher and Piers Owner's Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

71-2772-250
11/06
Lionel
Truss Bridge
with Flasher and Piers
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Truss Bridge with Flasher and Piers and is the answer not in the manual?

Questions and answers

Related Manuals for Lionel Truss Bridge with Flasher and Piers

Summary of Contents for Lionel Truss Bridge with Flasher and Piers

  • Page 1 71-2772-250 11/06 Lionel Truss Bridge with Flasher and Piers Owner’s Manual...
  • Page 2 Table of contents Assembling the Truss Bridge Powering the flasher Replacing the lamp Limited Warranty/Lionel Service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel ® , TrainMaster ®...
  • Page 3 Assembling the Truss Bridge Follow these steps to assemble the Truss Bridge. If you choose to permanently assemble the Truss Bridge, you may apply any cement Note! intended for use with plastic kits (not included). 1. As illustrated in Figure 1, fit the steel base into the slot on the inside of the side structures. Secure the base to the side structures using the flat-head screws, two on each side.
  • Page 4 3. As illustrated in Figure 3, slide the four support sections into the grooves in the side structures. Support sections Groove Figure 3. Installing the support sections 4. Snap the two top structures onto the pins on the side structures. Refer to Figure 4. Figure 4.
  • Page 5 5. Press the lamp housing tabs into the gap between the two top sections and feed the wires into the structure. Refer to Figure 5. Figure 5. Installing the lamp housing 6. After the wires are inserted through the top, route each wire through one of the support sections, down the side structures, and through the metal base as shown in Figure 6.
  • Page 6 8. Run your straight sections of FasTrack or traditional O or O-27 gauge track (available separately) across the bridge. You may choose to use a Lionel Elevated Trestle Set (available separately, 6-12755 for O and O-27 gauge layouts, 6-12038 for FasTrack layouts) or a Graduate Trestle Set (available separately, 6-12754 for O and O-27 gauge layouts, 6-12032 for FasTrack layouts) to bring the track to the Truss Bridge.
  • Page 7 Figure 8. Power connections Replacing the lamp our Truss Bridge is illuminated by one lamp with 12” wires already attached, Lionel part no. 610-2772-300. During the course of normal operations, this lamp may require replacement. Replacement lamps are available from your authorized Lionel Service Center or from Lionel Service in Chesterfield, MI.
  • Page 8 Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
