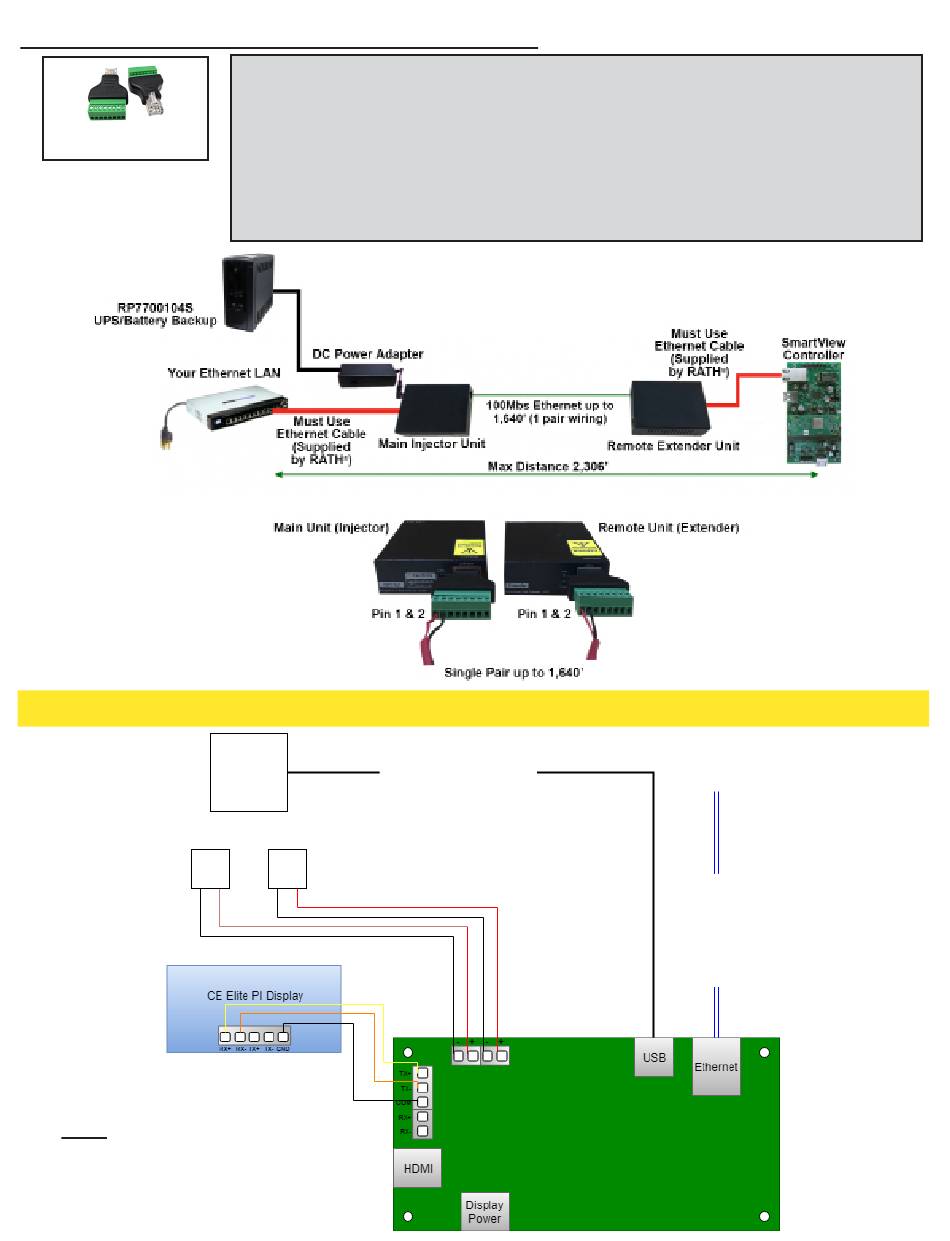

Wiring Example (Preferred Option for Standard Travel Cable):
RJ45 Adapters Included
with 2100-SVE
YES
Note: For use with the CE Elite Pi
Display, you must order the Display with
the proper software and also the correct
SmartView Controller part number.
• Extender Power: Supplies 1A to the SmartView Controller
• Extender Wiring:
• Extends up to 1,640 feet over single pair of wiring between Extenders (requires
single pair, 18-24ga, shielded or unshielded)
• Ethernet Patch Cable with RJ45 connectors required from network switch and the
SmartView Controller to each Extender
• Main Unit (Injector) has LAN/PoE (internet connection) and Interlink (two wire connection)
• Remote Unit (Extender) has Interlink (two wire connection from main unit) and LAN/PoE
(Ethernet connection to SmartView Controller
Interlink
Wiring to CE Elite Pi Display
SmartView
To SmartView Camera
Camera
NO
YES NO
SmartView Controller
(12V, 1A, or 24V 0.5A)
Interlink
To PoE+ Network Switch
or
Ethernet Extender
12vdc Supplied from
Switch or Extender
