IF PARTS ARE MISSING AND OR DEFECTIVE, IF INSTRUCTIONS ARE NOT CLEAR
OR IF YOU ARE EXPERIENCING PROBLEMS ASSEMBLING OUR PRODUCT.
BEFORE YOU RETURN THE PRODUCT TO THE STORE,
PLEASE CALL US TOLL FREE FOR CUSTOMER SERVICE ASSISTANCE
PLEASE HAVE ITEM NUMBER READY, AND A REPRESENTATIVE WILL GLADLY ASSIST YOU
SPARTAK ENTERPRISES, INC. 841 E. FRANCIS STR. ONTARIO, CA. 91761 TEL; 909/930-0670 FAX; 909/930-9921
Advertisement
Related Manuals for venture horizon 4121
Summary of Contents for venture horizon 4121

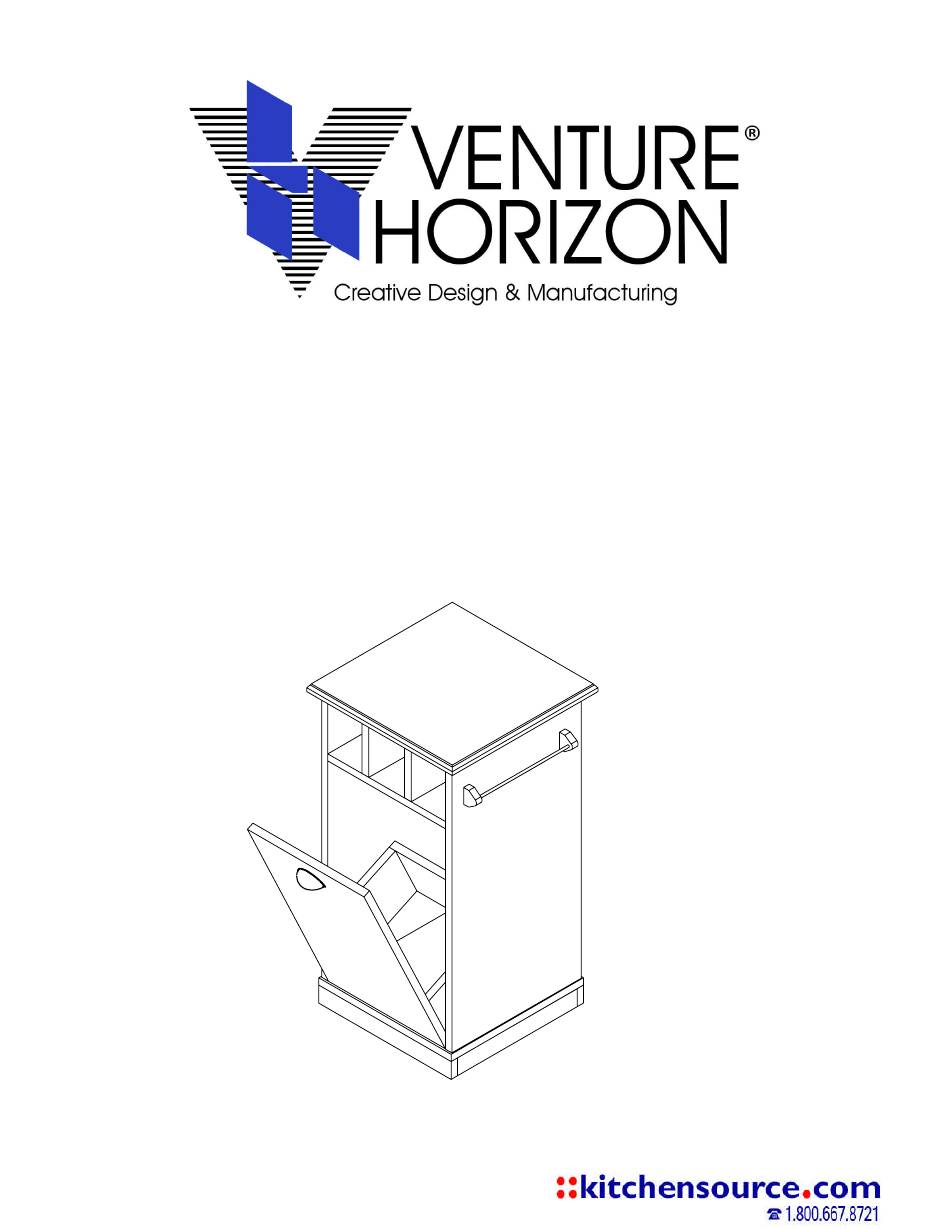

- Page 1 IF PARTS ARE MISSING AND OR DEFECTIVE, IF INSTRUCTIONS ARE NOT CLEAR OR IF YOU ARE EXPERIENCING PROBLEMS ASSEMBLING OUR PRODUCT. BEFORE YOU RETURN THE PRODUCT TO THE STORE, PLEASE CALL US TOLL FREE FOR CUSTOMER SERVICE ASSISTANCE PLEASE HAVE ITEM NUMBER READY, AND A REPRESENTATIVE WILL GLADLY ASSIST YOU SPARTAK ENTERPRISES, INC.
- Page 2 NOTE: FIRST MAKE SURE THAT YOU HAVE ALL OF THE PARTS LISTED ON THIS SHEET. IF YOU ARE MISSING ANY PIECE(S), DO NOT ASSEMBLE THE UNIT. INSTEAD, CALL OUR CUSTOMER SERVICE NUMBER AT: (800) 667-8721. WE WILL BE HAPPY TO ASSIST YOU. 4121A-Left End Panel (1 pc) 4120I-Top...
-
Page 3: Hardware List
HARDWARE LIST HARDWARE PART # DESCRITION WHEEL RUNNER SP632Z PAN HEAD SCREW CAMLT12 CAMLOCK CAMBT12 BOLT DOWW525 WOOD DOWEL SF812Z FLAT HEAD SCREW SFH845A WOOD SCREW SRM822B HANDLE SCREW CAS50 CASTER HIN356S HINGE PUSHWOSN SHELL METAL PULL TOWWD TOWEL BAR TOWPLWH PAPER TOWEL HOLDER GLUEWD... - Page 4 When first inserting camlocks, make sure they always point towards edge of board as indicated. UNLOCKED POSITION NOTE: Make sure the dowels go in as far possible, they should stick out no more than 3 8 of an inch. Use hammer to gently tap wood dowels in. Apply one drop of glue in each hole with the wood dowels.
- Page 5 Apply one drop of glue in each hole with the wood dowels. Make sure the dowels go in as far possible, they should stick out no more than 3/8 of an inch. Use hammer to gently tap wood dowels in. Attach the door handle onto the door (H), using the handle screws.
- Page 6 Press wood dowels in part (L,T,C) and attach it onto part (A). Apply one drop of glue in each hole with dowels in this step and everywhere you will use wood dowels. NOTE: Make sure the dowels go in Raw side part (L,T,C) as far possible, they should stick out no more than 3 8 of an inch.
- Page 7 Attach parts (C, N, L & T) onto part (B). You will need to insert the wood dowels in the corresponding holes on end panel (B). SP632Z SP812Z Attach paper towel holder onto part (T) using short wood Attach wooden towel holder onto end screws.
- Page 8 Apply one drop of glue in each small hole, then insert the wood dowel in the parts (K). Make sure the dowels go in as far possible, they should stick out no more than 3 8 of an inch. Attach parts (K) onto part (L). Finished Edge Press top on the assembly unit, make sure to leave no gaps in between...
- Page 9 With four long screws, attach part (M) onto parts (D), as shown below. CAMBT12 Finished Edge SFH845A Place part (H) onto the floor. Install assembly from previous step onto the door (H). Make sure part (F) is positioned as indicated. Tighten camlocks. When locked, arrow on camlock should point away from the edge as indicated.
- Page 10 With seven flat head screws, attach the hinge to the door (H). SF612Z With seven flat head screws, attach the hinge to the bottom shelf (F). SF612Z...
- Page 11 Turn the assembly unit upside down and attach assembly from step #14 onto it using six long wood screws. SFH845A Attach the skirts (G) and (S), as shown. Apply one drop of glue in each hole a insert wood dowels in the corresponding holes in base (E).
- Page 12 Attach the casters using small screws. SF612Z Stand the unit upright. Clean and dust off the unit and it's ready for use. To protect wood from cracking drying -out, resist stains and to give it nice warm finish coat it with butcher block oil (mineral oil). Apply a small amount to a dry surface.
