venture horizon 2641 Assembly Instructions Manual

Download this manual

SPARTAK ENTERPRISES, INC.

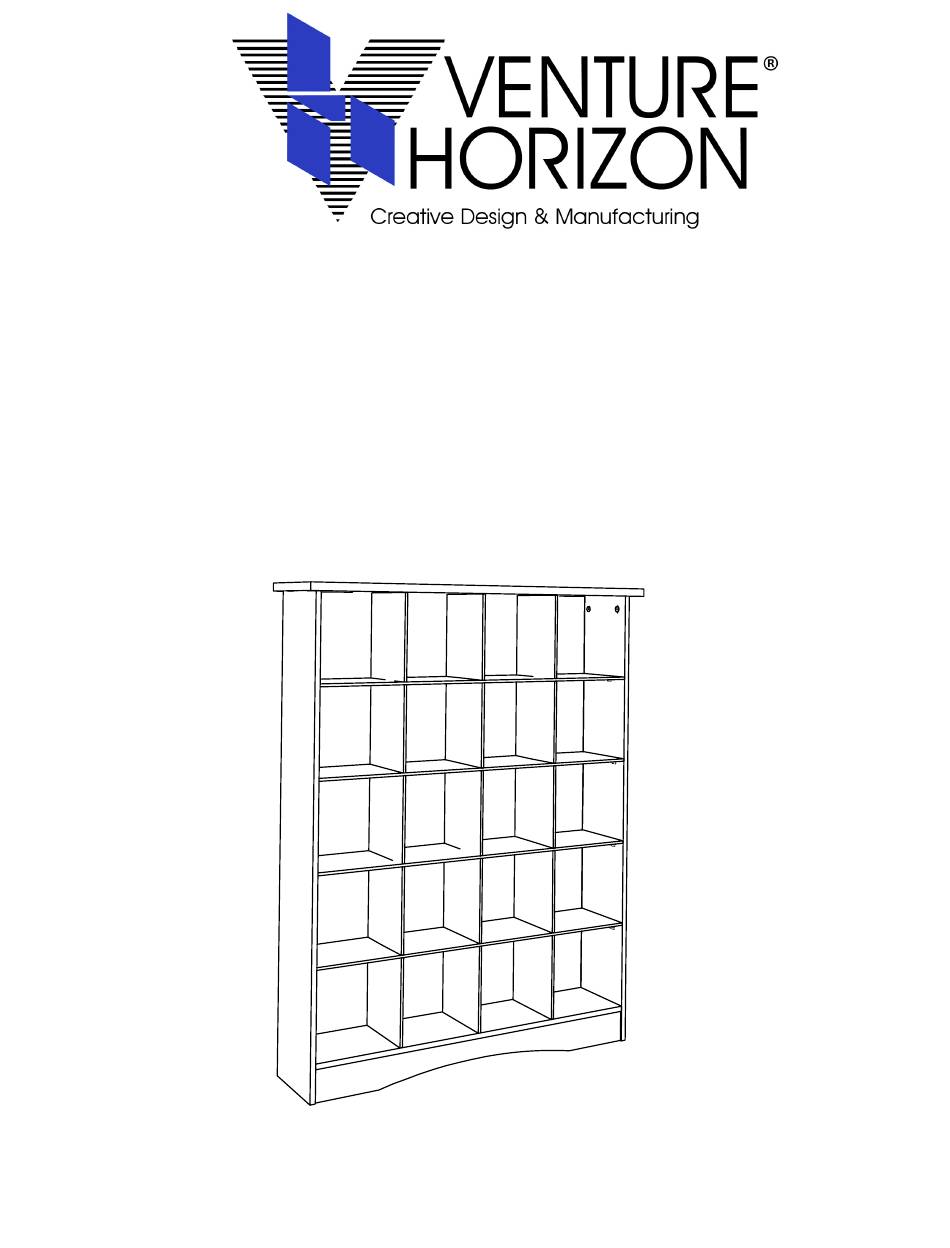

CUBBIE ORGANIZER

Model #2641-

LOT #

IF PARTS ARE MISSING AND OR DEFECTIVE, IF INSTRUCTIONS ARE NOT CLEAR

OR IF YOU ARE EXPERIENCING PROBLEMS ASSEMBLING OUR PRODUCT.

BEFORE YOU RETURN THE PRODUCT TO THE STORE,

PLEASE CALL US TOLL FREE FOR CUSTOMER SERVICE ASSISTANCE

(888) 777-8250

OR SEND US EMAIL AT

help@spartakent.com

PLEASE HAVE ITEM NUMBER READY, AND A REPRESENTATIVE WILL GLADLY ASSIST YOU

SPARTAK ENTERPRISES, INC. 841 E. FRANCIS STR. ONTARIO, CA. 91761 TEL; 909/930-0670 FAX; 909/930-9921

Page 1 SPARTAK ENTERPRISES, INC. CUBBIE ORGANIZER Model #2641- LOT # IF PARTS ARE MISSING AND OR DEFECTIVE, IF INSTRUCTIONS ARE NOT CLEAR OR IF YOU ARE EXPERIENCING PROBLEMS ASSEMBLING OUR PRODUCT. BEFORE YOU RETURN THE PRODUCT TO THE STORE, PLEASE CALL US TOLL FREE FOR CUSTOMER SERVICE ASSISTANCE...
Page 2 NOTE: FIRST MAKE SURE THAT YOU HAVE ALL OF THE PARTS LISTED ON THIS SHEET. IF YOU ARE MISSING ANY PIECE(S), DO NOT ASSEMBLE THE UNIT. INSTEAD, CALL OUR CUSTOMER SERVICE NUMBER AT: (888) 777-8250. WE WILL BE HAPPY TO ASSIST YOU. 2641A-Left Side 2641E-Skirt 3pcs...
Page 3 CAMBT12 Unlocked Position A & B Unlocked Position DOWW525 CAMBT12...
Page 4 UNFINISHED SIDE Turn camlocks clockwise until full stop on parts D and F (slightly over a turn to lock the bolt)
Page 6 Turn camlocks clockwise until full stop on parts A and B (slightly over a turn to lock the bolt) BPBL5...
Page 7 Turn the grid upside down to connect the middle dividers...
Page 8 Make sure all Plastic Shelf Support are sitting in straight and then insert the grid inside of cabinet with finished edges facing out. Should you have difficulty getting pass Plastic Shelf Supports -then just lift slightly ends of horizontal dividers G.
