SPARTAK ENTERPRISES, INC.

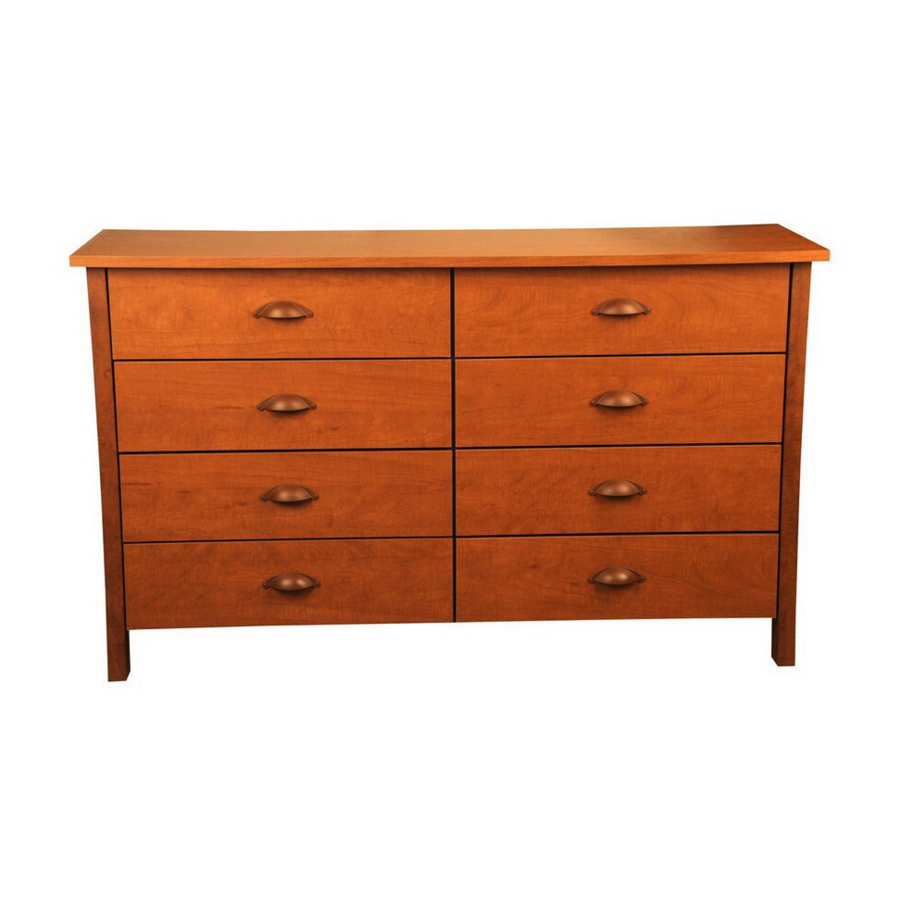

CHEST OF DRAWERS
Model #3117-21BL
LOT #2397
IF PARTS ARE MISSING AND OR DEFECTIVE, INSTRUCTIONS ARE NOT CLEAR
OR YOU ARE EXPERIENCING PROBLEMS ASSEMBLING OUR PRODUCT.
BEFORE YOU RETURN THE PRODUCT TO THE STORE,
PLEASE CALL US TOLL FREE FOR CUSTOMER SERVICE ASSISTANCE
(888) 777-8250
OR SEND US EMAIL AT
help@spartakent.com
PLEASE HAVE ITEM NUMBER READY, AND A REPRESENTATIVE WILL GLADLY ASSIST YOU
SPARTAK ENTERPRISES, INC. 841 E. FRANCIS STR. ONTARIO, CA. 91761 TEL; 909/930-0670 FAX; 909/930-9921
Advertisement
Related Manuals for venture horizon 3117
Summary of Contents for venture horizon 3117

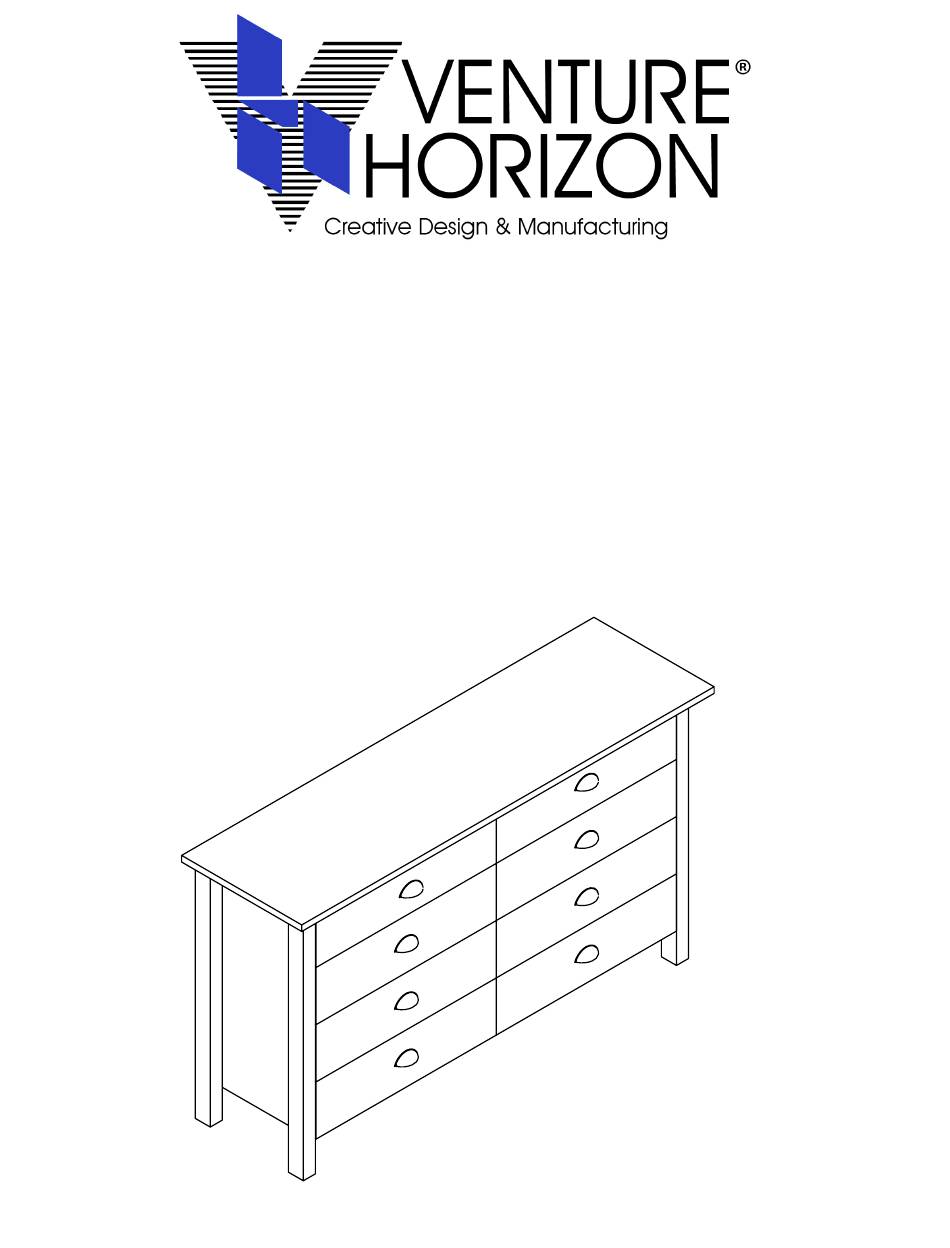

- Page 1 SPARTAK ENTERPRISES, INC. CHEST OF DRAWERS Model #3117-21BL LOT #2397 IF PARTS ARE MISSING AND OR DEFECTIVE, INSTRUCTIONS ARE NOT CLEAR OR YOU ARE EXPERIENCING PROBLEMS ASSEMBLING OUR PRODUCT. BEFORE YOU RETURN THE PRODUCT TO THE STORE, PLEASE CALL US TOLL FREE FOR CUSTOMER SERVICE ASSISTANCE...
-
Page 2: Parts Identification
PARTS IDENTIFICATION NOTE: FIRST MAKE SURE THAT YOU HAVE ALL OF THE PARTS LISTED ON THIS SHEET. IF YOU ARE MISSING ANY PIECE(S), DO NOT ASSEMBLE THE UNIT. INSTEAD, CALL CUSTOMER SERVICE NUMBER AT: (888) 777-8250. WE WILL BE HAPPY TO ASSIST YOU. 3117A-Side Panel Left 3027G-Drawer Right Side 8pcs 3117B-Side Panel Right... -
Page 3: Hardware List
HARDWARE LIST HARDWARE PART NUMBER DESCRIPTION CAMLT12 CAMLOCK CAMBT16 BOLT DOWW830 WOOD DOWEL GLIDE22MM GLIDE PUSH SHELL METAL PULL SRM815B MACHINE SCREW GLUEWD GLUE NAIL1734 NAIL SCF507HB CONFIRMAT SCREW SFH845A WOOD SCREW ALLEN4 HEX KEY BM25 ANGLE BRACKET SPE610BL EURO SCREW SC--S SCREW COVER CAP SP811BL... - Page 4 When first inserting camlocks, make sure they always point towards edge of board as indicated. SCF507HB UNLOCKED POSITION...
- Page 5 When first inserting camlocks, make sure they always point towards edge of board as indicated. CAMBT16 DOWW830 A&B Insert wood dowels by tapping onto them with a hammer. Make sure they go in as far as possible. Wood dowels should not stick out more than 1/2"...
- Page 6 When locked, arrow on camlock should point away from the edge as indicated. SFH845A Turn camlock clockwise to lock the bolt...
- Page 7 Handle the assembly with care to avoid damage of bottom part (K).
- Page 8 Turn camlock clockwise to lock the bolt Press down onto the Top to make sure wood dowels go in all the way and that there is no gap left between Sides and the Top.
- Page 9 NAIL1734 GLIDE22MM SP811BL Place the unit face down. Align the Back Panel (J) over the of the unit. Make sure the assembly is square and leave equal amount of margin all around. Secure the panel by screwing 6 screws through the pre-drilled holes for both panels (2 screws on both ends and 2 screws in the center).
- Page 10 SPE610BL BM25 Note: Once parts (F and G) have been attached to part (H) with the euro screws, a total of four each. Then slide in the bottom part of the drawer (Part I). SPE610BL...
- Page 11 Place (D) onto (in between) Drawer Sides (F) and (G). Repeat last steps for the rest of the drawers. Note: Attach part (D) with two screws on both sides (Parts F & G) a total of four screws as shown below. SFH833A SRM815B Note: Attach the handle with...
- Page 12 Note: Insert the drawers by following the diagram below. Start from the bottom and work your way up. This way you can have a clear view where to insert the next drawer.
