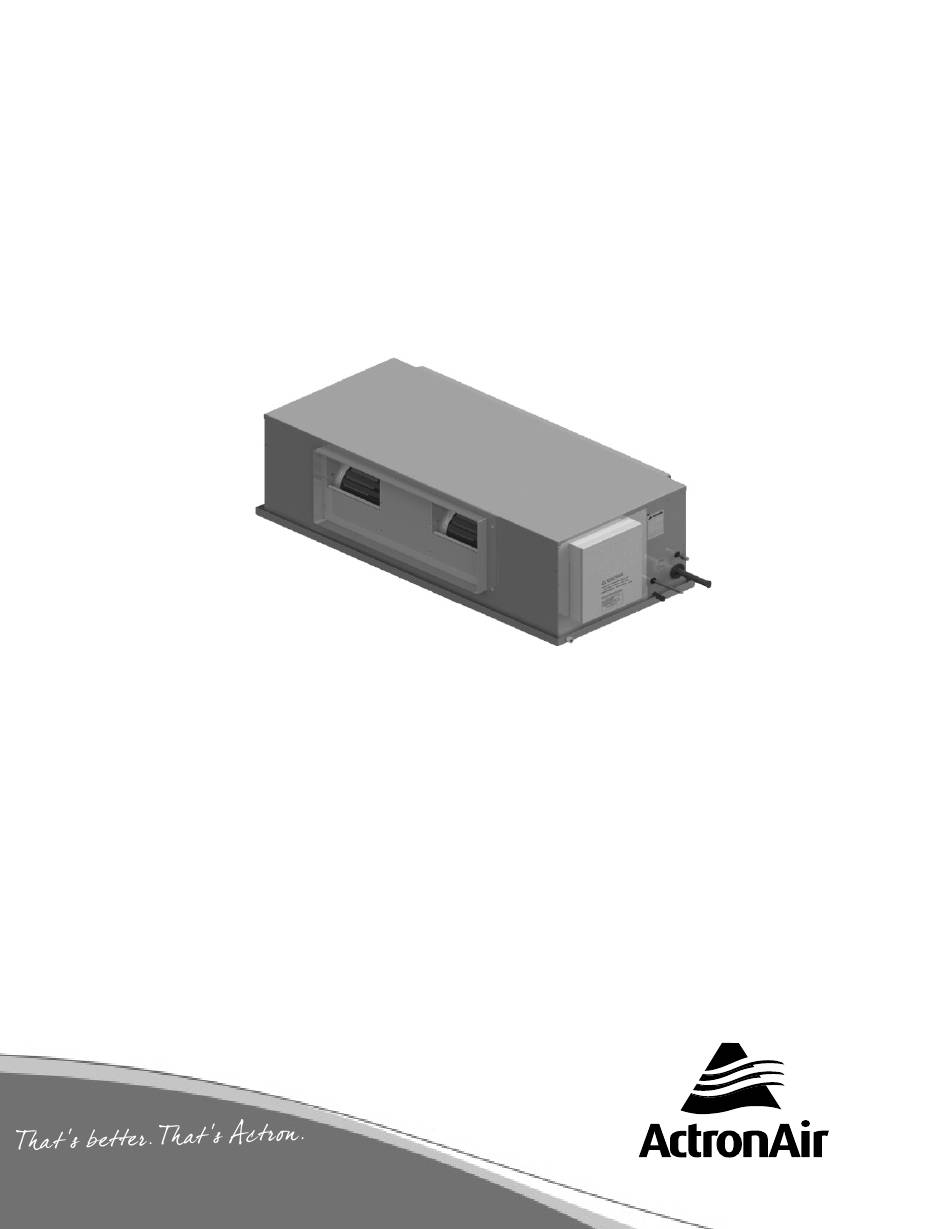

ADVANCE

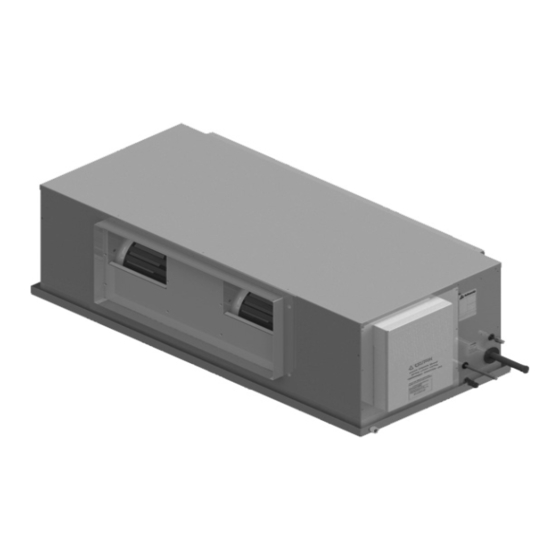

Split Ducted Unit
Installation and Commissioning Guide - Indoor
Model Numbers
Single Fan Coil
Split Fan Coil*
EVV140S
EAA140S & EFV140S
EVV160S
EAA160S & EFV160S
EVV180S
EAA180S & EFV180S
EVV210S
EAA210S & EFV210S
EVV240S
EAA240S & EFV240S
*Split Fan Coil has a separate coil and fan section.
IMPORTANT NOTE:
Please read this manual carefully before installing or operating your air conditioning unit.
Advertisement
Table of Contents
Related Manuals for ActronAir EVV140S
Summary of Contents for ActronAir EVV140S
- Page 1 ADVANCE Split Ducted Unit Installation and Commissioning Guide - Indoor Model Numbers Single Fan Coil Split Fan Coil* EVV140S EAA140S & EFV140S EVV160S EAA160S & EFV160S EVV180S EAA180S & EFV180S EVV210S EAA210S & EFV210S EVV240S EAA240S & EFV240S *Split Fan Coil has a separate coil and fan section.
-
Page 2: Table Of Contents
Table of Contents Introduction ������������������������������������������������������������������������������������������������������������������������������������3 Safety Instructions ��������������������������������������������������������������������������������������������������������������������������4 Components Overview ��������������������������������������������������������������������������������������������������������������������5 Indoor Unit Components Overview Indoor Unit Electrical Panel Overview Unit Dimensions and Clearances ������������������������������������������������������������������������������������������������������6 EVV140S / EVV160S EVV180S EVV210S/EVV240S Two-Piece Fan Coil ���������������������������������������������������������������������������������������������������������������������������9 Coil Section Fan Section Installation Instructions ����������������������������������������������������������������������������������������������������������������� 14 Airflow Application Guidelines ������������������������������������������������������������������������������������������������������... -
Page 3: Introduction
Check your air conditioning unit and all items against the invoice upon receiving your shipment. Inspect the unit, components and accessories for any sign of damage. If there is any damage to the unit, contact ActronAir Customer Care Department immediately on: 1300 522 722 to obtain a Goods Return Number. -
Page 4: Safety Instructions
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Safety Instructions • Only licensed HVAC technicians* should install and service air conditioning equipment. Improper service or alteration by an unqualifi ed technician could result in signifi cant and major damage to the product or property which may render your warranty null and void. -
Page 5: Components Overview
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Components Overview Indoor Unit Components Overview EC MOTOR COIL ELECTRICAL BOX COVER CONTROL PANEL Indoor Unit Electrical Panel Overview EMC FILTER TRANSFORMER (for some models) CONTROL BOARD... -
Page 6: Unit Dimensions And Clearances
800 mm 800 mm ID FAN ID FAN 3. Minimum service access clearances are responsibilities of the installer, ActronAir will not be held liable for any extra TOP VIEW HEIGHT CLEARANCE = 340mm charges incurred due to lack of access. -
Page 7: Evv180S
LEFT *RIGHT SERVICE 3. Minimum service access clearances are SERVICE CLEARANCE CLEARANCE responsibilities of the installer, ActronAir 800 mm 800 mm ID FAN ID FAN will not be held liable for any extra charges incurred due to lack of access. -
Page 8: Evv210S/Evv240S
LEFT *RIGHT 3. Minimum service access clearances are SERVICE SERVICE CLEARANCE CLEARANCE responsibilities of the installer, ActronAir 890 mm 890 mm ID FAN ID FAN will not be held liable for any extra charges incurred due to lack of access. -
Page 9: Two-Piece Fan Coil
3. Minimum service access clearances are SERVICE SERVICE COIL SECTION CLEARANCE CLEARANCE responsibilities of the installer, ActronAir 800 MM 800 MM will not be held liable for any extra charges incurred due to lack of access. DUCT WORK * Electrical box and/or TOP VIEW •... - Page 10 1000mm between the units or between the unit and the outside perimeter is available. 3. Minimum service access clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access.
- Page 11 1000mm between the units or between the unit and the outside perimeter is available. 3. Minimum service access clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access.
-
Page 12: Fan Section
REAR VIEW - RETURN AIR perimeter is available. 3. Minimum service access clearances are MINIMUM SERVICE ACCESS AREAS AND AIRFLOW CLEARANCES responsibilities of the installer, ActronAir DUCT WORK will not be held liable for any extra HEIGHT CLEARANCE = 340mm charges incurred due to lack of access. - Page 13 3. Minimum service access clearances are MINIMUM SERVICE ACCESS AREAS AND AIRFLOW CLEARANCES responsibilities of the installer, ActronAir DUCT WORK will not be held liable for any extra HEIGHT CLEARANCE = 410mm charges incurred due to lack of access.
-
Page 14: Installation Instructions
Compliance and consultation with the authorities having jurisdiction with the installation of this equipment is the responsibility of the installer. ActronAir will not be held liable for any damages or costs as a result of the installer’s failure to comply. Please refer to the matching outdoor unit Installation and Commissioning Guide for further information and details. - Page 15 Split Fan Coil System (Optional) The ActronAir innovative 2-piece fan coil system provides a solution to your difficult and tight roof space installation requirement. This versatile system has a separate fan and coil sections. Each of the compact and lightweight section is simply installed in two separate locations and joined by flexible duct system.
-
Page 16: Airflow Application Guidelines
Installation and Commissioning Guide Airflow Application Guidelines ActronAir Advance systems are designed with a self-learning function to sense the installation zoning of a system to deliver the required balanced airflow. The following are some recommendations to make this system work to its optimum design. -
Page 17: Return Air Grille Sizes
Air Grille Sizes Air Grille Sizes (For nominal air Air Flow (L/s) Flow (L/s) (free area) (free area) flow) EVV140S / EFV140S 0.26 m 0.36 m 540 x 640 =0.35 m EVV160S / EFV160S 0.30m 0.36m 540 x 740 = 0.40m EVV180S / EFV180S 0.36m... -
Page 18: Unit Lifting Procedures
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Unit Lifting Procedures WARNING WH&S regulations must be observed and will take precedence during lifting process. Do not use pipes or tube coming out from the unit to lift the unit. Crane Lifting Method DANGER Make sure rigging equipment, accessories and plant are sufficiently and safely capable to lift the unit in order to prevent... -
Page 19: Fork Lift Method
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Procedure: 1. Slip nylon slings through the pallet as shown in Figure 1. 2. Use Bow or Dee shackle to connect the slings. 3. -
Page 20: Pallet Dimensions
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Pallet Dimensions PALLET FORK LIFTING HOLE DIMENSIONS ALL DIMENSIONS IN MM. EVV140-180S EVV210-240S Installation and Commissioning Guide - Split Ducted Indoor Unit Doc. -
Page 21: Safety Drain Tray
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Safety Drain Tray NOTES • Support drain line for long pipe run. • Refer to unit dimension page for specification of drain connectors. •... -
Page 22: Zone Barrel Installation Instructions
(positions that range from 9 o’clock to 3 o’clock), as shown below: It is also recommended that only ActronAir 24V zones be connected to this system using RJ45 cable connections. Warranty may be void if third party zones cause damage to the system. -
Page 23: Electrical Installation
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Electrical Installation All electrical work must be carried out by a qualified technician. Make sure all wiring is in accordance with local wiring rules. -
Page 24: Wiring Diagram
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Wiring Diagram Variation Code: Variation: Base VARIOUS Model No: Description: INDOOR BOARD + 8 ZONE WITH 3 WALL CONTROLLERS Drawn: Revision Size: Date:... -
Page 25: Electrical Connection
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Electrical Connection NOTES • To minimise noise interference, Data and Power cable clearance should be maintained as much as possible. •... -
Page 26: Data Cable Shielding Instructions
Split Ducted Units Installation and Commissioning Guide Data Cable Shielding Instructions 2 Core Twisted (ActronAir Part Number: AEDC2) NOTES • Maintain the twist of the core wires up to the Green Terminal Plug. • Maximum strip length of outer insulation to the Green Terminal Plug is 50mm. -
Page 27: Circuit Breaker Size And Cable Size Requirement
THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Circuit Breaker Size and Cable Size Requirement Circuit Breaker Size Cable Size * (mm²) Model Amps MAIN O�D� to I�D� CRV140S/EVV140S 25.0 CRV160S/EVV160S 32.0 CRV180S/EVV180S CRV160T/EVV160S 20.0 CRV180T/EVV180S CRV210T/EVV210S 25.0... -
Page 28: Wall Controller Options
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Wall Controller Options Wall Controller Options Maximum of three (3) wall controllers in below combinations is allowed on unit. See below table. Wall Controllers Options 1st Option... -
Page 29: Wiring Configuration : Recommended
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Wiring Confi guration : Recommended NOTES • Diagram shown below is a general representation only. Refer to individual unit wiring diagram for complete wiring connection details. -
Page 30: Wiring Configuration : Alternate
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Wiring Confi guration : Alternate NOTES • Diagram shown below is a general representation only. Refer to individual unit wiring diagram for complete wiring connection details. -
Page 31: Cable Length - Zoning
1 to 4 (Optional 4 Zones Piggy-Back Confi guration), if 1 to 3 is 75m, then 3 to 4 must be 25m to make a total of 100m. *** Recommended maximum cable length, providing total of preceding cable connections are only 5m. ^ Total Cumulative length of all the aggregate cable must not exceed 500 meters. Consult ActronAir for longer cable length requirement. -
Page 32: Wiring Connections
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Wiring Connections LR7-1 and LC7-2 Wall Control Wiring Connections INDOOR WALL CONTROL WIRING CONTROL BOARD POWER: - BROWN / ORANGE 485 A: - BLUE WALL CONTROLLER... -
Page 33: Lm-Rs-2 Optional Sensor Wiring Connections
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide LM-RS-2 Optional Sensor Wiring Connections INDOOR CONTROL REMOTE SENSOR WIRING BOARD PAIR 1: - BLUE / BLUE-WHITE PAIR 2: - ORANGE / ORANGE-WHITE TEMP PAIR 3: - GREEN / GREEN-WHITE SENSORS... -
Page 34: Indoor Commissioning Guide
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Indoor Commissioning Guide Before activating the self-learn mode, ensure the following: 1. System should be in the OFF mode. 2. Ensure all connected zones are able to be turned on. If a connected zone cannot be opened, refer to Troubleshooting guide for more information. -
Page 35: Zone Commissioning
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Zone Commissioning When the unit is powered on, zone detection will automatically start. This will take 2 minutes to complete. A zone detection can also be manually triggered on the LR7-1/LC7-2 controller by pressing the ON/OFF button and Zone 1 button for 3 seconds. -
Page 36: Maintenance Frequency Checklist
PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide Maintenance Frequency Checklist Regular servicing of equipment by a qualified technician is recommended every 12 months for residential applications and every quarter for commercial applications. - Page 37 PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide ....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 38 PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide ....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 39 PRELIMINARY DATA ONLY Ver. 3.03 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Split Ducted Units Installation and Commissioning Guide ....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 40 ©Copyright 2022 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. ActronAir is constantly seeking ways to improve the design of its products. Therefore, specifi cations are subject to change without notice. Installation and Commissioning Guide - Advance Split Ducted Outdoor Unit...
