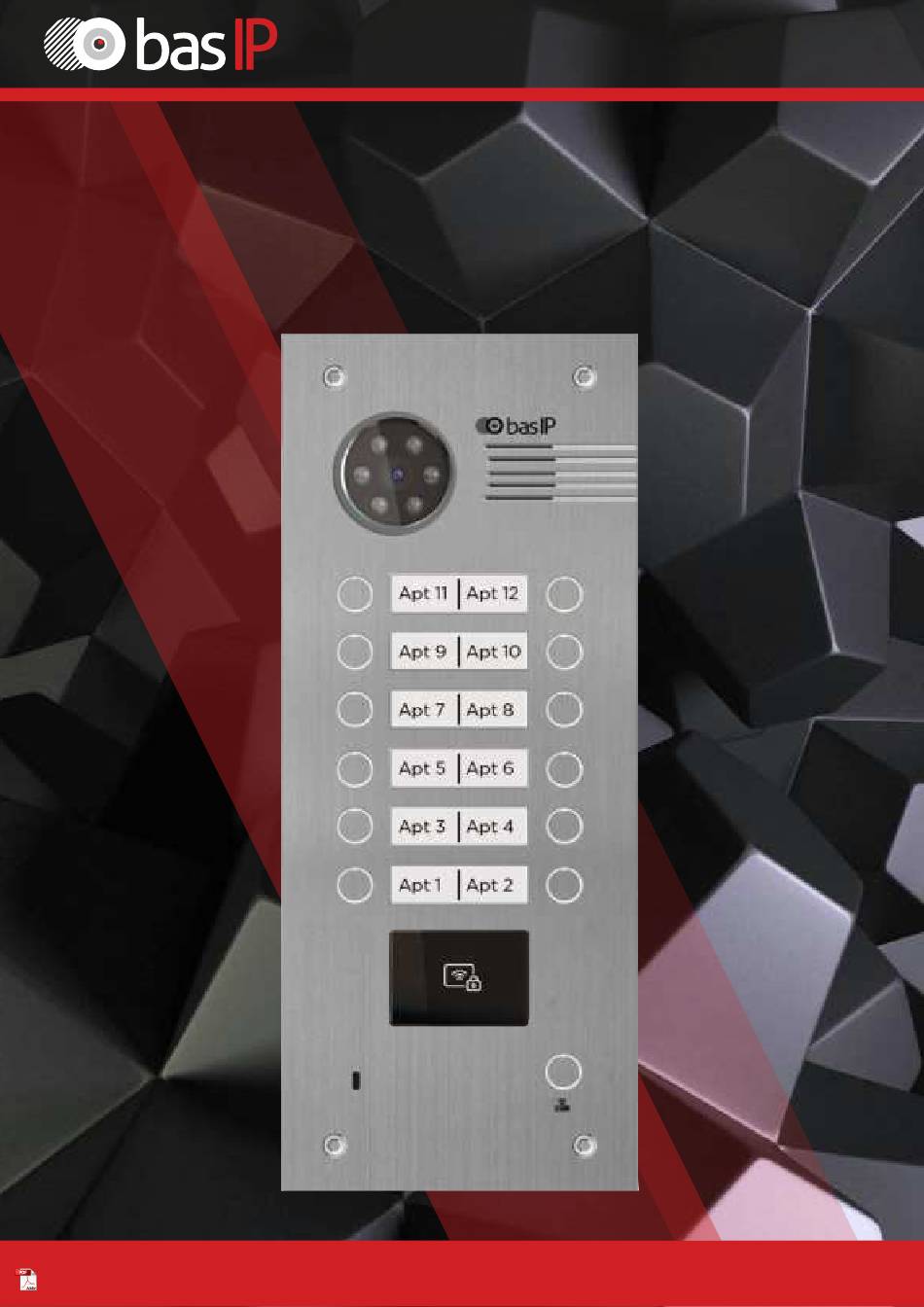

- Page 1 USER MANUAL BА-12BD ENTRANCE PANEL...

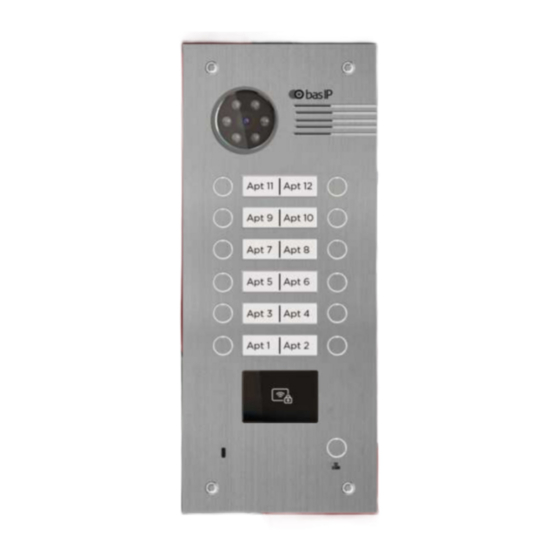

- Page 2 Device description BAS-IP BA-12BD is 12-button panel incorporating cutting-edge technical features and stunning design. The BA-12BD supports contactless cards, the new BAS-IP UKEY application, as well as has a built-in camera, which provides video output in 720p. resolution. This panel is exceptionally durable, for its protection class is IP65.
- Page 3 EAN: 5060514914526 (SILVER) Completness check of the product Before installation of the outdoor panel, it is necessary to check that it is complete and all components are available. Outdoor panel kit includes: Outdoor panel 1 pc Flush mount bracket 1 pc Manual 1 pc Set of wires with connectors for connection of power supply,...
- Page 4 Mechanical mounting Before installation of the outdoor panel it is necessary to provide a hole or a recess into a wall with dimensions 142×352×61 mm (for flush mount) dimensions of the bracket (mounting box) = 140×350×60 mm. It is also necessary to provide supply of a power cable, additional modules and the local network.
- Page 5 EAN: 5060514914526 (SILVER) Warranty The warranty card number Model name Serial number Seller name With following stated terms of warranty is familiar, functional test was performed in my presence: Customer signature Warranty conditions The warranty period of the product — 36 (thirty-six) months from the date of sale.
- Page 6 Notes...
- Page 7 EAN: 5060514914526 (SILVER) Notes...
- Page 8 www.bas-ip.com...
