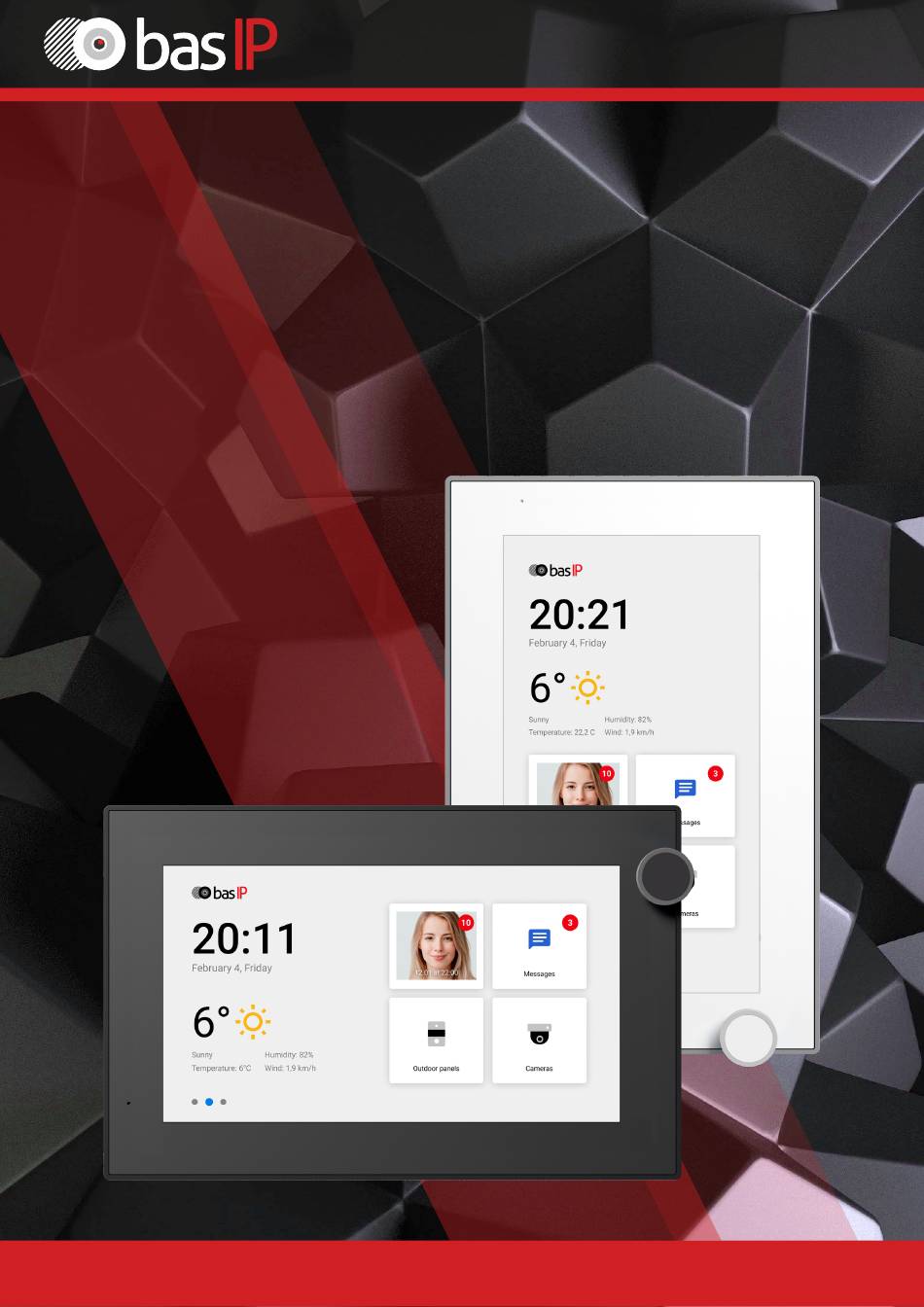

- Page 1 USER MANUAL AZ-07L IP INDOOR VIDEO ENTRY PHONE...
-
Page 2: Main Features

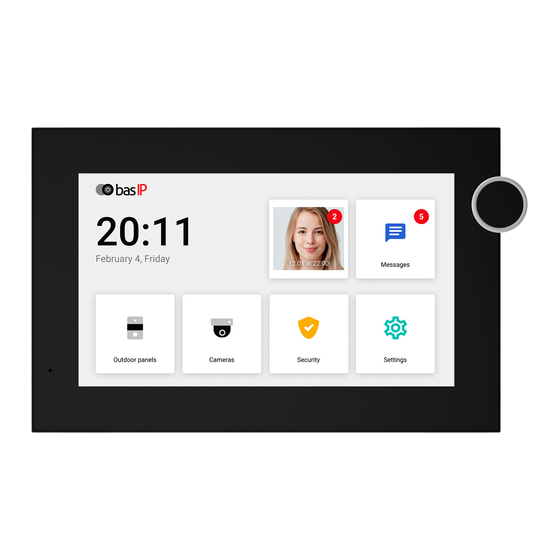

• Body: Plastic. • Installation Type: Wall mount. • Mounting options: Horizontal and vertical. IP INDOOR VIDEO ENTRY PHONE AZ-07L Full User Manual wiki.bas-ip.com Device description 7” IP video indoor monitor with overhead horizontal and vertical mounting options, the ability to control the lift, display messages from the management company, PoE, connection of 32 cameras, memory for photos / videos and an autoresponder. -
Page 3: Electrical Connection
EAN: 5060514915301 (BLACK) EAN: 5060514915332 (WHITE) Completness check of the product Before installing the monitor, be sure to check that it is complete and all components are available. The monitor kit includes: Monitor 1 pc Wall mounting bracket 1 pc Manual 1 pc Set of wires with connectors for connection of alarm loops, doorbell... - Page 4 Power supply 12V, 2A Switch Supply Power supply for external load External relay 12 Volt, current consumption less than 0.35A K1.1 Powerful external load with a current consumption of more than 0.35A Using the siren output as a controlled output, to control devices or any other external load with high current consumption...
- Page 5 EAN: 5060514915301 (BLACK) EAN: 5060514915332 (WHITE) Power supply 12V, 2A Switch Supply +12V 485+ Lock 485- +12V Expansion module Universal button Bell button SH-16 SH-47T normal Lock Lock +12V +12V +12V Button SH-45 Button SH-45T Bell button SH-46T Wiring diagram using various types of buttons connected to alarm loops, and using them as a «Call Button»...
- Page 6 Power supply 12V, 2A Switch Supply Siren 0,35A Wiring diagram for security alarm sensors with NC - normally closed contact types...
- Page 7 EAN: 5060514915301 (BLACK) EAN: 5060514915332 (WHITE)
-
Page 8: Vertical Mounting
Appearance and mechanical mounting Before installation of a monitor, it is necessary to drill a hole or a recess into a wall with a 68 mm (2.68in) diameter under the standard mounting box for a 65x45 mm (2.56x2.13in) socket. It is necessary for switching of wires and installation of the monitor. -
Page 9: Warranty Conditions
EAN: 5060514915301 (BLACK) EAN: 5060514915332 (WHITE) Warranty The warranty card number Model name Serial number Seller name With following stated terms of warranty is familiar, functional test was performed in my presence: Customer signature Warranty conditions The warranty period of the product — 36 (thirty-six) months from the date of sale. - Page 10 Notes...
- Page 11 EAN: 5060514915301 (BLACK) EAN: 5060514915332 (WHITE) Notes...
- Page 12 www.bas-ip.com...
