Summary of Contents for basIP AA-07BD
- Page 1 USER MANUAL AA-07BD ENTRANCE PANEL...

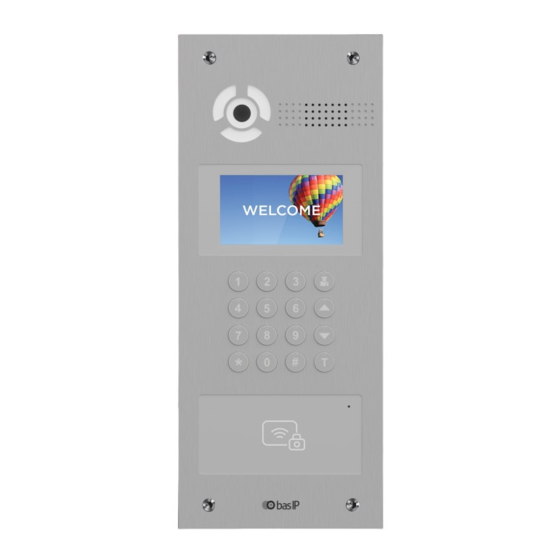

- Page 2 Full User Manual wiki.bas-ip.com Device description AA-07BD SILVER multi apartment panel is an excellent solution for office buildings, apartment complexes and cottage communities. A distinctive feature of this panel is a color TFT screen with backlight, as well as a high-resolution IP camera with wide viewing angles.
- Page 3 EAN: 5060514914328 (SILVER) Completeness check of the product Before installation of the outdoor panel, it is necessary to check that it is complete and all components are available. Outdoor panel kit includes: Outdoor panel 1 pc Flush mount bracket 1 pc Manual 1 pc Set of wires with connectors for connection of power supply,...
- Page 4 Electromagnetic Lock +12V LAN (PoE) +12V +12V Wiegand Out Supply / Relay Outputs RS485 / Exit Button / Door Sensor +12V 485+ 485- EXIT Connection scheme of electromagnetic lock SH-42 +12V (optional) using third-party power supply Door Sensor SH-45 Exit Button Electromechanical lock +12V...
- Page 5 EAN: 5060514914328 (SILVER) Mechanical mounting Before installation of the outdoor panel it is necessary to provide a hole or a recess into a wall with dimensions 143×353x61 mm (for flush mount) dimensions of the bracket (mounting box) = 141×351×60 mm. It is also necessary to provide supply of a power cable, additional modules and the local network.
- Page 6 Warranty The warranty card number Model name Serial number Seller name With following stated terms of warranty is familiar, functional test was performed in my presence: Customer signature Warranty conditions The warranty period of the product — 36 (thirty-six) months from the date of sale.
- Page 7 EAN: 5060514914328 (SILVER) Notes...
- Page 8 www.bas-ip.com...
