- Page 1 USER MANUAL AZ-07LL IP INDOOR VIDEO ENTRY PHONE...
-
Page 2: Main Features

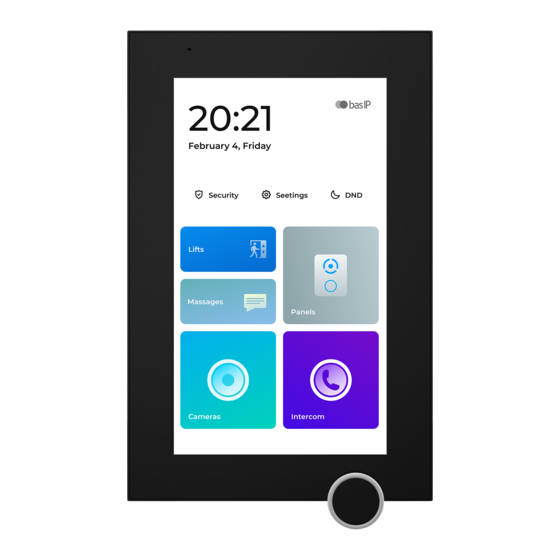

• Body: Plastic. • Installation Type: Wall mount. • Mounting options: Horizontal and vertical. IP INDOOR VIDEO ENTRY PHONE AZ-07LL Full User Manual wiki.bas-ip.com Device description 7” IP video indoor monitor with overhead horizontal and vertical mounting options, the ability to control the lift, display messages from the management company, PoE, connection of 8 cameras, memory for photos/videos and an autoresponder. -
Page 3: Electrical Connection
EAN: 5060514915233 (BLACK) EAN: 5060514915264 (WHITE) Completness check of the product Before installing the monitor, be sure to check that it is complete and all components are available. The monitor kit includes: Monitor 1 pc Wall mounting bracket 1 pc Manual 1 pc Set of wires with connectors for connection of alarm loops, doorbell... - Page 4 Power supply 12V, 2A Switch Supply Power supply for external load External relay 12 Volt, current consumption less than 0.35A K1.1 Powerful external load with a current consumption of more than 0.35A Using the siren output as a controlled output, to control devices or any other external load with high current consumption...
- Page 5 EAN: 5060514915233 (BLACK) EAN: 5060514915264 (WHITE) Power supply 12V, 2A Switch Supply +12V 485+ Lock 485- +12V Expansion module Universal button Bell button SH-16 SH-47T normal Lock Lock +12V +12V +12V Button SH-45 Button SH-45T Bell button SH-46T Wiring diagram using various types of buttons connected to alarm loops, and using them as a «Call Button»...
- Page 6 Power supply 12V, 2A Switch Supply Siren 0,35A Wiring diagram for security alarm sensors with NC - normally closed contact types...
- Page 7 EAN: 5060514915233 (BLACK) EAN: 5060514915264 (WHITE)
-
Page 8: Vertical Mounting
Appearance and mechanical mounting Before installation of a monitor, it is necessary to drill a hole or a recess into a wall with a 68 mm (2.68in) diameter under the standard mounting box for a 65x45 mm (2.56x2.13in) socket. It is necessary for switching of wires and installation of the monitor. -
Page 9: Warranty Conditions
EAN: 5060514915233 (BLACK) EAN: 5060514915264 (WHITE) Warranty The warranty card number Model name Serial number Seller name With following stated terms of warranty is familiar, functional test was performed in my presence: Customer signature Warranty conditions The warranty period of the product — 36 (thirty-six) months from the date of sale. - Page 10 Notes...
- Page 11 EAN: 5060514915233 (BLACK) EAN: 5060514915264 (WHITE) Notes...
- Page 12 www.bas-ip.com...
