Summary of Contents for basIP AQ-07LL

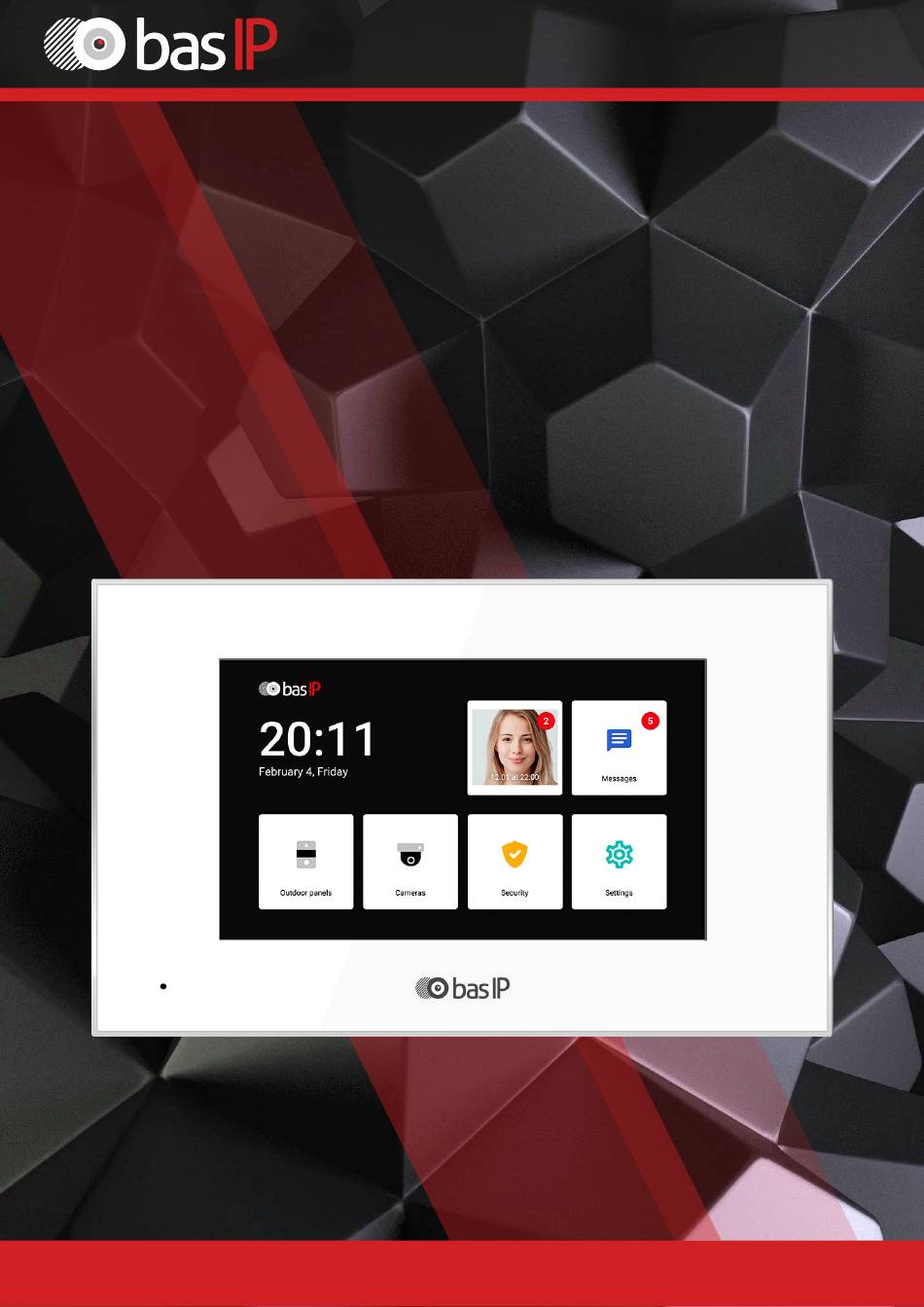

- Page 1 USER MANUAL AQ-07LL IP INDOOR VIDEO ENTRY PHONE...
- Page 2 Full User Manual wiki.bas-ip.com Device description The BAS-IP AQ-07LL IP video intercom indoor monitor is designed with a 7-inch stylish TFT touch-screen colour display and plastic case. The intercom can be powered from 12V or PoE, and the classic black and white body color will suit any interior style.
- Page 3 EAN: 5060514914007 (BLACK) EAN: 5060514913994 (WHITE) Completness check of the product Before installing the monitor, be sure to check that it is complete and all components are available. The monitor kit includes: Monitor 1 pc Wall mounting bracket 1 pc Manual 1 pc Set of wires with connectors for connection of alarm loops, doorbell...
- Page 4 Mechanical mounting Before installation of a monitor, it is necessary to drill a hole or a recess into a wall with a 68 mm (2.68in) diameter under the standard mounting box for a 65x45 mm (2.56x2.13in) socket. It is necessary for switching of wires and installation of the monitor.
- Page 5 EAN: 5060514914007 (BLACK) EAN: 5060514913994 (WHITE) Warranty The warranty card number Model name Serial number Seller name With following stated terms of warranty is familiar, functional test was performed in my presence: Customer signature Warranty conditions The warranty period of the product — 36 (thirty-six) months from the date of sale.
- Page 6 Notes...
- Page 7 EAN: 5060514914007 (BLACK) EAN: 5060514913994 (WHITE) Notes...
- Page 8 www.bas-ip.com...
