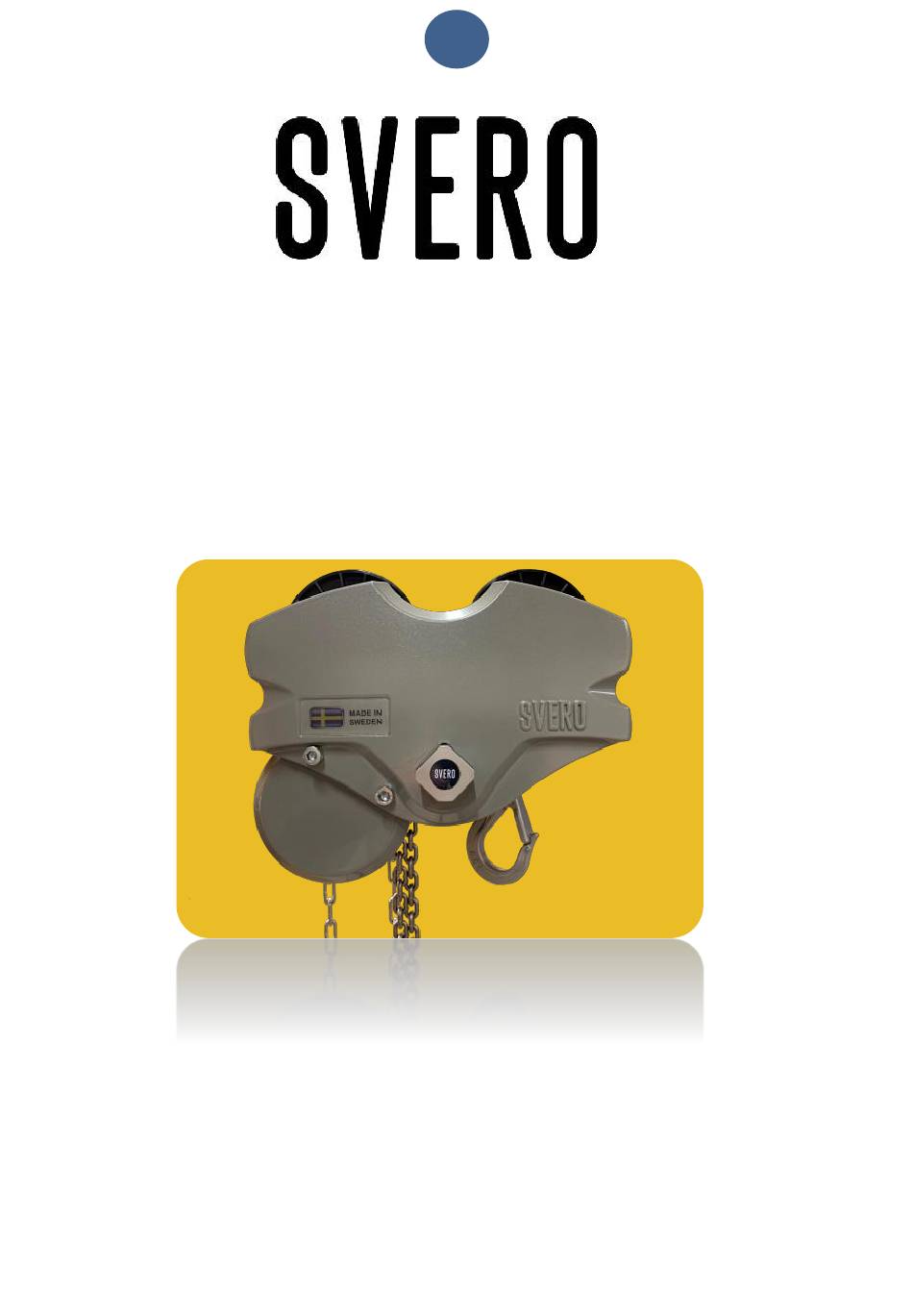

- Page 1 SVERO Smart Hoist 22 500 kg Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com T: +46 (0) 36 31 65 70...
- Page 2 It is especially well suited for cramped spaces. Description Svero's Smart Hoist 22 is mostly made of aluminum (side-plates, suspension bolt, holder, covers and chain hoist casing) and hard impact resistant fiberglass reinforced plastic (wheels), and is therefore very lightweight.
- Page 3 Dimension D₁ Ø mm Dimension D₂ Ø mm Dimension E mm Dimension Fmin mm Dimension G mm Dimension H mm Dimension I mm Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com T: +46 (0) 36 31 65 70...
- Page 4 Description Side-plate 1 with hoisting unit Side-plate 2 with cover Suspention bolt 500 kgs Holder with external guide wheel Wheel with ballbearing Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com T: +46 (0) 36 31 65 70...
- Page 5 1 below. Spacers and screws are supplied in marked plastic kit-bags, one for each beam width, together with Allen keys. Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com T: +46 (0) 36 31 65 70...
- Page 6 In this way, the conical holes automatically will face down (Pic. 3). Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com T: +46 (0) 36 31 65 70...
- Page 7 (Pic. 9). Fasten the stop screw lightly with a 4 mm Allen key (Pic. 10). Pic. 9 Aligning the Holder with the center of the hoisting unit. Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com T: +46 (0) 36 31 65 70...
- Page 8 1 - 2 mm on each side. Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com T: +46 (0) 36 31 65 70...
- Page 9 Otherwise add looking fluid. Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com T: +46 (0) 36 31 65 70...
- Page 10 • Only hand power from a single person is permitted on the hand chain. If the chain feels too heavy, use a hoist with higher capacity or reduce the load. Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com...
- Page 11 Combined lifts must therefore be supervised by a competent person with experience in this type of lift. Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com T: +46 (0) 36 31 65 70...
- Page 12 (A max) has been exposed to overloading or overheating. It therefore does not have the necessary load capacity. The hooks may also have been exposed to long-term wear (dimension B). Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com T: +46 (0) 36 31 65 70...
- Page 13 Check measurements of suspect links. Measure the worn areas. Also, every 300 mm (normally), check measurements of the internal length of 5 links (pitch dimension 5xP – according to Table 4). Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com T: +46 (0) 36 31 65 70...
- Page 14 1 - 2 mm on each side. If this is not the case, adjustment must be made, see sections 5-7 under Mounting. Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com T: +46 (0) 36 31 65 70...
-
Page 15: Eu Declaration Of Conformity
Smart Hoist has been overloaded and must be replaced. A higher capacity Smart Hoist may then be required. Repairs Only replace damaged parts with SVERO original spare parts. See Fig. 2. EU DECLARATION OF CONFORMITY Manufacturer: Svero Lifting AB Momarken 19, 556 50 Jönköping, Sweden... - Page 16 No cracks Rust Visual No rust Screws Screws, nuts, rivets, cotters Visual Must not be missing. Tighten loose items. etc. Replace as necessary Svero Lifting AB | Momarken 19, 556 50 Jönköping, Sweden www.svero.com T: +46 (0) 36 31 65 70...
