How to Connect a C-Nav3050 to C-Setup /
C-Monitor / C-Scape.
One of the Virtual Ports will need to be configured to allow a connection. The
'Configure Port button' is used to configure any of the 4 virtual Ethernet ports.

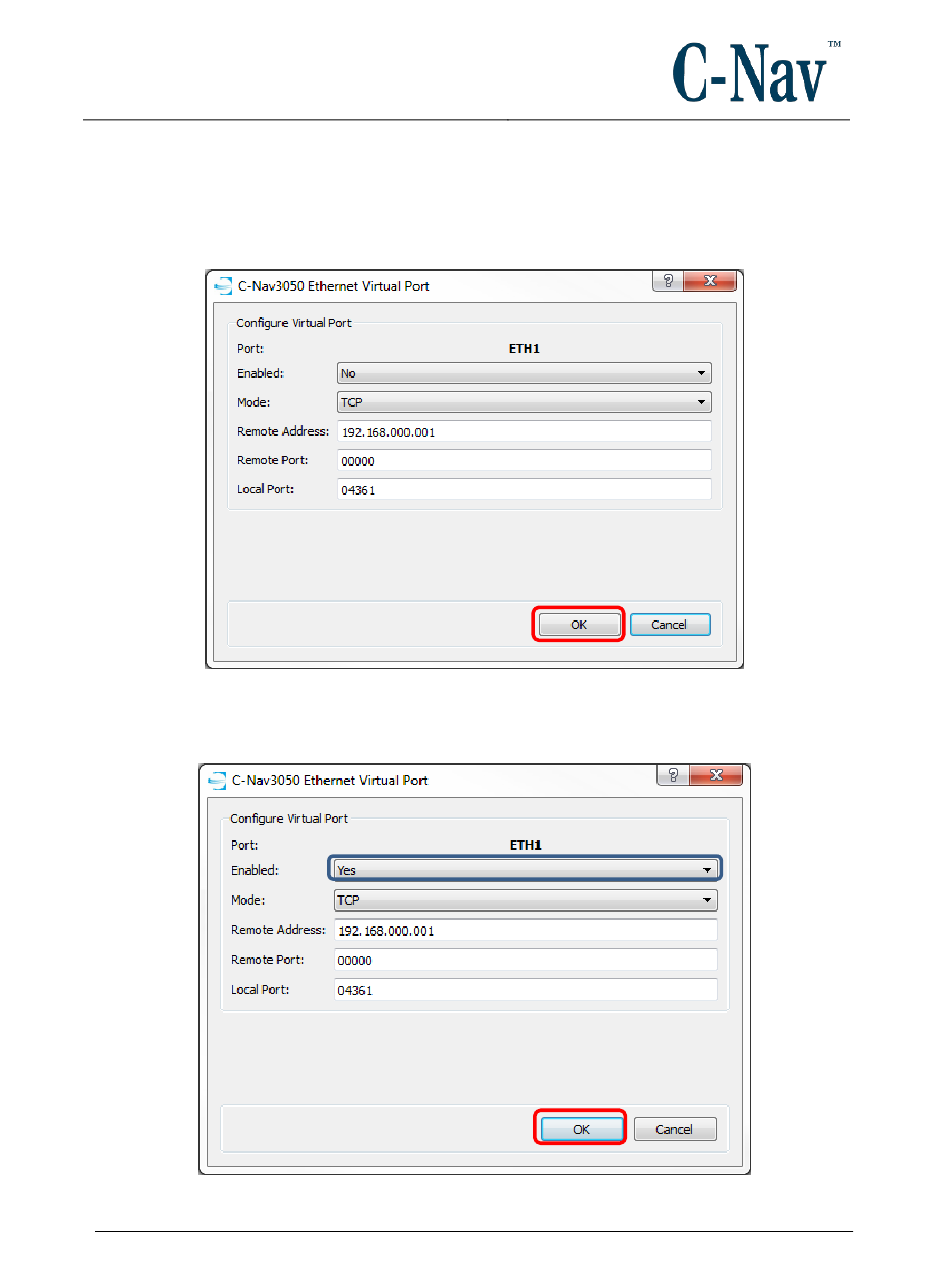

3. Copy the settings in the below screenshot then press OK.
4. Following this re-enter the ETH1 configuration and toggle Enabled to 'Yes'
and press OK.
Revision 3
Page 23 of 42
5/5/2017
