How to Connect a C-Nav3050 to C-Setup /
C-Monitor / C-Scape.

Section 3 - USB Connection

For a C-Nav3050® to be recognized by a PC, it is necessary to install a USB
driver. Using the latest control software this should be handled automatically. If
there are any issues then the driver can be sourced from the installation folder for
C-Setup / C-Monitor:
If it is the first time a connection has been attempted via USB for this receiver, it
may be necessary to set the USB Mode settings on the receiver prior to
attempting a USB connection. This will need to be done via an available serial
connection. Please refer to Section 2 - Serial Connection (Page 8) for
instructions on how to establish a serial connection to the device.

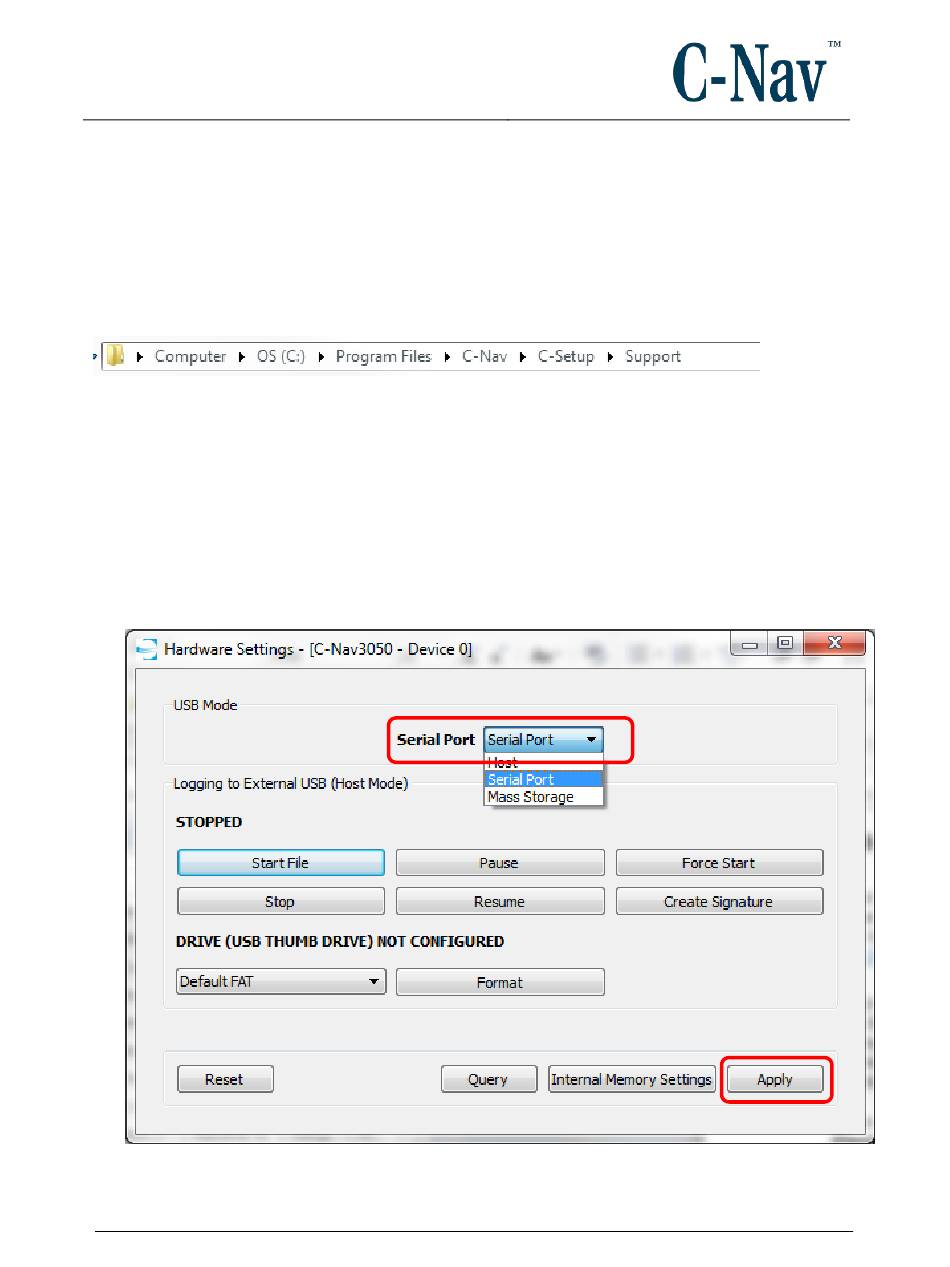

1. Once a connection is established, navigate to:
[Device / Hardware Settings]
Ensure USB Mode is set to "Serial Port" then press Apply.
Revision 3 Page 13 of 42 5/5/2017
