PowerMeter AND MIDcounter INSTALLATION
If the PowerMeter is installed together with the MIDcounter, they must be connected as shown
in the diagram below.
Eletrical panel
Eletrical panel
RS485 Port CN12
MIDcounter
Wallbox
RS485 Port CN12
MIDcounter
Wallbox
Utility Meter
PowerMeter
Utility Meter
PowerMeter
Loads
Loads

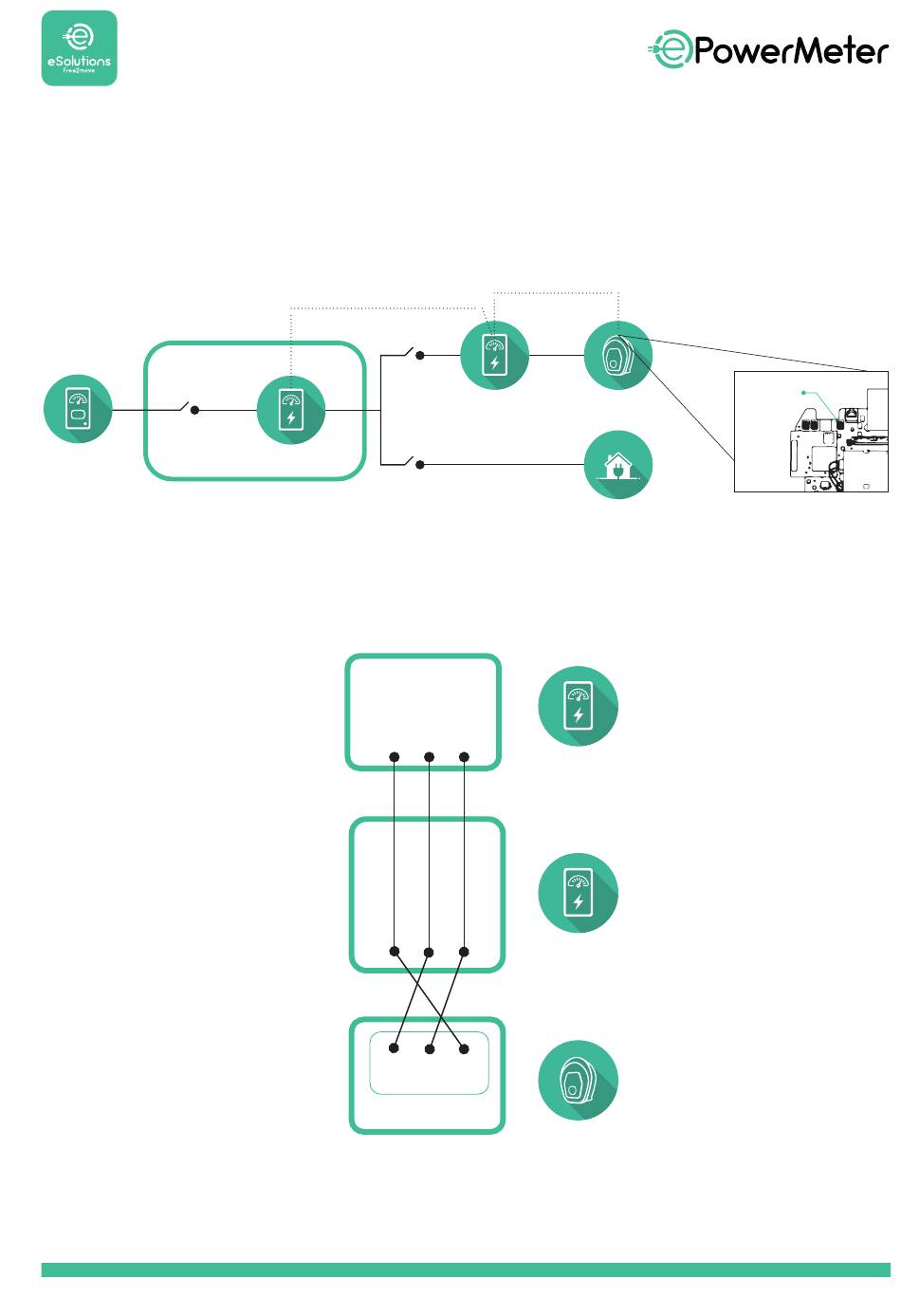

Both devices must be connected on the same communication bus. Connect the Modbus
communication cables as follows:
A SC B
PowerMeter
A SC B
PowerMeter
A SC B
MIDcounter
A SC B
MIDcounter
GND B
A
CN12 Port
Wallbox
GND B
A
CN12 Port
Wallbox
