Avid Technology KeyRig 25 Testing

Title

KeyRig 25 Testing Procedure

1.0 Scope

This procedure defines the method required to test:

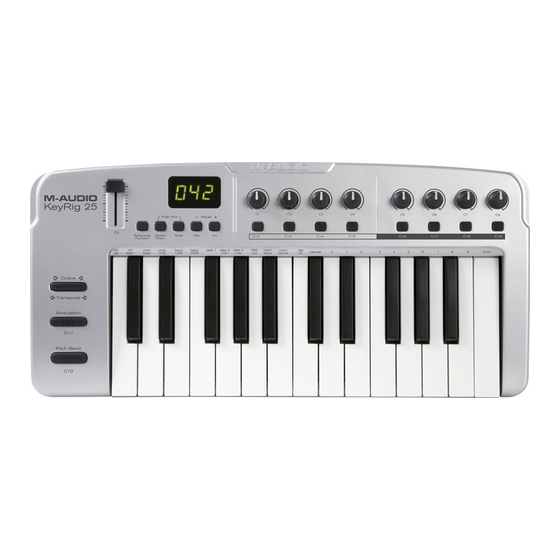

• 9900-52477-00 KeyRig 25

2.1 M-Audio Dealer Check in sheet

2.2 M-Audio Scrap log

2.3 M-Audio RTV Log

3.1 Software (Midi OX)

3.2 Midi cable x2

3.3 Oxygen 8v2

3.4 MIDISPORT 2x2

3.5 SP-2 sustain pedal

4.1 The KeyRig 25 needs to be in the "like new" state: all buttons

released, in the up position, all knobs turned to the left, and the

product turned OFF.

4.2 The KeyRig 25 is OFF.

UNCONTROLLED DOCUMENT when printed or copied

Form: 0150-30027-01 Rev C

Procedure P/N

Revision:

Date Printed: 3/16/2010

PROCEDURE

1069-65018-00

Page 1 of 4

Table of Contents

Do you have a question about the KeyRig 25 and is the answer not in the manual?

Page 1 3.4 MIDISPORT 2x2 3.5 SP-2 sustain pedal 4.0 Process Description 4.1 The KeyRig 25 needs to be in the “like new” state: all buttons released, in the up position, all knobs turned to the left, and the product turned OFF.
Page 2 Revision: 4.3 The computer is ON. 4.4 Connect the KeyRig 25 to the computer with a USB cable. 4.5 Press and hold the Recall – and + buttons beneath the LCD screen while powering on the unit to reset the KeyRig 25.
Page 3 4.19 Test each button below the LCD screen – check for a response in the LCD screen display. 4.20 On the computer, close MIDI OX. 4.21 Unplug the USB cable. 4.22 Turn off the KeyRig 25. 5.0 Revision History Created/ Change Description...
Page 4 PROCEDURE Title Procedure P/N KeyRig 25 Testing Procedure 1069-65018-00 Page 4 of 4 Revision: UNCONTROLLED DOCUMENT when printed or copied Date Printed: 3/16/2010 Form: 0150-30027-01 Rev C...
