Harrod CRK-059 Assembly Instructions

Free standing cricket single bay premier aluminium portable cricket cage

Advertisement

Quick Links

Code:
CRK-059
Product:
Free Standing Cricket Single Bay
Assembly time for two persons, approx 2 hours
1. M51-6 (167BM) Kee-Clamp Double Male x 2
2. M50-6 (173BM) Kee-Clamp Single Male x 4
3. 25-6 (104B) Kee-Clamps Long Tee x 2
4. 35-6 (176B) Kee-Clamps Side Outlet Tee x 2
5. 15-6 (125B) Kee-Clamp 90 Elbow x 2
6. 20-6 (128B) Kee-Clamp 3 Way 90 Elbow x 6
7. M52-6 (168BM) Kee-Clamp 90 corner male x 2 (KCL201)
8. M10 Wingnut BZP x 12
IMPORTANT: PLEASE READ THE
A S S E M B LY I N S T R U C T I O N S
CAREFULLY BEFORE STARTING TO
ASSEMBLE YOUR CRICKET CAGE.
Diagonal Brace
Fixing Start
Point.
Pack Contents:
.
(KCL202)
(KCL203)
(KCL-116)
(KCL-113)
(KCL-120)
(KCL-118)
(BOL203)

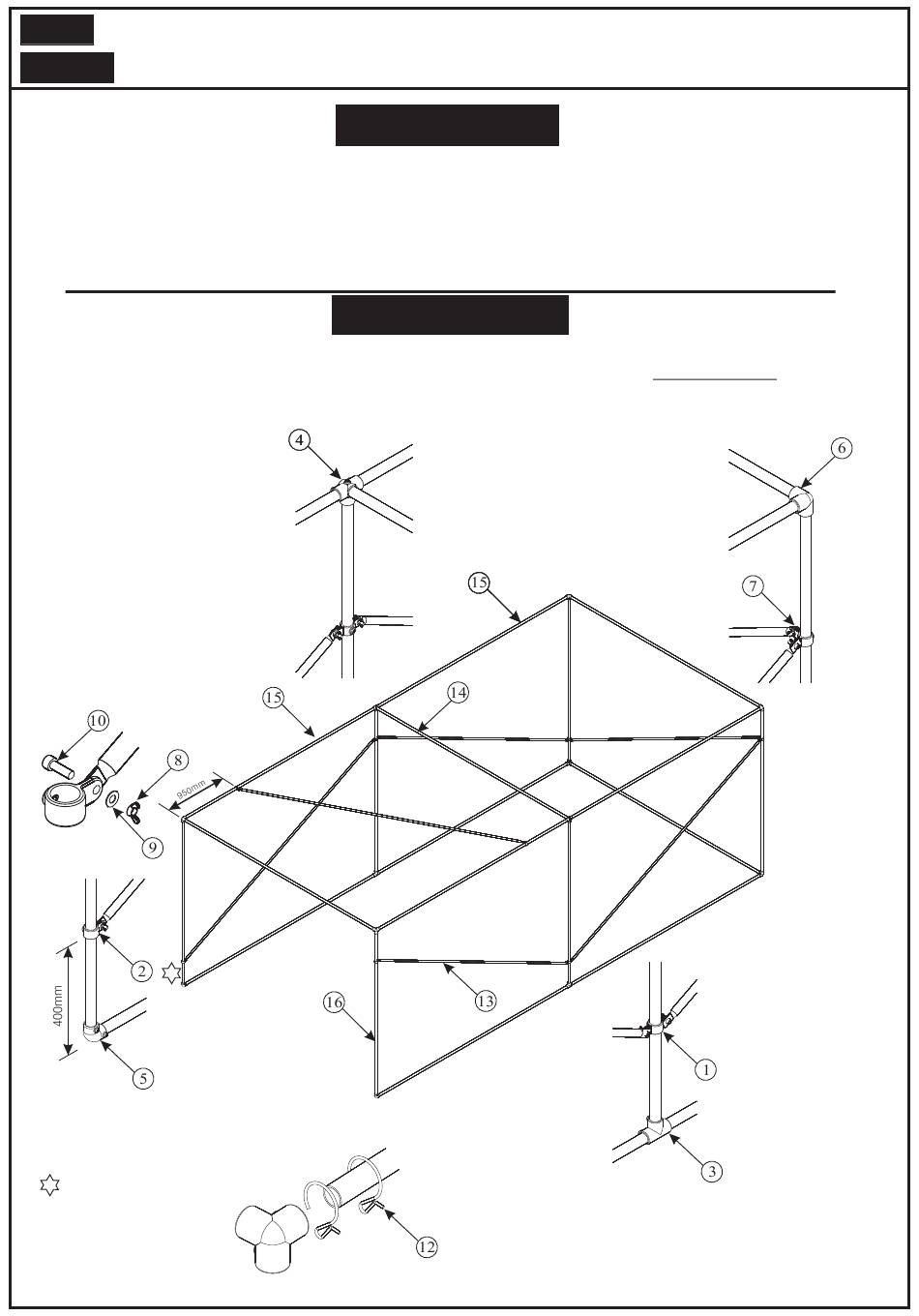

View of Product
Fig 1.
9. Washer Spring 10mm S/Steel x 12
10. M10 x 30 Cap Screw BZP x 12
11. 1/4" Allen Key x 1
12. Hanging Hooks x 70
13. 4000mm Diagonal Brace x 6
14. 3660mm Centre Rail x 1
15. 3581mm Rail x 6
16. 2667mm Upright x 6
Approx Hook Allocation.
5 per top rail.
3 per upright.
3 per bottom rail.
©
Harrod UK Limited
(BOL713)
(BOL333)
(BOL792)
(HKS059)
(SPE583)
(PEQ161)
(PEQ160)
(PEQ159)
Tools Required:
1 x Spirit Level
2 x High Ladders
INS515
22/03/07

Advertisement

loading
Need help?

Need help?

Do you have a question about the CRK-059 and is the answer not in the manual?

Questions and answers

Summary of Contents for Harrod CRK-059

  • Page 1 INS515 Code: CRK-059 22/03/07 © Harrod UK Limited Product: Free Standing Cricket Single Bay Pack Contents: Assembly time for two persons, approx 2 hours 1. M51-6 (167BM) Kee-Clamp Double Male x 2 (KCL202) 9. Washer Spring 10mm S/Steel x 12 (BOL713) 2.
  • Page 2 Code: CRK-155 Product: Premier Aluminium Portable Cricket Cage. Assembly Instructions Using the pack contents list on previous page, identify the parts required for the assembly of this cricket cage. Read all the instructions through first to familiarize yourself with the best order of assembly and remember the key points.
