Arteor
TM
•
Universal dimmer with neutral
5740 08/58 - 5743 08/58
•
•
5740 08
•
•
5743 08
•
White
•
Magnesium
•
5740 58
+
+
-
-
White
•
Magnesium
•
5743 58
•
Description
•
•
Product configuration
micro-switch:
- Default setting
- Description page 5
•
•
Setting of minimum and maxi-
mum thresholds for compact
fluorescent loads
•
Advertisement
Related Manuals for LEGRAND Arteor 5740 08/58
Summary of Contents for LEGRAND Arteor 5740 08/58

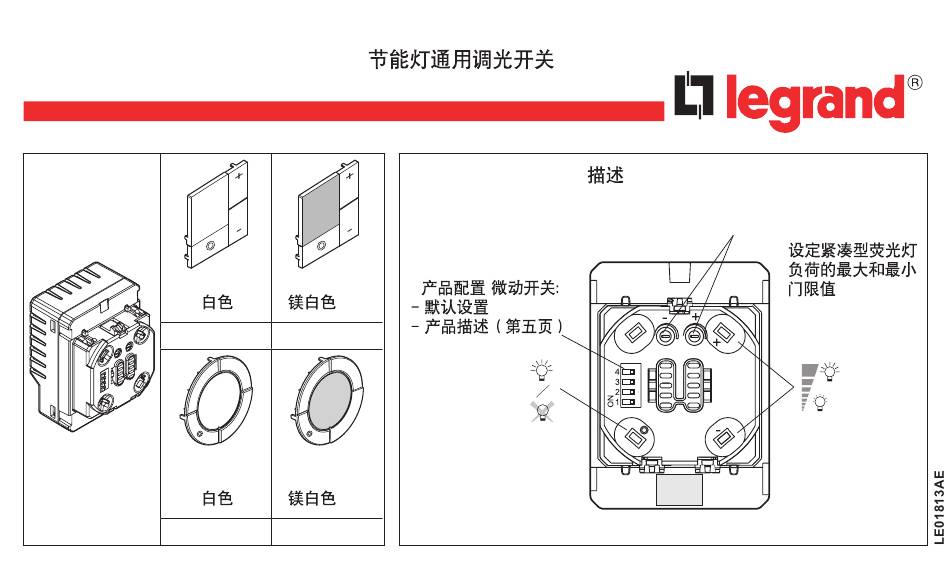

- Page 1 Arteor • Universal dimmer with neutral • 5740 08/58 - 5743 08/58 • Description • • Setting of minimum and maxi- mum thresholds for compact • Product configuration fluorescent loads micro-switch: - Default setting • - Description page 5 • White •...
- Page 2 • Characteristics • 35°C ( * ) 0°C Dimmable 100 Vac 2 x 2.5 mm 240 Vac 50/60 Hz Max. 300 W 300 W 300 VA 300 VA 160 VA 160 VA 160 VA 160 VA 240 Vac Min.
- Page 3 • Wiring •...
- Page 4 • Installation • L 40 mm...
- Page 5 • Configuration • • Reserved for “After-sales Service” • • Product configuration (see detail § “End stop setting method” for type lamps. / Level memory activated desactivated • • • • • Selection of the type of load •...
- Page 6 • Configuration (cont.) • • Capacitive mode • (**) Dimmable • (**) According to the lamp manufacturer • (**)
- Page 7 • Configuration (cont.) • • Inductive mode • (**) ( * ) (*) Use only with • transformers designed to function with electronic switches. • Dimmable • • (**) According to the lamp • manufacturer. (**) • • Lamps of different types must not be mixed in the same product.
- Page 8 • Configuration (cont.) • • Fluorescent and compact fluorescent lamps: / • Minimum and maximum lighting settings, recommended when the lamp flickers. (Before setting, let the lighting stabilise by leaving the lamp lit for a few seconds). • ...
- Page 9 • Configuration (cont.) • • When first switching on, if the load starts blinking then remains out: • • 1 - Check that the green and orange LEDs blink in succession. • • 2 - Reverse the position of switch 1. •...
- Page 10 All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unautho- rised opening or repair completely cancels all liabilities and the rights to replacement and guarantees.
- Page 11 Arteor 5740 08/58 - 5743 08/58 5740 08 5740 58 5743 08 5743 58...
- Page 12 ( * )
- Page 16 (**)
- Page 17 (**) ( * )
- Page 18 ...
- Page 20 ...
