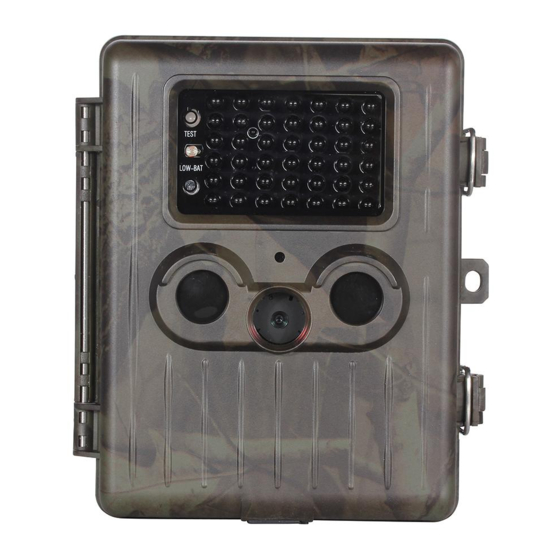

- Page 1 GPRS/MMS DiGital infRaReD tRail CaMeRa Ht-002liM User’s Manual...
-
Page 2: Table Of Contents
table of Contents 1 Instructions..........................................1 1.1 General Description ......................................1 1.2 Camera Body Interfaces ....................................1 1.3 Camera Components and Features…................................1 1.4 Shooting Information Display ...................................2 1.5 MMS function……………………………………….……………….….......................…2 1.6 Supported Format......................................2 2 Cautions..........................................3 3 Easy Operations.........................................4 3.1 Power Supply........................................4 3.2 Insert the SD-card and SIM-card..................................4 3.3 Power on and Enter into the ON Mode ................................4 3.4 Enter into the TEST Mode....................................4 3.4.1 Custom Settings......................................4... -
Page 3: Instructions

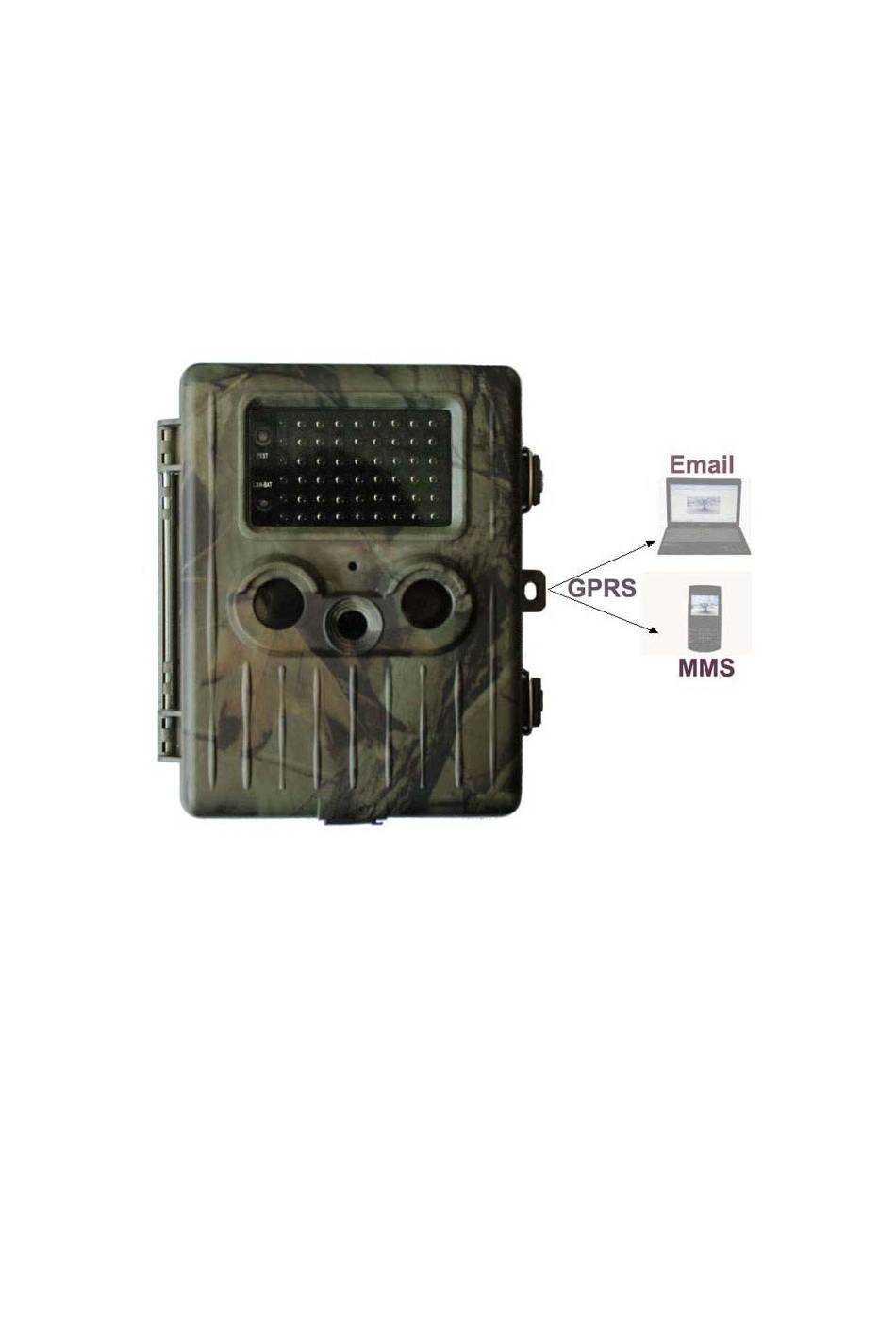

1. instructions 1.1 General Description This camera, a digital trail with MMS function, is a surveillance camera working automatically. It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 12M pixels) or records 1080p HD video clips (WVGA or QVGA). -
Page 4: Shooting Information Display
1) 2.5 inch Color LCD Display 2) Power Switch 3) Distance Switch 4) Menu Switch 5) SHUTTER Switch 6) Select Switch 7) SD-Card Slot 8) USB Connector 9) TV Out Connector 10) SIM-Card Slot 11) Battery Depot 1.4 Shooting information Display When the camera is turned on (the power switch is slid to TEST position), the shooting information will bedisplayed in the monitor. -
Page 5: Cautions
2. Cautions The working voltage of the camera is 7.5v to 9.0V. The camera is supplied by the rechargeable lithium battery. Please unlock the write-protect before inserting the SD-card. Please insert the SD-card when the power switch is at OFF position before testing the camera. Please do not insert or take out the SD-card when the power switch is at ON position. -
Page 6: Easy Operations
3. easy Operation 3.1 Power Supply Open the battery cover. Confirm that the power switch is at the OFF position, load the fully charged lithium battery into the depot. Push back the battery cover. When in Test Mode, camera will be automatically shut down to save power if without any operation within 3 minutes; it could be waked up by any movement detection. -
Page 7: Advanced Operations
4. advanced Operations From the basic operations of the camera in previous chapter, we know that the camera has three basic operation modes: 1. OFF mode: Power switch is at OFF position (Down). 2. ON mode: Power switch is at ON position (Up). 3. -
Page 8: System Setting
4.1.3 System Setting 4.1.4 MMS Setting Page6... -
Page 9: Smtp Setting
4.1.5 SMtP Setting Page7... -
Page 10: Fix The Setting By Software On The Computer
4.1.6 fix the setting by software on the computer You can fix all the 5 setting parts by software on the computer. Run the MMSCONFIG.exe file from MMSCONFIG folder in CD. Note: pls move all the files in the root directory of MMSCONFIG folder to keep the setting available if you need. Page8... - Page 11 The following window prompts: 1). Fix Menu Setting on PC Clink on Camera and model as you have, then you will see the following interface: Page9...
- Page 12 Fix the Menu setting based on your need. Last, lick on Save to save your settings into the root directory of the SD card (You need to insert the SD card into your computer.)Then one file named Parameter.dat will be created and saved in the directory you just selected. If you selected other directory in the computer, you need to move the Parameter.dat file to the root directory of the SD card before inserting the card in the camera.
-
Page 13: Default
First, you need to choose how you like to set up the SMTP Mode: Auto or Manual. If you choose Auto, then you need to choose the country and Mobile Phone Network Operator (MPNO). You could fix the number of pictures sent at a day from 0 to 99.After doing that, the below section will populate with parameters pertaining to the selected Operator, such as APN. -
Page 14: General Settings
4.1.8 General Settings The operating steps are suitable for following menu items: Camera Mode, Photo Size, Video Size, Multi, Video Length, Delay, Timer and GSM Mode. 4.1.9 Set Camera Mode There are three camera modes: Camera, Video and Camera+Video. The way to set the camera mode is via setting menu. The following shows how to set camera mode to Video, provided that the previous option is Photo: a) Press MENU to display the setting menu. -
Page 15: Set Multi
You can change the date and time of the device by setting this parameter when necessary, e.g., after every battery change. The date format is day/month/year, the time format is hour: minute: second. The valid value for year is between 2010 and 2050. Provided that the date and time are needed to be set to November 15th, 2011 and half past ten, the steps are as following: a) Press MENU to display the setting menu. -
Page 16: Enter Password
4.1.21 enter Password If the password setting is selected as On, after switching on the camera, the LCD screen on camera will prompt to enter password. The default password is off. It can be changed where the steps are as following: a) Press MENU to display the setting menu. -
Page 17: Appendix I: Technical Specifications
Appendix I: Technical Specifications Image Sensor Type(True Megapixels) 12 Mega Pixels Color CMOS Memory SD Card 8MB~32GB Lens F=3.1; FOV=60° Size 160mm ﹡ 120mm ﹡ 50 mm IR Filter Full Automatic IR Filter TFT Display Screen 48x35.69mm (2.36");480(RGB)﹡234DOT; 16.7M color PIR Sensitivity DUAL PIR with 3 sensitivity levels: High/ Normal/Low...
