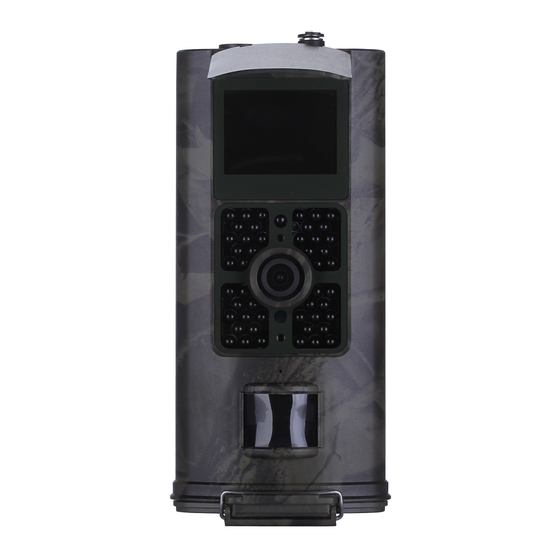

Suntek HC-700A User Manual

Scouting trail camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
HC-700A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HC-700A and is the answer not in the manual?

Questions and answers

Related Manuals for Suntek HC-700A

Summary of Contents for Suntek HC-700A

  • Page 1 User Manual HC-700A...

  • Page 2: Table Of Contents

    1. Introduction.......................3 1.1 Application......................3 1.2 Power Supply......................3 1.3 Caution........................3 1.4 Key Features......................4 2. Whole View and Details of Camera................5 2.1 Front View of Camera....................5 2.2 Back View of Camera....................5 2.3 Bottom View of Camera..................6 3. Quick Operation.......................6 3.1 Load Batteries......................6 3.2 Remoter........................7 3.3 Power On.......................7 3.3.1 Test........................8...

  • Page 3: Introduction

    1. Introduction Thank you for choosing our highly qualified Scouting Trail Camera. This 16MP HD digital camera was totally R&D by our diligent and smart engineers based on feedbacks and requirements from customers globally. Please read this introduction carefully before the camera using. 1.1 Application a.

  • Page 4: Key Features

    1.4 Key Features Built-in 2.0" TFT color screen to review photos and videos on camera 32pcs IR LEDs for flash range as 20 meters Programmable 8/12/16 Megapixel high-quality resolution Color pictures during daylight; black and white at night Adjustable PIR sensitivity; HIGH, MID, LOW Impressive quick trigger time: 0.5s Multi-shot pictures;...

  • Page 5: Whole View And Details Of Camera

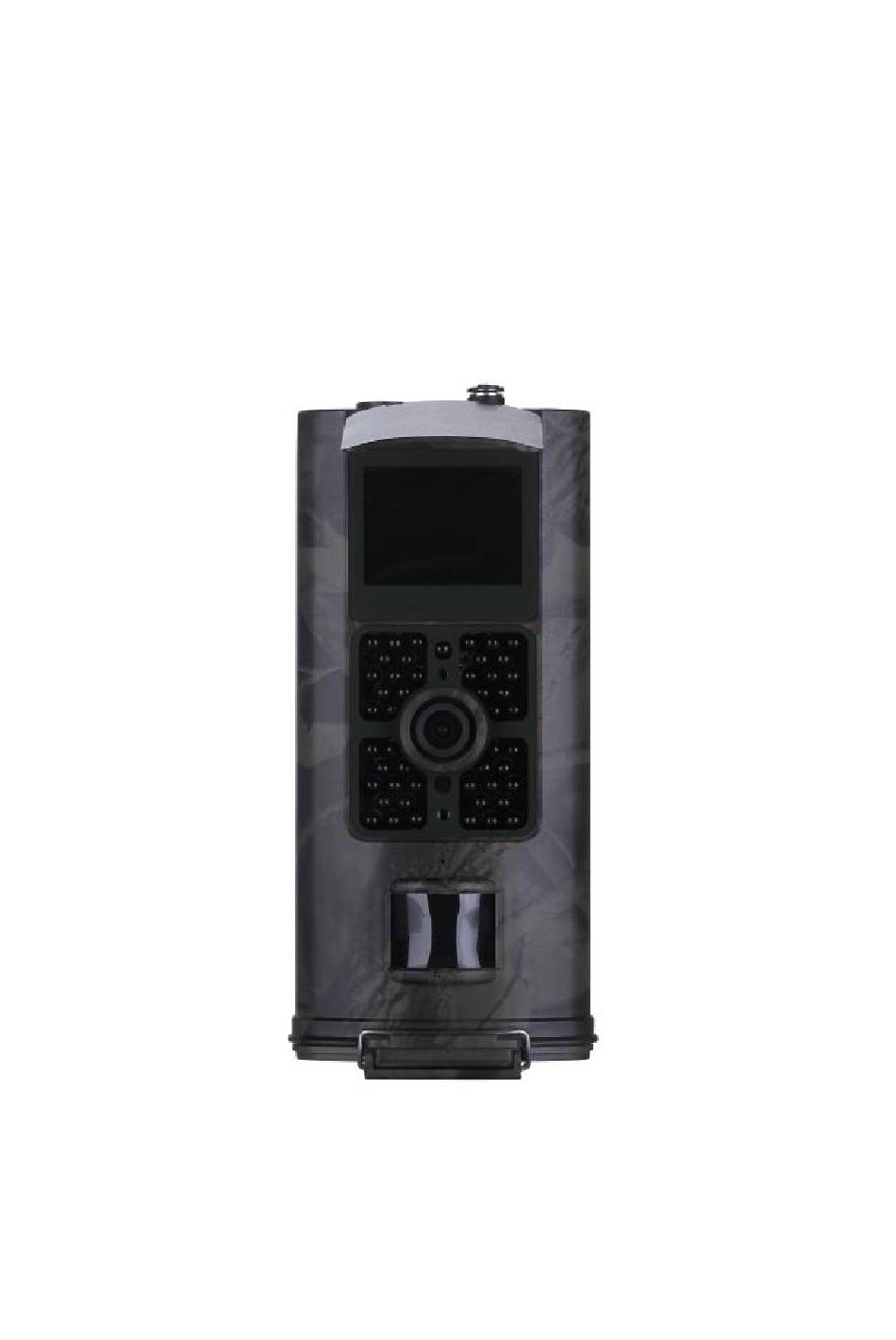

    2. Whole View and Details of Camera 2.1 Front View of Camera 2.2 Back View of Camera...

  • Page 6: Bottom View Of Camera

    2.3 Bottom View of Camera 3. Quick Operation 3.1 Load Battery...

  • Page 7: Remoter

    3.2 Remoter The infrared remoter is an input device of the camera and primarily used for customer settings. Its maximum remote distance is 9 meters. Note: Press the punctuation “ ” for laser light. Note (Under TEST mode): 1. Press “Shot” directly, the camera will take picture or video directly. 2.

  • Page 8: Test

    Slide Power Switch from OFF to Test(for setting) then to ON position, the camera powers on.(Please don’t slide the power switch from OFF to directly) 3.3.1 TEST (The first way to set the menu) In TEST mode, the screen lights up. User can do the below operations by remoter: a.

  • Page 9: Settings Menu

    3.5 Settings Menu There are 3 parts setting of the camera, user can fix Camera, Video and System menu setting by remoter; 3.5.1 Camera Menu Resoluation 16MP/12MP/8MP Sequence Signal/3/6/9 Camera Auto/100/200/400 1/5/10/30s Delay /1/5/10/30min Address 26 alphabet+number Description: Menu Content Description Resolution 16MP, 12MP, 8MP...

  • Page 10: Video Menu

    taking Sequence 1/3/6/9 Number of photos taken every time Auto,100,200,400 The camera exposure level Address 26alphabet +number Camera ID 3.5.2 Video Menu Menu Content Description Resolution 1080P, 720P, WVGA, QVGA Video size Video Length 10S, 30S, 60S, 90S The time length of video Record Audio On, Off If On, Video sound is recorded...
  • Page 11 Camera/Video/Camera+Video/ Timelapse Mode Language 12 languages Timelapse 30/60/240mins interval Image size Small/Normal/Big TV Mode NTSC/PAL Motion High/Mid/Low detection DD/MM/YY Date/Time System Timer 0/0/0 to 23/59/59 Password ON/OFF Format InternalMemory/SD card Default Setting Cancel/OK Version Firmware version...
  • Page 12 Setting Default Items Mode Camera Camera, Video, Camera&Video, Time lapse Resolution (Camera) 16M, 12M, 8M Delay 1 Seconds 1-30 Seconds, 1-30 Minute Multi Single Single, 3, 6, 9 Pictures Auto Auto 100, 200, 400 Resolution (Video) 1080P 1080P, 720P, WVGA, QVGA Video Length 10s, 30s, 60s, 90s Date/Time...

  • Page 13: Firmware Upgrade

    4. Firmware Upgrade This camera is equipped with an automatic upgrade function for you. Upgrading is needed only when an improved firmware is available. The operations are as following: 1. Unzip the update file 2. Copy the FWR801.bin to TF card. 3.

  • Page 14: Specification

    5. Specification Image Sensor 16 Mega Pixels Color CMOS Memory TF Card to 32GB F=3.1; FOV=120 ° Lens Size 172mmx80mmx43.5mm TFT Display Screen 2.0 inch Black Invisible 940nm PIR Distance High/Normal/Low PIR Sensor Sight Angle 120 Degrees Number of IR LED 32LEDs Max Night Vision Lighting Distance 65ft/20 meters...

  • Page 15: Packing List

    6. Packing List...
