July, 2021
ANA511 / LNT511

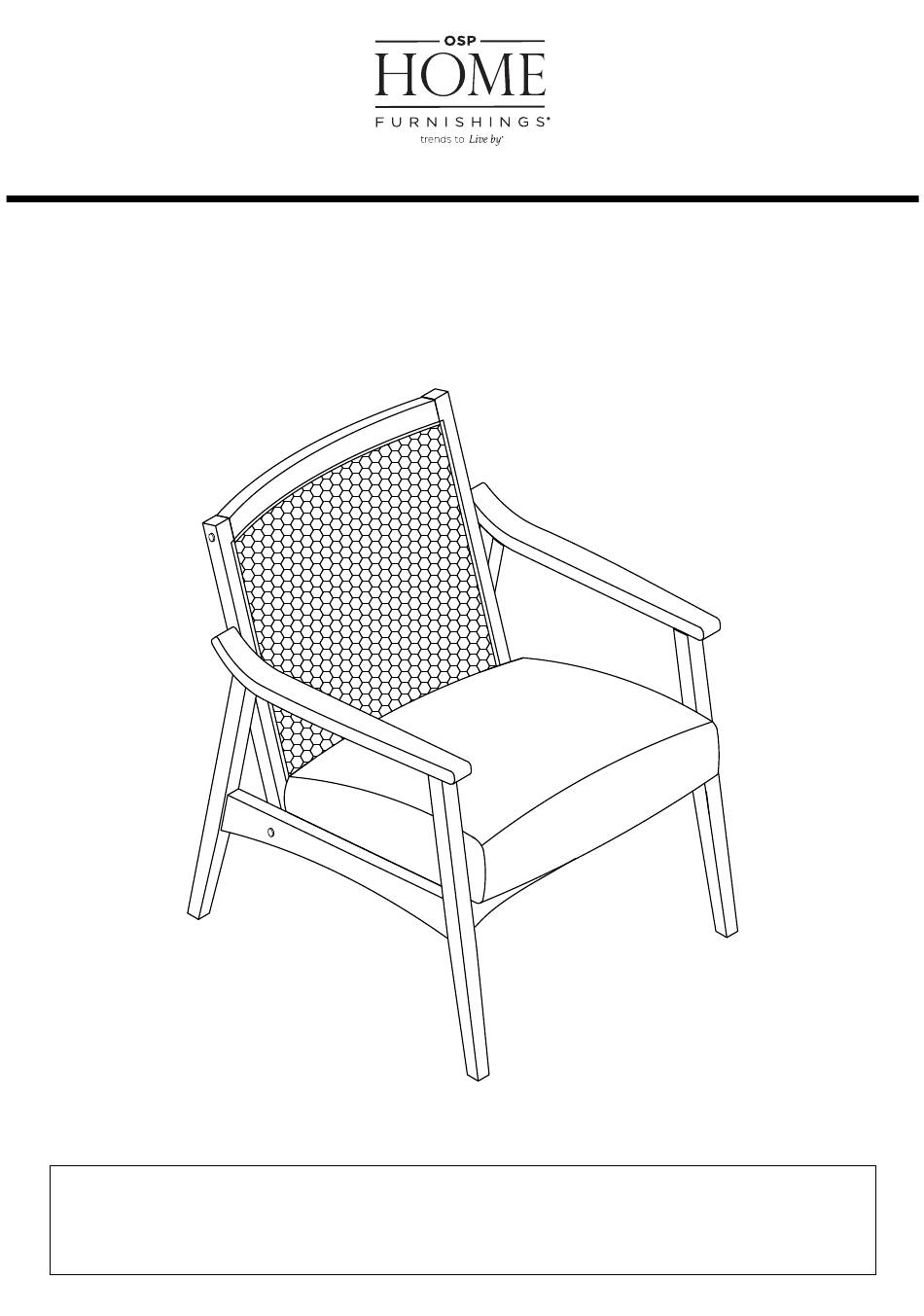

ARM CHAIR
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Related Manuals for OSP Home Furnishings ANA511
Summary of Contents for OSP Home Furnishings ANA511
- Page 1 July, 2021 ANA511 / LNT511 ARM CHAIR Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
-
Page 2: Limited Warranty
Monday through Friday 8:00 a.m. - 3:30 p.m. Pacific Time. To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At its option OSP Home Furnishings will: (a) Supply compatible ®... -
Page 3: Hardware List
PARTS (A) Back Frame (1 PC) (B) Seat (1 PC) (C) Right Frame (1 PC) (D) Left Frame (1 PC) HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Bolt 1/4” x 1-1/4” 2 PCS 1/4” x 1-1/2” Bolt 6 PCS + 1 EXTRA Lock Washer 1/4”... - Page 4 STEP 1 DO NOT FULLY TIGHTEN BOLTS (2). STEP 2 (3) (1) DO NOT FULLY TIGHTEN BOLTS.
- Page 5 STEP 3 DO NOT FULLY TIGHTEN BOLTS (2). STEP 4 TURN TO THE UPRIGHT POSITION, APPLY FIRM PRESSURE TO ALIGN & FULLY TIGHTEN ALL BOLTS.
- Page 6 STEP 5 IF NEEDED, ADJUST LEVELERS TO LEVEL.
