September, 2019
ANA26

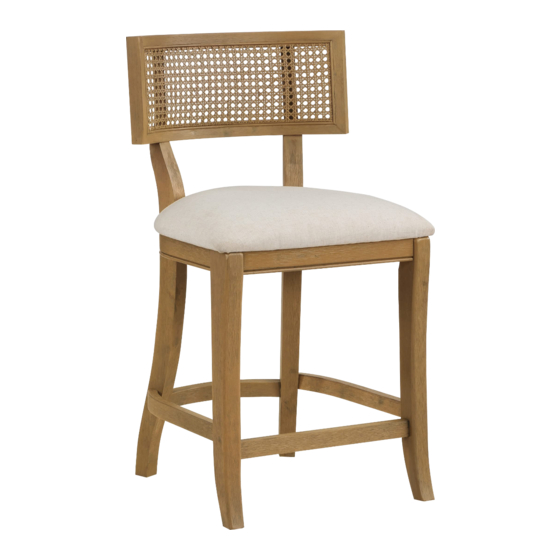

ALAINA 26" COUNTER STOOL
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Table of Contents
Related Manuals for OSP Home Furnishings ALAINA ANA26
Summary of Contents for OSP Home Furnishings ALAINA ANA26
- Page 1 September, 2019 ANA26 ALAINA 26” COUNTER STOOL Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
- Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
- Page 3 PARTS (A) Back Frame (1 PC) (B) Seat (1 PC) (C) Left Front Leg (1 PC) (D) Right Front Leg (1 PC) (E) Right Stretcher (1 PC) (F) Left Stretcher (1 PC) (G) Foot Rest (1 PC)
- Page 4 HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Screw M4.2 x 1-1/2” 6 PCS + 1 EXTRA Bolt 5/16” x 1-3/4” 1 PC Bolt 5/16” x 2-1/2” 4 PCS Bolt 5/16” x 3-1/4” 4 PCS Lock Washer 5/16” 9 PCS + 1 EXTRA Flat Washer 5/16”...
- Page 5 STEP 2 DO NOT FULLY TIGHTEN BOLTS (4). STEP 3 DO NOT FULLY TIGHTEN SCREWS (1).
- Page 6 STEP 4 DO NOT FULLY TIGHTEN SCREWS (1). STEP 5 TURN TO THE UPRIGHT POSITION, APPLY FIRM PRESSURE TO ALIGN & FULLY TIGHTEN ALL BOLTS. FULLY TIGHTEN ALL SCREWS (1) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
