OSP Home Furnishings ALAINA ANADC2 Assembly Instructions

Dining chair

September, 2019

ANADC2

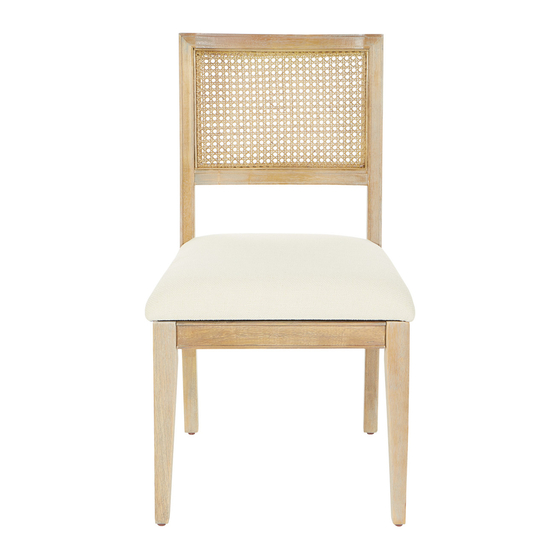

ALAINA DINING CHAIR

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when

assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or

information on other products, please visit our website: www.officestar.net or call or write us.

Table of Contents

Do you have a question about the ALAINA ANADC2 and is the answer not in the manual?

Page 1 September, 2019 ANADC2 ALAINA DINING CHAIR Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
Page 3 PARTS (B) Seat (1 PC) (A) Back Frame (1 PC) (C) Front Leg (2 PCS) HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Bolt 5/16” x 2” 1 PC 5/16” x 2-1/4” Bolt 4 PCS Bolt 5/16” x 3-1/4” 4 PCS Lock Washer 5/16”...
Page 4 STEP 1 DO NOT FULLY TIGHTEN BOLT (1). STEP 2 DO NOT FULLY TIGHTEN BOLTS (3).
Page 5 STEP 3 TURN TO THE UPRIGHT POSITION, APPLY FIRM PRESSURE TO ALIGN & FULLY TIGHTEN ALL BOLTS.
