Lenovo ALL-In-One M720 User’s Guide May 2004 www.lenovo.com Lenovo is a trademark of Lenovo (Beijing) Ltd. Other trademarks are the property of their respective owners.
Evaluation and verification of operation in conjunction with other products, programs, or services, except those expressly designated by the manufacturer, are the user’s responsibility. Lenovo is a trademark of Lenovo (Beijing) Ltd. Other trademarks are the property of their respective owners.
Understanding the parts of the All-In-One ........9 Using the control panel ............... 11 Understanding the software ........... 13 Using the Lenovo All-In-One Center ........... 13 Using Print Properties ..............16 Using the Lenovo Solution Center ..........18 Using the Lenovo Photo Editor ........... 20 Using your All-In-One ............
Page 78
Networking your printer ..........39 Overview ..................39 Setting up your network using the peer to peer method ..... 40 Setting up your network using the point and print method ..41 Maintaining your All-In-One ..........45 Replacing a print cartridge ............45 Aligning the print cartridges ............
• Reference—Printer documentation and product specifications To get the latest information for this product: • Visit the Lenovo Sunny Web site at http://www.lenovo.com • Call the Lenovo Sunny Support Hotline at 400-810-1234 • See your local authorized dealer.
Learning about your All-In-One Your All-In-One can be used with or without a computer. If you are using your All-In-One without a computer, make sure you follow the additional instructions provided in “Setting up the All-In-One without a computer” on page 8.
Setting up the All-In-One with a computer To set up your All-In-One, follow the instructions on the Lenovo M720 Setup sheet to install the hardware and software. If problems occur during the setup process, see “Troubleshooting” on page 55. Setting up the All-In-One without a computer If you are using your All-In-One without a computer, make sure you follow the steps on the Setup sheet to complete hardware installation.

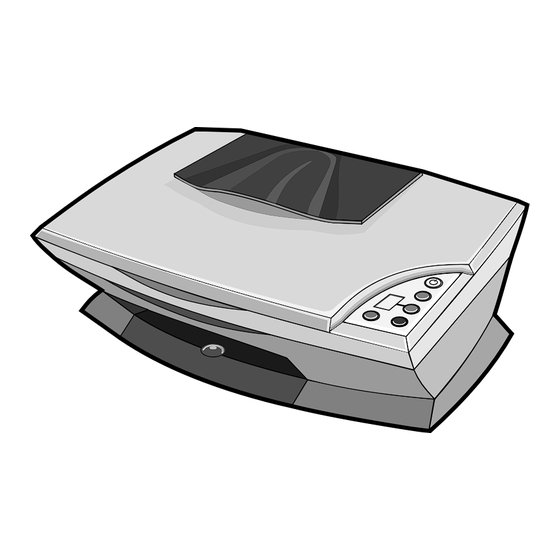

Understanding the parts of the All-In-One Use this Control panel Operate the All-In-One (see “Using the control panel” on page 11 for details about each of the buttons). Scanner unit Lift to access the print cartridges. Paper exit tray Extend to hold paper as it exits the All-In-One. Scanner lid Lift to place an item on the scanner glass.
Page 84
Use this Power supply cord Supply power to your All-In-One. USB cable (may be sold Connect your All-In-One to a computer. separately) Part number: 72G0213 USB cable connector Insert the USB cable before connecting to the computer. Note: Insert the power supply into the All-In-One before connecting the power supply into the wall outlet.
Use this 1 Power/Resume Turn the All-In-One on or off. 2 Scan Start the scanning process and open the Lenovo All-In-One Center. 3 Copy Quantity Change the number of copies to make. 4 Black Copy Make a black and white copy.
• The Lenovo Photo Editor (editing graphics) Using the Lenovo All-In-One Center Use the Lenovo All-In-One Center software to scan, copy, and fax documents. There are three ways to open the All-In-One Center: • Click Start...
Page 88
The All-In-One Main Page The All-In-One Main Page consists of four main sections: Scan, Copy, Creative Tasks, and Preview. From this section You can Scan • Select a program to send the scanned image to. • Choose what type of image is being scanned. •...
Page 89
More printing ideas and how to’s • Contact information • Advanced (voice, and communication options) • View the software version and copyright information For more information about the Lenovo Solution Center, see “Using the Lenovo Solution Center” on page 18.
Using Print Properties Print Properties is the software that controls the All-In-One printing function. You can change the settings in Print Properties based on the type of project you want to create. You can open Print Properties from almost any program: From the program File menu, click Print.
Page 91
Print Properties tabs All of the print settings are on the three main tabs of the Print Properties software: Quality/Copies, Paper Setup, and Print Layout. From this tab You can Quality/Copies Quality/Speed—Select a Quality/Speed setting. Multiple Copies—Customize how the All-In-One prints several copies of a single print job: collated or normal.
The Options menu also provides you with direct links to different parts of the Lenovo Solution Center (see “Using the Lenovo Solution Center” on page 18), as well as software version information. Using the Lenovo Solution Center The Lenovo Solution Center is a valuable information resource.
Page 93
The Lenovo Solution Center consists of six tabs: Printer Status, How To, Troubleshooting, Maintenance, Contact Information, and Advanced. From this tab You can Printer Status (Main • View the status of the All-In-One. For example, dialog box) while printing, the status is Busy Printing.
Using the Lenovo Photo Editor Use the Lenovo Photo Editor software to edit graphics or photos before you print them. To open the Lenovo Photo Editor, click Start Programs Lenovo M720 Lenovo Photo Editor. The Lenovo Photo Editor displays. Use the available tools to edit your graphic.
Using your All-In-One The following sections give you everything you need to know for basic printing, scanning, copying, and faxing. Loading paper You can load up to 100 sheets of plain paper at a time, depending on the thickness of the paper (up to 10 mm). Place the paper against the right side of the paper support with the print side facing you.
Page 96
Loading specialty paper Follow these guidelines when loading specialty paper: Note: If you are using letter size paper, adjusting the paper guide may not be necessary. Note: Make sure you select the correct paper size and paper type in Print Properties. For help, see “Using Print Properties”...
Page 97
Load up to Make sure 10 sheets of greeting • The print side is facing you. card stock, postcards, or • The cards are loaded vertically against the right photo cards side of the paper support. • The paper guide rests against the edge of the cards.
Page 98
Load up to Make sure 25 sheets of coated • If your paper includes instructions, read them paper carefully. • You load the premium paper vertically against the right side of the paper support. • If there is a special mark on the paper, make sure the mark is facing away from you.
Placing documents on the scanner glass Open the scanner lid of the All-In-One. Place the item you want to scan face down on the glass. Make sure the upper left corner of the front of the item aligns with the arrow. Close the scanner lid.
Printing Load paper. For help, see “Loading paper” on page 21. With your document open, click File Print. Change any print settings. For help, see “Changing print settings” on page 26, or click the I Want To menu to select a print wizard for a project, such as printing a banner or an envelope.
Page 101
From the Paper Setup tab, select the paper type, paper size, and orientation. Note: To see details about a setting, right-click a setting on the screen, and then select the What’s This? item. From the Print Layout tab, select the layout and duplexing settings for the type of document you are printing.
Printing photos Load photo paper. For help, see “Loading specialty paper” on page 22. With your document open, click File Print. Click Properties, Preferences, Options, or Setup (depending on the program or operating system) to customize print settings. The Print Properties dialog box displays. From the Quality/Copies tab, select Better or Best.
Scanning The following steps show you how to scan and save images. Open the scanner lid of the All-In-One. Place the item you want to scan face down on the glass. Make sure the upper left corner of the front of the item aligns with the arrow. Close the scanner lid.
Page 104
Changing scan settings From the Scan section, click See More Scan Settings. Choose what is being scanned. Choose how the scan will be used. Click Advanced to change advanced options. Click the tabs to make any changes. Click this tab Scan •...
Page 105
Scanning photos Place your photo on the scanner glass. For help, see “Placing documents on the scanner glass” on page 25. Open the Lenovo All-In-One Center. For help, see “Using the Lenovo All-In-One Center” on page 13. Click Preview Now.
Copying using the control panel Note: You can make a quick color or black and white copy. Press Color Copy or Black Copy on the control panel. To make black and white, gray, or color copies: Open the scanner lid of the All-In-One. Place the item you want to copy face down on the glass.
Page 107
Changing copy settings using the control panel You can change the quantity and quality of your copy using the control panel. To change the copy quantity using the control panel Press Copy Quantity repeatedly until the number of copies (1-9) you want to make appears on the display.
Page 108
Changing copy settings using the software Open the Lenovo All-In-One Center. For help, see “Using the Lenovo All-In-One Center” on page 13. Select a copy quantity and color. Click See More Copy Settings to: • Choose a copy quality. •...
Page 109
Make sure your computer and printer are on. Load photo paper. For help, see “Loading specialty paper” on page 22. Open the Lenovo All-In-One Center. For help, see “Using the Lenovo All-In-One Center” on page 13. Click Preview Now. Adjust the dotted lines to fit around the part of the image you want to print.
Close the scanner lid. Open the Lenovo All-In-One Center (see “Using the Lenovo All-In-One Center” on page 13). From the Creative Tasks section of the All-In-One Main Page, click Fax using PC modem.
Page 111
Receiving a fax Click Start Settings Control Panel. Click Fax. Click the Status Monitor tab, and then select the Enable manual answer for the first device check box. When an incoming call comes through, the Answer call? prompt appears. Click No for voice calls, click Yes if a fax tone is heard.
Networking your printer Overview A network is a group of computers or computer systems linked together for the purpose of sharing resources, such as printers, files, or an Internet connection. You may share your printer across a network. When a printer is shared, the printer is connected to the host computer using a local cable, such as the USB cable.
Network clients retain control of driver modifications. The client computer handles the print job processing. Follow the instructions on the Lenovo M720 Setup sheet to install the hardware and software on the host computer. Make sure the host computer is shared. For help, see “Sharing the printer from the host computer”...
The host computer controls driver modifications and handles the print job processing. Follow the instructions on the Lenovo M720 Setup sheet to install the hardware and software on the host computer. Make sure the host computer is shared. For help, see “Sharing the printer from the host computer”...
Page 116
Sharing for Microsoft Networks. Click OK. Sharing the printer from the host computer Click Start Settings Printers (or Printers and Faxes). Right-click the Lenovo M720 printer icon. Click Sharing. Click Shared As, and then give the printer a distinctive name. Click OK.
Page 117
Windows XP/2000 1 Click Start Settings 1 Click Start Settings Printers. Printers. 2 Right-click the Lenovo M720 printer 2 Right-click the Lenovo M720 printer icon. icon. 3 Click Properties. 3 Click Properties. 4 Click the Details tab, and then click 4 Click the Ports tab, and then click Add Port.
Maintaining your All-In-One Replacing a print cartridge The Lenovo M720 has been designed to print using the following cartridges. Location Item Part number Left Color cartridge Right Black cartridge Note: You can print using only the color cartridge, or with both a color cartridge and a black cartridge.
Page 120
Removing a used cartridge Make sure the All-In-One is on. Lift the scanner unit until the scanner support keeps it open. The print cartridge carrier moves and stops at the loading position unless the All-In-One is busy. Lift the lid. Remove the old cartridge.
Page 121
Installing a print cartridge If you are installing a new cartridge, remove the sticker and transparent tape from the back and bottom of the cartridge. Note: If only a color cartridge is shipped with your All-In-One, install a black print cartridge for optimum print quality. Warning: Do not touch the gold contact area on the cartridges.
Page 122
Snap the lid closed. Lift the scanner unit and push the scanner support back while lowering the scanner unit until it is completely closed. Note: The front cover must be closed to start a new scan, print, copy, or fax job.
Page 123
Before specifying the print cartridge settings in the printer software, install the cartridges. For help, see “Installing a print cartridge” on page 47. Open the Lenovo Solution Center. For help, see “Using the Lenovo Solution Center” on page 18. From the Maintenance tab, click Install a new Print Cartridge.
To align the cartridges using a computer: Load plain paper. For help, see “Loading paper” on page 21. Open the Lenovo Solution Center. For help, see “Using the Lenovo Solution Center” on page 18. From the Maintenance tab, click Align to fix blurry edges.
Improving print quality If you are not satisfied with the print quality of your document, make sure you: • Use the appropriate paper for the document. • Use paper that is a heavier weight, bright white, or coated. • Select a higher print quality: From your program, click File Print.
Page 126
Cleaning the print nozzles Use the Lenovo M720 Solution Center to clean the print nozzles. Load paper. For help, see “Loading paper” on page 21. Click Start Programs Lenovo M720 Lenovo Solution Center. Click the Maintenance tab. From the Maintenance tab, click Clean to fix horizontal streaks.
Page 127
Wiping the print cartridge nozzles and contacts Remove the print cartridges. For help, see “Removing a used cartridge” on page 46. Dampen a clean, lint-free cloth with water. Gently hold the cloth against the nozzles for about three seconds, and then wipe in the direction shown. Using another clean section of the cloth, gently hold the cloth against the contacts for about three seconds, and then wipe in the direction shown.
Lenovo’s All-In-One warranty does not cover repair of failures or damage caused by a refilled cartridge. Lenovo does not recommend use of refilled cartridges. Refilling cartridges can affect print quality and cause damage to the All-In-One. For best results, use Lenovo supplies.
Troubleshooting Should your All-In-One have a problem, this section helps you find the solution. From the following list, select the category that best fits your situation. Answer the questions in the category to find the solution to your specific symptom. •...
Setup troubleshooting Symptom Question Solution The Power light is Is the power supply pushed Disconnect the power supply not lit all the way into the from the All-In-One. All-In-One? Reconnect the power supply by pushing it all the way into the connector on the All-In-One.
Page 131
Symptom Question Solution Alignment page or Is the All-In-One on? Press the Power button. If test page will not the Power light does not print come on, see the “The Power light is not lit” symptom at the beginning of this table.
Print troubleshooting Find the symptom that best matches the problem you are having. Symptom Question Solution Poor quality at the edges Are you printing outside Use these minimum of the page the print margins for the settings: All-In-One? Left and right margins: •...
Page 133
Properties, or from the size? All-In-One software. For help, see “Using Print Properties” on page 16 or “Using the Lenovo All-In-One Center” on page 13. Are the All-In-One Select the highest settings adjusted to the appropriate Quality for...
Page 134
Settings Printers and Faxes or Printers (Windows 98, Me, 2000). Double-click the Lenovo M720 icon. Click Printer and make sure no check mark appears next to Pause Printing. Also make sure a check mark does appear next to Set As Default.
Scan and copy troubleshooting Find the symptom that best matches the problem you are having. Symptom Question Solution Scanner or copier is not Is the All-In-One on? Press the Power button. responding If the Power light does not come on, see the “The Power light is not lit”...
Page 136
Top margin: • 1.7 mm (0.067 inches) Bottom margin: • 16.51 mm (0.65 inches) Is the original document 1 Open the Lenovo larger than the paper you All-In-One Center. For are using for copies? help, see “Using the Lenovo All-In-One Center”...
Page 137
Symptom Question Solution Poor quality from scan or Has the Lighter/Darker 1 Open the Lenovo copy feature. setting on the All-In-One All-In-One Center. For been changed? help, see “Using the Lenovo All-In-One Including: Center” on page 13. • Blank page 2 From the Copy •...
Changing Advanced Copy settings Click Start Programs (or All Programs) Lenovo M720 Lenovo All-In-One Center. Click See More Copy Settings. Click Advanced to display the Advanced Copy Settings dialog box. Select the Scan tab. From the Color depth drop-down menu, select Gray.
How to use the auto-cropping feature Click Start Programs (or All Programs) Lenovo M720 Lenovo All-In-One Center. Click See More Scan Settings. Click Display Advanced Scan Settings. Click the Scan tab. Select Auto-crop the scanned item. Adjust the slider to the left to crop less or to the right to crop more.
Jams and misfeeds troubleshooting Find the symptom that best matches the problem you are having. Symptom Question Solution Paper jams Did the jam occur in the Turn the power off. Firmly grasp paper support? the paper and gently pull it from the All-In-One.
3 Make sure nothing is blocking the paper or print cartridge path. 4 Close the scanner unit. 5 Press Power. 6 Print your document again. If this does not correct your problem, contact Lenovo Customer Support. Contact Lenovo Customer Support. 06-14...
For help, refer to the setup documentation. Using other help sources If the preceding solutions do not solve the problem with your All-In-One: • Refer to the Lenovo Solution Center software for more troubleshooting information: Click Start Programs...
Federal Communications Commission (FCC) compliance information statement The Lenovo M720 4475-LV1 has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 144
Lenovo M720 energy consumption The following table documents the energy consumption characteristics of the Lenovo M720. Mode Description Power consumption All-In-One is generating hard copy Printing output 17.27 W All-In-One is generating hard copy Copying output from hard copy originals 15.17 W...
Index aligning 50 use 11 cleaning 52 Copy Quantity 11 adjusting settings installing 47 Copy section 14 for magazine 64 ordering 45 copy settings for newspaper 64 part numbers 45 changing 34 Advanced tab 19 preserving 54 Copy troubleshooting 61 aligning print removing 46 copying 32...
Page 146
Maintenance 19 paper cleaning 52 Printer Status 19 loading 21 installing 47 Troubleshooting 19 size 27 ordering 45 Lenovo Web site 5 type 27 part numbers 45 load paper exit tray 9 preserving 54 banner 23 paper guide 9 removing 46...
Page 147
28 Setup troubleshooting 56 uninstalling software 68 print a banner 28 software USB cable 10 print a greeting Lenovo All-In-One part number 10 card 28 Center 13 USB cable connector 10 print a photo 28 Lenovo Photo using...
