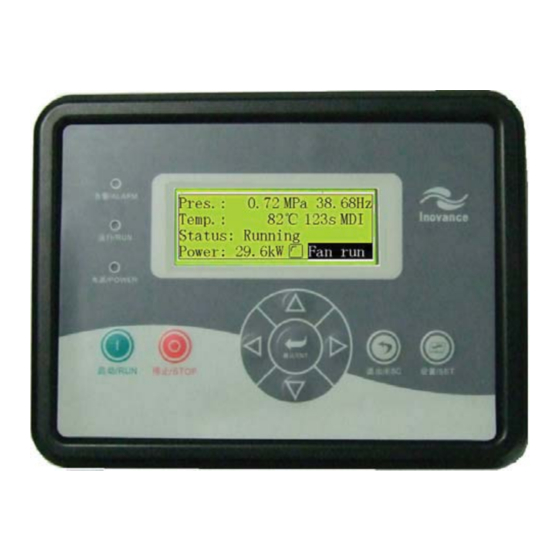

H0U-88B1G With ACC Program Manual
English Version
V2.0
efesotomasyon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H0U-88B1G and is the answer not in the manual?

Questions and answers

Related Manuals for Inovance H0U-88B1G

Summary of Contents for Inovance H0U-88B1G

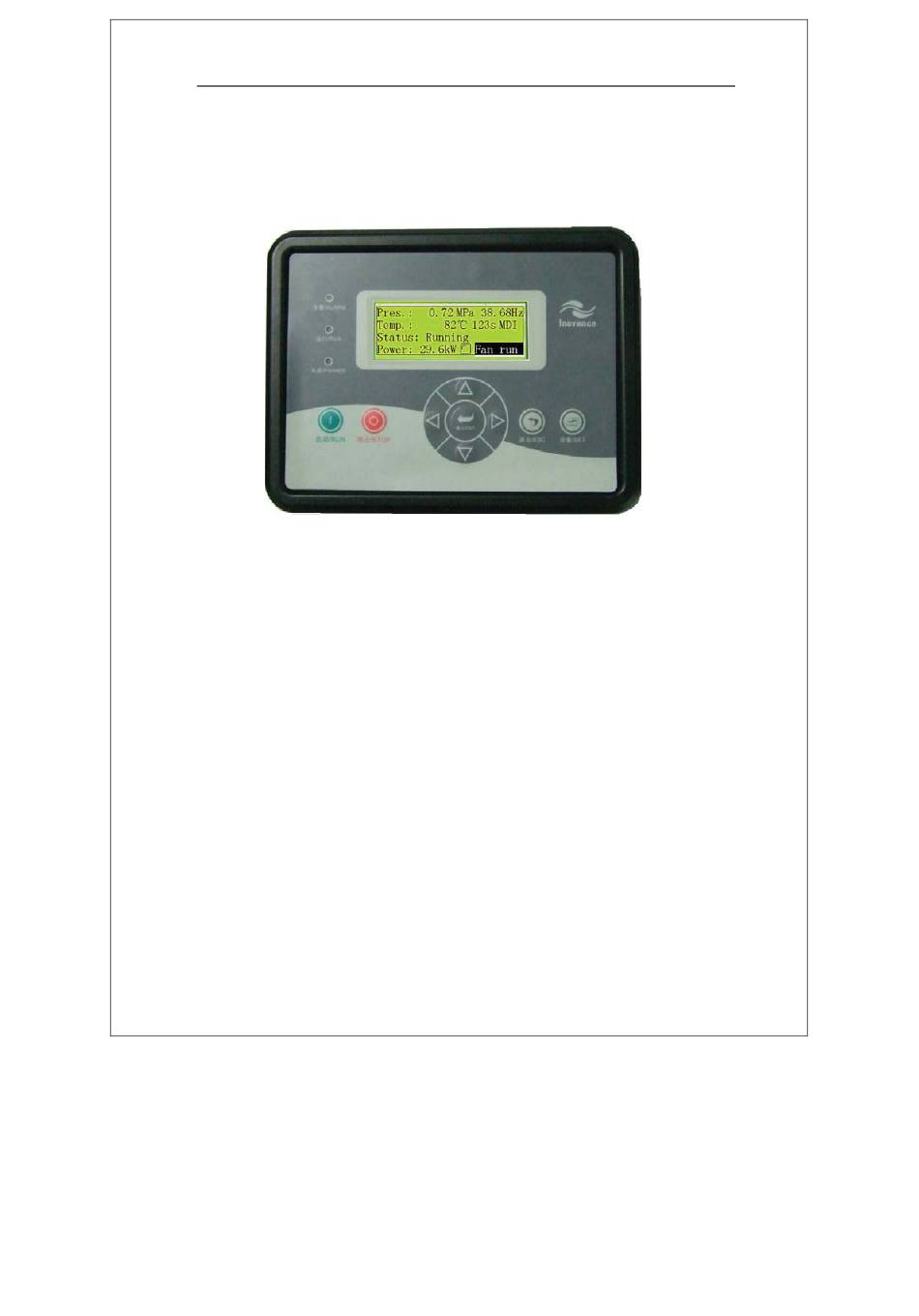

  • Page 1 H0U-88B1G With ACC Program Manual English Version V2.0 efesotomasyon.com...

  • Page 2: Table Of Contents

    Contents Chapter 1 Preface ................. 4 Chapter 2 Functions and Configuration ......... 5 2.1 Function overview ..............5 2.2 Hardware Configuration ............7 Chapter 3 Mounting and Wiring ............. 9 3.1 Wiring the Controller ..............9 3.2 Drive Modes of Screw compressor.......... 9 3.3 Controller Terminal Diagram ..........
  • Page 3 5.5.1 Control Process in MDI Drive Mode ......45 5.5.2 Control Process in the Power-line Drive Mode .... 46 5.5.3 Control of the Fan ............47 5.5.4 Handling Abnormal Signals ......... 48 Chapter 6 Troubleshooting ............49 Appendix: H0U-88B1G Optional Accessories......56 Power-line current transformer ..........56 efesotomasyon.com...

  • Page 4: Chapter 1 Preface

    Chapter 1 Preface The H0U-88B1G controller is a general purpose industrial controller that is designed with user programmable function. With the specific ACC program provided by Inovance, you can realize smart control of screw compressor. This manual describes the design and usage of the control functions of the H0U-88B1G controller as well as ACC program.

  • Page 5: Chapter 2 Functions And Configuration

    Chapter 2 Functions and Configuration 2.1 Function overview The H0U-88B1G with ACC program supports the following applications: It can work together with the high-performance MD320 Series inverter to form the electric and drive system of inverter-based screw compressor. It can be used for control of the screw compressor driven by power-line supply.
  • Page 6 and separately set motor overload and lack-phase protection. Able to detect clog signals and give alarm. 2-channel independent RS485 communication ports that can be used for communication with host computer and the MDI, respectively. Able to realize remote monitor by PC. Maintenance reminder 100 hours in advance according to maintenance plans Built-in display in English and Chinese that can be switched online.

  • Page 7: Hardware Configuration

    2.2 Hardware Configuration Table 2-1 Hardware Configuration and Signal Logic Description Terminal Attribute Function Remark Type close in normal state. Emergency-stop signal open upon emergency stop. close in power-line drive mode MDI/power-line for main motor. selection open in MDI drive mode for main motor.
  • Page 8 Terminal Attribute Function Remark Type A/B/C Detecting A/B/C voltage and A/B/C three-phase 380VAC detecting phase sequence RS485 Inverters of the main motor Communication with MDI A1/B1 and fan Comm. port RS485 Online or background A2/B2 communication Controller power supply Power input 220VAC input Table 2-2 There are 3 LEDs on panel, which are defined as follows:...

  • Page 9: Chapter 3 Mounting And Wiring

    Chapter 3 Mounting and Wiring 3.1 Wiring the Controller The H0U-88B1G controller is connected with the MD 320 Series inverter using the RS485 signal twisted cables at the communication ports (485A1 and 485B1). Both contactor coil and solenoid valve are inductive components.
  • Page 10 Fan: MDI/power-line compatible drive Wiring specifications for each drive mode Controlling Arrangement Power Drive Mode Signal Wiring Wiring Main motor: power-line with (Y- startup) Fig. 3-3 Fig. 3-4 Fan: power-line Main motor: MDI Fig. 3-5 Fig. 3-6 Fan: power-line Main motor: MDI Fig.

  • Page 11: Controller Terminal Diagram

    3.3 Controller Terminal Diagram All the terminals are detachable, Figure 3-2 H0U-88B1G with ACC controller wiring terminals 3.4 Dimension and Installation: efesotomasyon.com...

  • Page 12: Arrangement 1: Both Main Motor And Fan Are Driven By

    3.5 Arrangement 1: Both main motor and fan are driven by power-line Figure 3-3 Power wiring in power-line with Y- startup efesotomasyon.com...

  • Page 13: Arrangement 1: Controlling Signal Wiring Diagram

    3.6 Arrangement 1: Controlling Signal Wiring Diagram 485A2 4 - 20mA Pressure 485B2 transmitter Thermal relay contact PT100 Fine separator clog Separator clog Oil filter clog CT1A Air filter clog CT1B Main motor CT1C Emergency stop CT2A CT2B CT2C C1 Y0 Y4 Y5 type type...

  • Page 14: Arrangement 2: Power Wiring Diagram

    Main Motor driven by MDI and Fan by Power-line 3-phase AC power supply L 1 L 2 L3 R S T MD320 U V W H0U-88B1G U 1 V 1 W1 Main motor Figure 3-5 Main Motor Driven by MDI and Fan by Power-line efesotomasyon.com...
  • Page 15 3.8 Arrangement 2: Controlling Signal Wiring Diagram When Main Motor Driven by MDI and Fan by Power-line Connecting to MD320 inverter 485A1 RS485 4 20mA Pressure 485B1 transmitter H0U-88B1G PT100 Fine separator clog Separator clog Oil filter clog CT1A Air filter clog CT1B CT1C...

  • Page 16: Arrangement 3: Power Wiring Diagram

    3.9 Arrangement 3: Power Wiring Diagram Both Main Motor and Fan Driven by MDI Figure 3-7 Both main motor and fan driven by MDI efesotomasyon.com...

  • Page 17: Arrangement 3: Controlling Signal Wiring Diagram

    3.10 Arrangement 3: Controlling Signal Wiring Diagram Both Main Motor and Fan Driven by MDI Figure 3-8 Controlling signal wiring diagram when both main motor and fan are driven by MDIs efesotomasyon.com...

  • Page 18: Arrangement 4: Power Wiring Diagram

    3.11 Arrangement 4: Power Wiring Diagram Main Motor Driven by MDI/Power-line Compatible, While Fan by Power-line Figure 3-9 Power wiring diagram: main motor driven by MDI/Power-line compatible,while fan by power-line efesotomasyon.com...

  • Page 19: Arrangement 4: Controlling Signal Wiring Diagram

    Main Motor Driven by MDI/Power-line, While Fan by Power-line Connecting to RS485 port 485A1 of MD320 inverter 4 20mA Pressure 485B1 transmitter Thermal relay contact H0U-88B1G PT100 Fine separator clog Separator clog Oil filter clog CT1A Air filter clog CT1B Main...

  • Page 20: Arrangement 5: Power Wiring Diagram

    R S T R S T MD320 MD320 U V W U V W H0u-88B1G U 1 V 1 W1 Main motor U 2 V 2 W2 Figure 3-11 Power wiring diagram: Main motor driven by MDI/Power-line, while fan by Power-line...

  • Page 21: Arrangement 5: Controlling Signal Wiring Diagram

    3.14 Arrangement 5: Controlling Signal Wiring Diagram Both Main Motor and Fan Adopt the MDI/Power-line Compatible Drive Mode Connecting to RS485 port 485A1 of MD320 inverter 4 20mA Pressure 485B1 transmitter Thermal relay contact PT100 Fine separator clog Separator clog Oil filter clog CT1A Air filter clog...

  • Page 22: Chapter 4 Description On How To Operate The Controller

    Chapter 4 Description on How to Operate the Controller 4.1 Description of Functions of the Controller Keys There are 8 keys on the controller panel with thin film structure. The keys have the same functions and operation style as general human-machine interface does.
  • Page 23 Name Function Description of next parameter. If there is no next parameter to be edited, then escape the editing status; If the screen has no editable parameter or the editing is not allowed, this key is disabled. In default screen, press this key to browse the current alarm information, and commonly used running parameters of screw compressor inverter.

  • Page 24: Display Screens Of Controller

    Name Function Description In the menu with cursor line, press this key to enter the lower level menu of cursor line or browse the information of selected parameter. In parameter editing status, press this key to Enter validate the edited parameter, that is, save and then escape the editing of this parameter and start editing the next parameter.
  • Page 25 parameters, control setting values and statistic data of the screw compressor. Each data is classified in menu structure that is shown in the following figure. You can browse the data according to the prompt in the figure. efesotomasyon.com...
  • Page 26 Figure 4-1 Illustration of menu structure of ACC efesotomasyon.com...

  • Page 27: List Of Menu Items

    4.3 List of Menu Items In the default screen, press the key to enter the main menu of the controller. The main menu contains the following six items,you can press UPKEY or DOWNKEY to view all of them: -System menu- Status Report Measured Data System Setting...
  • Page 28 First-level Display Information Access Default Setting Menu Contents property Authority Value Range If exists, fault 1) System type status displays. 2) Service Upon reminder maintenance 3) Inverter time, alarm code reminder displays. power line voltage 2) Voltage phase sequence Motor working current working...
  • Page 29 First-level Display Information Access Default Setting Menu Contents property Authority Value Range auto locked Change 0-999999 operator password Change user 0-999999 password Change 0-999999 factory password 0.10MPa upper Upper limit of limit intake 0.74MPa equipme pressure pressure 0.10MPa Preset value -upper intake 0.70MPa...
  • Page 30 First-level Display Information Access Default Setting Menu Contents property Authority Value Range (Power-line 0.10MPa drive – preset mode active) 0.62MPa unloadin Power-line loading pressure pressure 0.10MPa upper Power-line limit unloading 0.78MPa equipme pressure pressure Lower limit Upper limit of running main motor 50.00Hz...
  • Page 31 First-level Display Information Access Default Setting Menu Contents property Authority Value Range Control MDI fan temperat stopping ure- temperature Power-lin Power-line stopping starting temperat temperature ure-150 0 -Pow er-line Power-line starting fan stopping temperature temperat Lower limit Upper limit of 50.00Hz fan MDI MDI-100.
  • Page 32 First-level Display Information Access Default Setting Menu Contents property Authority Value Range Power-on self-detectin 6s-60s g time Power-line 10s-600s loading delay Preparation time 10s-360s for stopping Minimum 10s-2000 stopping 120s time under voltage Disabled Disabled protection Enabled enabled under voltage judging 320V-340 value- Under...
  • Page 33 First-level Display Information Access Default Setting Menu Contents property Authority Value Range Intake 0.50 stopping 1.00MPa MPa-1.3 pressure 0MPa Intake Upper limit of equipment 0.88MPa stopping pressure pressure -1.5MPa Air filter 100h-999 maintenance 2000h cycle Oil filter 100h-999 maintenance 2000h cycle Separator 100h-999...
  • Page 34 First-level Display Information Access Default Setting Menu Contents property Authority Value Range drive power-lin mode e1: MDI (Y- ), Power-line Direct drive mode start Y-type 4s-60s startup time Timed Disabled running function Enabled Timed Hour running time Accumulativ running Hour time P1/P2 0.20...
  • Page 35 First-level Display Information Access Default Setting Menu Contents property Authority Value Range main motor Transformati (1-9999): on ratio of 1000:1 fan CT2 0: none Thermal normally relay closed protection X6 normally opened 0: high power M.MDI Ver 1: low power (Main motor) 1.0s-600.
  • Page 36 First-level Display Information Access Default Setting Menu Contents property Authority Value Range Upper limit of 5.0%-150 125.0% torque Rated voltage 380V main motor Rated frequency of 50.00Hz main motor Main motor 0.80 0.10-0.95 power factor Motor rated 0.00A-65 45.0A current 5.00A Motor rated...
  • Page 37 First-level Display Information Access Default Setting Menu Contents property Authority Value Range parameters password Resume protectio factory parameters Set by air Compres Product 0-999999 Parameter factory, Model backup protected by factory password 0-999999 Made date 0-999999 factory Set current Factory Parameters setting factory...
  • Page 38 First-level Display Information Access Default Setting Menu Contents property Authority Value Range time Service plan 2000h reset Separator maintenan Total Read operating cleared only time Service plan 2000h reset Adding lube oil to Total Read motor operating cleared only time Service plan 2000h reset...

  • Page 39: Access Authority Of The Controller

    before browsing or making modification. “0” indicates you do not need to enter password “0/1” indicates you can browse without the need to enter password, but the operator’s authority is required. “1” indicates the operator’s authority is required. “2” indicates the authority of user or agent is required. “3”...

  • Page 40: Setting Of Function Parameters

    the lowest. The access authority corresponds to password. What authority you have is dependent on what password you enter. During unlocking, if you enter correct factory password, you can browse all the screens, and you can change the factory settings, user parameters, and you can even modify or clear user password and operating password.

  • Page 41: Data Backup And Management

    be modified in the current screen by pressing , modify parameters by pressing , and save the parameters by pressing the key If no parameters need to be modified, the key is disabled. 4.6 Data Backup and Management To facilitate the user to manage the data, the controller provides four commands: “Back up the current setting”, “Resume the previous setting”, “Resume factory settings”...

  • Page 42: Browse And Cancel Alarm Information

    This command is used to save the parameter settings as factory settings. The screw compressor manufacturer can set a batch of parameters using the software provided by Inovance, and perform parameter pre-setting operations in these three parameter areas simultaneously, so as to improve the production efficiency.

  • Page 43: Chapter 5 Description On How To Operate Screw Compressor

    Chapter 5 Description on How to Operate Screw Compressor 5.1 Precautions on Operation Notes: 1) Be sure to check whether the power cables and signal cables are correctly connected prior to first-time operation after wiring is complete. For the equipment that may be driven by power-line, connect the L1, L2 and L3 wires of the motor must correspondingly to terminals A, B and C of the controller that are used for detecting phase sequence so as to ensure correct detecting of phase sequence.

  • Page 44: Operate Screw Compressor In Power-Line Drive Mode

    5.4 Switch the Drive Mode For the screw compressor that uses the H0U-88B1G controller, both its main motor and fan can work in the MDI drive mode or power-line drive mode. For the screw compressor that is designed to support the inverter/power-line incompatible drive mode, if you need to switch the efesotomasyon.com...

  • Page 45: Description Of Control Process Of Screw Compressor Controller

    drive mode manually, please perform the switching in stop status of the screw compressor. Otherwise, short circuit may occur to electric arc at the output side of the inverter. If you operate the main motor’s inverter/power-line switch (X1) when screw compressor runs, the controller will make the screw compressor emergency stop.

  • Page 46: Control Process In The Power-Line Drive Mode

    Figure 5-1 Control process in the MDI drive mode After the MDI drives the main motor to run for 2 seconds, the controller opens the open the intake valve and adjusts the air outlet pressure through the PID operation. In normal running status, once you press the “Stop” command key, the controller will immediately turn off the solenoid valve to shut down the intake valve and reduce the output frequency of the inverter to lower limit of frequency, which makes the screw compressor continue to run...

  • Page 47: Control Of The Fan

    Because the screw compressor prevents reverse rotating, the controller will detect the phase sequence of the AC power supply of the compressor. If the phase sequence is abnormal, the controller will give an alarm and stop the system from entering running status. To reduce the surge current during startup of the motor, when the motor capacity is big, we usually use Y- startup mode.

  • Page 48: Handling Abnormal Signals

    output frequency of the inverter based on the current air outlet temperature (detected by PT1 terminal) of the screw compressor and the present control temperature so as to change intensity of heat radiation and keep the air outlet temperature stable at the preset temperature approximately.

  • Page 49: Chapter 6 Troubleshooting

    “Timed operation time”, the screw compressor will automatically stops and restrict startup until the parameter is modified or prevented by Inovance. 10) The controller provides the digital inputs for the faults such as air filter clog, oil filter clog, separator clog and fine separator clog.
  • Page 50 Phenomenon Possible Cause Checking Item Handling Method sequence error status of power sequence of power supply supply cable phase sequence Power supply “Actually under measured voltage parameter”. Temperature Check sensor wiring fault Pressure sensor Check fault wiring There is fault Inverter fault is prompt not cleared...
  • Page 51 Phenomenon Possible Cause Checking Item Handling Method connected becomes loose. function codes related to Check the FD inverter FD-00=5;FD-01=0 function codes communication FD-02=1;FD-05=0 of the inverter. are set incorrectly. Change the fan drive mode to If the fan is driven “Power-line”...
  • Page 52 Phenomenon Possible Cause Checking Item Handling Method been pressed, fault is normal. Check function codes. Check communication connection between RS485 inverter and the communication inverter controller cable. reports Err16 fault abnormal. fault The controller is normal if it is in the power-line powered down.
  • Page 53 Phenomenon Possible Cause Checking Item Handling Method modifications. Parameter Perform parameter Identification identification at zero by inverter is load of the motor not correct. Check whether there is a great Properly decrease outlet pressure PID is difference Kp (less than 2.0). pressure is not not set properly or Kp and Ti and...
  • Page 54 Phenomenon Possible Cause Checking Item Handling Method Check whether actually transformation measured Over current ratio setting current of the ”Ensure that occurs main motor “Protection current” power-line drive accurate. displayed greater than mode. main motor rated the controller is “rated current”. current setting is in line with the not accurate.
  • Page 55 Appendix: Description of alarm code of the MD320 Series inverter Alarm Code Description of Fault Normal, no fault alarm Inverter unit is in protection Acceleration over current Deceleration over current Constant speed over current Acceleration over voltage Deceleration over voltage Constant speed over voltage Control power supply fault Under voltage fault...

  • Page 56: Appendix: H0U-88B1G Optional Accessories

    Appendix: H0U-88B1G Optional Accessories Power-line current transformer The H0U-88B1G controller applies to the screw compressor system directly driven by power-line. By using current transformer (CT), the controller can: Detect the power-line current to the main motor or fan, Monitor the working status of the motor Implement short circuit, overload and lack phase protections of the motor.
  • Page 57 Prompt: When the CT sees current flow in the primary side, open circuit is prevented in the secondary side. Otherwise, high-voltage electric shock, personal injury or insulation resistance inside the CT may result. Thus, please carefully check and ensure cables are reliably connected before -57- efesotomasyon.com...
