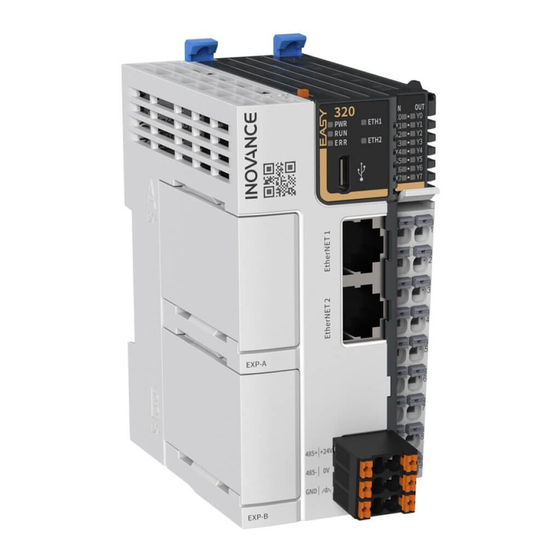

Inovance Easy320 User Manual

Programmable logic controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

*
*
*PS00005850A02*
P
P
S
S
0
0
0
0
0
0
0
0
5
5
8
8
5
5
0
0
A
A
0
0
2
2
*
*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Easy320 and is the answer not in the manual?

Questions and answers

Related Manuals for Inovance Easy320

Summary of Contents for Inovance Easy320

  • Page 1 *PS00005850A02*...

  • Page 3: Standards Compliance

    Preface ■ Introduction The Easy320 series PLC, a new generation of small PLC developed by Inovance, supports network switchover through two network ports and allows process packaging and reuse through FB/FC function. With RS485 and EtherCAT, a multi‑layer network communication can be realized through this PLC, with 16 modules extendable.

  • Page 4: Revision History

    ■ Warranty Inovance provides an 18‑month warranty to the equipment from the date of shipment (subject to the barcode on the product) for failure or damage that occurs during normal use. If otherwise agreed upon, the agreed terms and conditions shall prevail.
  • Page 5 Force majeure (such as natural disaster, earthquake, and lightning strike) and the ● secondary damage caused thereof The maintenance fee is charged according to the latest Maintenance Price List of Inovance. If otherwise agreed upon, the agreed terms and conditions shall prevail. For details, see Product Warranty Card. ‑ ‑...

  • Page 6: Fundamental Safety Instructions

    Use this product in environments meeting the design and specification ● requirements; otherwise, a fault may occur. Noncompliance‑caused malfunction or damage to parts are not covered in product quality warranty. Inovance shall take no responsibility for any personal injuries or property damage ● caused by improper usage. ■...
  • Page 7 Unpacking Do not install the equipment if you find any sign of damage, rust, or prior use on the ● equipment or accessories. Do not install the equipment if you find any sign of water seepage or missing or damaged ●...
  • Page 8 Installation Installation must be carried out by the specialists who have received the necessary ● electrical training and understood enough electrical knowledge. Ensure no unprofessional person has access to the equipment. Read through the guide and safety instructions before installation. ●...
  • Page 9 During installation, use a piece of cloth or paper to cover the top of the product to ● prevent metal chippings, oil, and water from entering into the product when drilling holes. Failure to comply will cause product malfunctions. After installation, remove the cloth or paper for effective ventilation and cooling.
  • Page 10 Do not connect the input power supply to the output end of the equipment. Failure to ● comply can result in equipment damage or even a fire. When connecting a drive to the motor, make sure the phase sequence of the drive and ●...
  • Page 11 Perform a trial run after wiring and parameter setting to ensure that the equipment ● operates safely. Failure to comply may result in personal injuries or equipment damage. Before power‑on, ensure that the nominal voltage of the equipment is consistent with ●...
  • Page 12 Perform routine and periodic inspection and maintenance on the equipment according ● to maintenance requirements and keep a maintenance record. Repair Only professionals are allowed to perform installation, wiring, maintenance, inspection ● or parts replacement on the equipment. Do not repair the equipment after power‑on. Failure to comply can result in the risk of ●...

  • Page 13: Safety Labels

    ■ Safety labels To ensure safe operations, comply with safety signs on the device, and do not damage or remove the safety labels. See the following table for descriptions of the safety labels. Safety Label Description Read through the safety instructions before operating the equipment. ●...

  • Page 14: Product Information

    08: 8 outputs Series No. ④ Output type ② 3: Without EtherCAT TN: SINK transistor 2: Two Ethernet interfaces 0: Model serial number ■ Nameplate Model Description Code Easy320‑0808TN Easy300 series programmable 01440325 controller with 8 inputs and 8 outputs ‑ ‑...
  • Page 15 Components ‑ ‑...
  • Page 16 Terminal Terminal Assignment Indicator Description Type Code color Solid ON: Indicates the ① ● input or output is active. indicator I/O status Yellow‑ IN/OUT OFF: Indicates the input or display green ● output is inactive. Solid ON: Indicates that the ●...
  • Page 17 Terminal Terminal Assignment Indicator Description Type Code color Extension EXP‑A/EXP‑B Function ‑ For details of extension card ⑤/‑ card slot extension options, see " Appendix: ⑥ Extension Card Options " on page 38 485+ RS485 ‑ ‑ communica‑ tion signal+ 485‑...

  • Page 18: Product Specifications

    Product Specifications 1.3.1 General Specifications Item Specifications Program data 128 k‑step user program capacity 1 Mb user‑defined variables, in which 128 kb variables are retentive at power failure About 150 k soft elements (Elements after No. 1000 are retentive at power failure.) Speed 20 k‑step user program executed in 2 ms...

  • Page 19: Power Supply Specifications

    Item Specifications Extension Supports up to two extension cards. card Program LD, SFC, FB/FC function (LD) supported language Type‑C Supports user program download/upload and firmware upgrade through type‑C or GE20–TF extension card. IP rating IP20 Dimensions 53 mm x 100 mm x 80 mm (W x H x D) Weight About 184 g...

  • Page 20: Output Specifications

    Item Specifications Input current at input ON ＞ 4 mA Input current at input OFF ＜ 2.5 mA High‑speed input Hardware response time 2 us (RC time) (X0–X7) Max. input frequency 200 kHz Input impedance 3.4 k ON voltage ≥ 15 VDC OFF voltage ≤...
  • Page 21 Item Specifications Output load 0.5 A/point; 2 A/8‑point (resistive load) Output load 7.2 W/point; 24 W/8‑point (inductive load) Output load 5 W/point, 18 W/8‑point (lamp load) High‑speed output Hardware < 1 us (OFF→ON); < 2 us (ON→OFF) (Y0 to Y7) response time ON/OFF Load current...

  • Page 22: Mechanical Installation

    2 Mechanical Installation Installation Environment Take the operability, serviceability, and adaptability to environment into account when installing the PLC. Item Specification Working Free from corrosive and flammable gas, as well as excessive conductive environment dust Altitude Up to 2000 m ( 80 kPa) Pollution degree Immunity...
  • Page 23 Item Specification Operating temperature: ‑20 °C to +55 °C (horizontally), ‑20 °C to +45 °C Operating ● (non‑horizontally) temperature/ Relative humidity: ＜ 95% RH (without condensation) humidity ● Note: Install a fan or air conditioner in the direction of the cooling hole when the operating temperature is greater than the maximum temperature.
  • Page 24 Item Specification Installation Installation position: The PLC can be installed in four directions as shown position and " 2.2 Installation Position " on page 23 limit Limit: When installed horizontally: ● ■ Input derating: The PLC can operate with full load at ambient temperature of 45℃.

  • Page 25: Installation Position

    Installation Position This product can be installed in four positions (namely four installation directions): horizontally, vertically, and top or bottom of the cabinet. It is recommended to install the PLC horizontally. Different installation positions require different operating temperatures and limits. For details, see "...

  • Page 26: Other Installation Positions

    ■ Other installation positions The surrounding clearance required on other installation positions are the same as the optimal one. Other installation positions are shown in the diagram below. In case of vertical installation: Install the PLC below all I/O modules. ●...

  • Page 27: Installation Dimensions

    Do not connect/disconnect the module with power ON. This may lead to master restart or user data loss or damage. Prevent the master, module enclosure, or terminals from dropping or suffering ● from impact or shock. Installation Dimensions The installation dimensions (in mm) are shown in the figure below. Installation Methods The module is mounted onto a DIN rail that complies with IEC 60715 (width: 35 mm, thickness: 1 mm).

  • Page 28: Installing The Master

    When installed on a DIN rail other than the recommended one (especially the one whose thickness is not 1.0 mm), the module will not fit in place as the mounting hook does not work. ■ Installing the master 1. Align the module with the DIN rail and push the module in the direction indicated by the arrow until you hear a clicking sound, as shown below.
  • Page 29 Keep the mounting hook locked when the controller is not mounted on the rail. If the mounting hook is kept unlocked for an extended period of time, it may malfunction. ■ Installing the module to the master Install the extension module to the master through top and bottom rails, as shown below.

  • Page 30: Removing The Module

    ■ Removing the module Pry the mounting hook upwards with a tool such as a straight screwdriver or similar, and pull out the module forwardly. Then press down the top of the mounting hook. ‑ ‑...

  • Page 31: Electrical Installation

    3 Electrical Installation Layout of Terminals Terminals on the Terminals on the right Signals on the left Terminals on the left right X0 input Y0 output X1 input Y1 output X2 input Y2 output X3 input Y3 output X4 input Y4 output X5 input Y5 output...
  • Page 32 Check the silk print on both sides of the terminal to prevent wrong cable ● connection. Failure to comply may lead to short circuit, which can damage the components. The total extended length of high‑speed I/O interface extension cable must ●...
  • Page 33 ■ SOURCE input wiring Wiring of Output Terminals Note Connect a flywheel diode when connecting the external inductive load. Diodes can be 1N4001 or similar. ‑ ‑...

  • Page 34: Communication Connection

    4 Communication Connection Networking This PLC can be connected to other sites, ERP, MES and other systems through Ethernet interface, or communicate with PC and HMI through GE20‑232/485 extension card. With GE20‑CAN‑485 extension card and CAN bus communication, an all‑in‑one network can be achieved in MD800, as shown below.

  • Page 35: Cable Connection

    Material Applicable cross sectional Suzhou Yuanli name area GB/mm Model Crimping Model Crimping tool tool E0308 0308 E0508 0508 Tubular 0.75 E7508 KST2000L 7508 YAC‑5 E1008 1008 E1508 1508 If you use other types of tubular lug, crimp the lug to the twisted pair as shown below. Cable Connection ■...

  • Page 36: Ethernet Communication

    Description Terminals on the left Terminals on the Description right RS485 differential 485+ +24V 24 VDC power supply pair (+) RS485 differential 485‑ 24 VDC power supply (‑) pair (‑) Communication grounding terminal of RS485 Communication specifications ● Item Description Number of channels supported Three channels at most (one built‑in and two extended in the extension card,...
  • Page 37 Disconection: Pull out the connector by pressing the tail of the registered jack. ● RS485 Communication Instructions It is recommended to use a shielded twisted pair cable as the RS485 bus. Connect a 120 Ω termination resistor to both ends of the bus respectively to prevent signal reflection.

  • Page 38: Operation And Maintenance

    PLC. If the model and password are both correct but the programming failure still occurs, contact Inovance for technical support.
  • Page 39 SD Card Firmware Upgrade 1. Load the SD card (maximum capacity 32 GB, file format FAT32) to the TF extension card and the PLC. Install the TF extension card with power off. 2. Power on the PLC again. The RUN and ERR indicators flash quickly for 3s, indicating that the firmware upgrade begins.
  • Page 40 Appendix: Extension Card Options Model Type Description Slot GE20‑4DI Digital input/ 4 inputs output 24 VDC input Source/Sink GE20‑4DO‑TN 4 transistor sink outputs 24 VDC output GE20‑ Analog input/ 2 analog inputs and 1 analog 2AD1DA‑I output output (current type) GE20‑...
