Inovance H1U-0806MT User Manual

H Series PLC
1U
User Manual
Data: 19010084 V0.0
Thank you for purchasing the PLC of Inovance control technology co., Ltd.
Before using H series PLC, please read this manual carefully in order to use the products correctly.
2U
This manual mainly describes specifi cations, features and usage of H
2U
set summaries for easy reference. For both the user program development environment usage and programming
methods of this product, please refer to our company's "Auto-Shop programming software user's Guide "," H
series PLC programming reference manual " and " H series communication manual".
2U
Features of H Series Programmable Controller:
1U
Building-in large program memory space without an external extension memory card, it can up to 8K steps.
User program and all the power-down devices can be permanent backup in the power-off status, and the real-
time clock can keep at least 20 days in power-down situations without batteries (power-on time is longer than 5
minutes).
Provide high-speed multi-channel and high frequency I/O ports as well as excellent operation and positioning
control functions.
Integrate two independent communication ports, providing excellent communication protocols and MODBUS
instruction, which is convenient for system integration.
Comprehensive encryption features can protect users' intellectual property rights.
With powerful networking and support CAN-BUS.

Safety Precautions

DESIGN PRECAUTIONS

Danger
Provide a safety circuit on the outside of the PLC so that the whole system operates to ensure the safety even
when external power supply trouble or PLC failure occurs. To be considered in the design includes:
● On the outside of the PLC, an emergency stop circuit, a protection circuit, an interlock circuit, or a positioning
limit circuit may be necessary for preventing damage to the machine.
● Ensure the safe operation of equipment, please design external protection circuit and safety mechanics for
the PLC output signals.
● When the PLC CPU detects the system abnormal, all outputs may be turned off. During the controller circuit
failure, it may cause the output out of controlled. Design external circuits to ensure safe operations of the
machine in such a case.
● When some sort of error occurs in a relay or transistor of the output unit, output may be kept on or off.
● PLC design is applied to the indoor electric environment, its power system-level should have lightning
protection device, make sure that they will not lightning imposed on the PLC power input-side or signal input,
control output terminal, avoid damage the device.

INSTALLATION PRECAUTIONS

Note
!
● Do not use the PLC in the place of dust, oil smoke, conducting dust, corrosive gas, and combustible gas,
exposure to the high temperature, dew, wind and rain, vibration and shock. Electric shock, fire, operator
errors can also cause the product damage and deterioration.
● When processing for screw holes and wiring, do not make the metal fi lings and wires falling into the controller
ventilation hole, this may cause a fi re, failure, and malfunction.
● When the installation work of the new PLC is over, it needs to ensure that there is no foreign body on the face
of ventilation, including dust-proof and so on, otherwise, it may cause poor heat dissipation during running, a
fi re, failure and malfunction.
● Avoid charged state for wiring and plugging the cable plug, otherwise easily cause electric shock, or cause
damage to the circuit.
● The Installation and wiring should be fi xed and reliable, poor contact may cause incorrect operation.
● If there is serious interference, the communications and high-frequency signal cable should be shielded
cables, to improve system anti-interference capacity.

WIRING PRECAUTIONS

Danger
● Turn off all the power supply externally before installation or wiring work in order to avoid electric shock or
damage of product.
● Please connect AC power supply to the special terminal.
● Make sure to attach the terminal cover offered as an accessory to the product before turning on the power or
starting the operation after installation or wiring work.
● When processing for screw holes and wiring, do not make the metal fi lings and wires falling into the controller
ventilation hole, this may cause a fi re, failure, and malfunction.
Note
!
● For of the main unit terminal or the extension unit terminal do not use external power supply. Do not wire
vacant terminals externally.
● For applications where serious interference, high-frequency signal input or output cable selection shielded
cables should be to enhance the system of anti-interference capacity.
● Please use the wire above 2mm2 to avoid connecting the grounding terminal at the same point as a heavy
electrical system.

STARTUP AND MAINTENANCE PRECAUTIONS

Danger
● Do not touch any terminal while the PLC is power on. Doing so may cause electrical shock or malfunctions
● Before cleaning or retightening terminals, externally cut off all phases of the power supply. Failure to do so
may expose you to shock hazard.
● Please connect or remove the wire, the extension module and control unit wire after cutting off all power
supply, otherwise it may cause failures and malfunctions.
● For online modify, coercible output, RUN, STOP and so on, you should read the instruction manual, and
operate the PLC after fully confi rm its safety.
Note
!
● When handling extension card, be sure to cut off the power supply.
● Please follow the industrial wastes disposal for the waste products.

Product Information

Designation Rules
series PLC, and there are PLC instructions
2U
Product Information
Series No.
Input points
Output points
Module classifi cation
Output type
Power Supply type
Special function identifi cation

Basic Parameters

Table 1 Basic Parameters
Model Total I/Os
H -0806MR
1U
14
H -0806MT
1U
H -1410MR
1U
24
H -1410MT
1U
H -1614MR
1U
30
H -1614MT
1U
General Specifi cations
Table 2 General Specifi cations
Environmental parameter
Type Parameter
Low Temperature
Ambient
Temperature
High Temperature
Humidity Relative Humidity
Low Pressure
Atmospheric
Pressure
High Pressure
Displacement
Sine Vibration
Acceleration
Acceleration
Spectral Density
Random
vibration Frequency Range
Vibration Direction
Type
Shock
Acceleration
Dipping
Dipping
Height

Mechanical Design Reference

Mounting Dimension

H -0806MRAX
1U
1 2 3 4 5 6 7 8
H: Inovance controller
1U: 1U series controller
08: 8 points input
06: 6 points input
M: Main module of general purpose controller;P: Positioning controller;
N: Network controller;E: Expansion module
R: Relay output type;T: Transistor output type
A: AC 220V Input omitted default:AC220V;B: AC110V input;
C: AC24V input;D: DC24V
Such as high speed I/O and analog function, etc.
I/O Features
Total I/Ps Hi-speed I/Ps Input voltage Total O/Ps Hi-speed O/Ps
/ Relay
Two 60 kHz
8 DC24V 6
Four 10 kHz
Three 100 kHz Transistor
/ Relay
Two 60 kHz
14 DC24V 10
Four 10 kHz
Three 100 kHz Transistor
/ Relay
Two 60 kHz
16 DC24V 14
Four 10 kHz
Three 100 kHz Transistor
Storage ambient
Transport ambient
Ambient condition
condition Type
Unit condition Parameter
Climatic- condition Ambient temperature Low temperature
High temperature
% Humidity Relative humidity
kPa Atmospheric pressure Low pressure
kPa High pressure
mm Mechanica-l stress Sine vibration Displacement
m/s 2 Acceleration
2 3
m /s (dB/Oct) Random vibration Acceleration spectral density
Hz Frequency range
/ Vibration direction
/ Shock
m/s 2 Acceleration
Dipping
m Dipping
height
Fig.1 Mounting Dimension Diagram
Table 3 Mounting Dimension
Model Total I/Os
A mm
H -0806M_ 14 62
1U
H -1410M_ 24 83
1U
H -1614M_ 30 100
1U

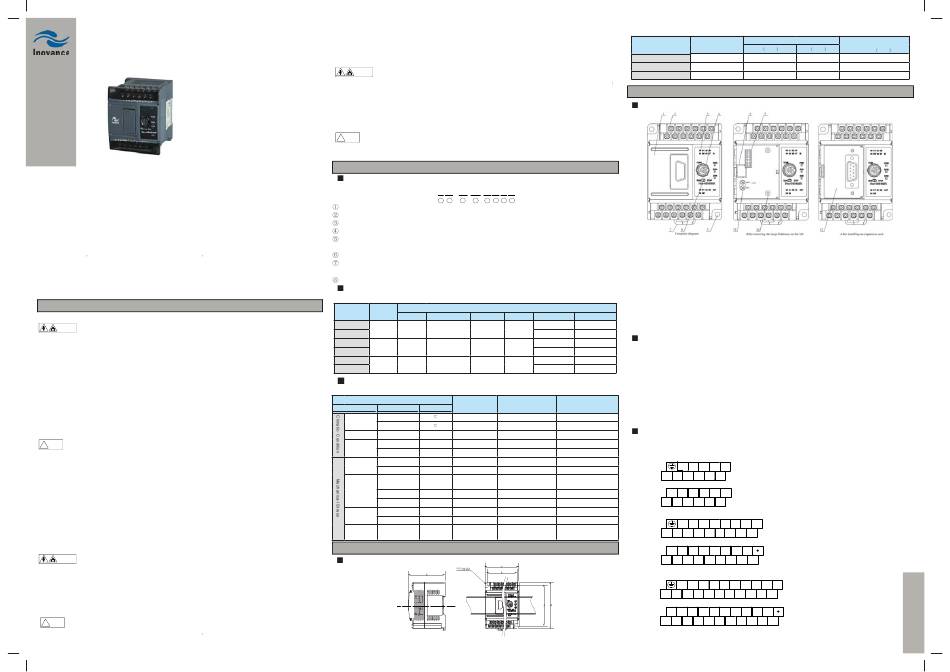

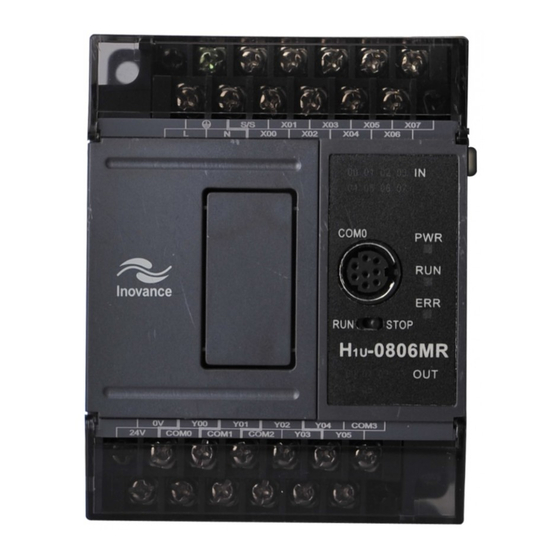

Product Structure
Product Structure
Fig2 Product Structure Diagram
Component names and Function descriptions:
1. Big foldaway
2. Power supply, auxiliary power supply and removable terminal for input signal
3. LEDs for indicating the input status
4. Download port for user program
5. Mounting screw holes(two)
6. RUN/STOP switch
7. Buckle for two DIN rail mounting
8. System program download port (Do not operate for non-professional)
9. Special function expansion card interface
10. Special function expansion card fi xed bolts(Screw specifi cation: M2.6×6)
Output Type
11. Wiring terminal for RS485 communication port
12. Special function expansion card(Available only after the user selection and installation)
System Expansion
H1U series PLC supports only remote the expansion modules, do not support the local expansion modules. If
you need to connect the remote expansion modules to conduct the function expansion, you need to install CAN-
BUS communication expansion cards, and then conduct networking connection via CAN-BUS communication
expansion cards and remote expansion modules. The model of CAN-BUS communications expansion card is
H1U-CAN-BD which should be purchased separately, as well as making sure that the main module of the software
version supports CAN-BUS functions. Otherwise the networking can not be performed. Please refer to the "H1U-
CAN-BD user manual," for the application of H1U-CAN-BD, refer to "H2U series expansion module user manual"
for the application of remote expansion modules, and refer to "H1/2U PLC instruction and programming manual."
for CAN-BUS functions.
System can be extended up to 64 points (support CAN-BUS devices), including the main module. As long as the
CAN-BUS protocol meets any device that can be hung on the bus.

Hardware Interface

Terminal Block Defi nition
Terminal block defi nition of H1U-0806MR, H1U-0806MT
S/S X1 X3 X5 X7
L N X0 X2 X4 X6
0V Y0 Y1 Y2 Y4
COM3
Y3 Y5
24V COM0 COM 1 COM2
Type
Terminal block defi nition of H1U-1410MR, H1U-1410MT
S/S X1 X3 X5 X7 X11 X13 X15
L N X0 X2 X4 X6 X10 X12 X14
0V Y0 Y1 Y2 Y3 Y5 Y6 Y10
24V Y4 Y7 Y11
COM0 COM 1 COM 2 COM3 COM4
Terminal block defi nition of H1U-1614MR, H1U-1614MT
S/S S/S X1 X3 X5 X7 X11 X13 X15
L N S/S X0 X2 X4 X6 X10 X12 X14
0V Y0 Y1 Y2 Y4 Y7 Y11 Y12
C OM 3
24V Y3 Y5 Y6 Y10 Y13
C OM 0 C OM1 C OM2 C OM4
Physical Dimension
Mounting Dimension
B mm
W×H×D mm
80 70×90×75
80 93×90×75
80 110×90×75
X17
X16
Y14
Y15
