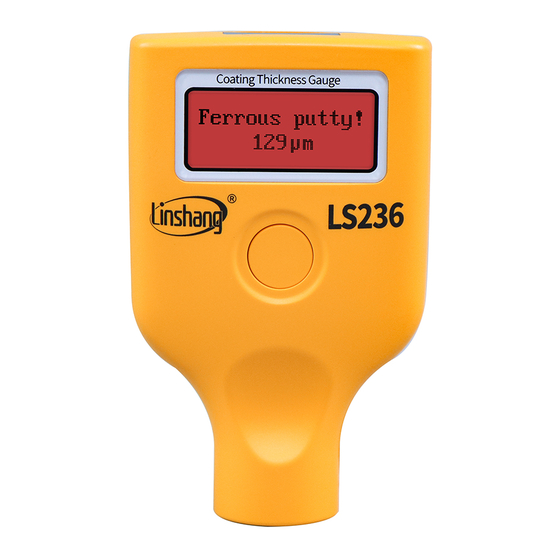

- Page 1 Shenzhen Linshang Technology Co., Ltd. LS236 Coating Thickness Gauge User Manual V2.0 Please read this manual carefully before using and reserve it for reference. 3/12/2022 Page 1 of 8...
- Page 2 Shenzhen Linshang Technology Co., Ltd. I. Product Introduction The coating thickness gauge is professionally used for measuring the thickness of car paint. The car body shell material is generally metal materials such as iron, aluminum and non-metallic materials such as carbon fiber, plastic, etc. The coating thickness gauge can measure the car paint thickness on iron and aluminum substrates.
- Page 3 Shenzhen Linshang Technology Co., Ltd. Measuring interval 0.5s Minimum measuring area Ø = 25mm Minimum curvature Convex:5mm / Concave:25mm Minimum substrate thickness Fe:0.2mm / NFe:0.05mm Display Front: 128×48 dot matrix LCD, top: 128×64 dot matrix OLED Power supply 2 pcs of 1.5V AAA alkaline battery Operation temperature range -40℃-50℃...
- Page 4 Shenzhen Linshang Technology Co., Ltd. remain stable to ensure a very good reproducibility over the complete measuring range. IV. Operation 1. Power on/off Power on: Short press the power button to turn on the gauge. Display the version number and serial number, then the recorded data of last measurement are displayed after the gauge is turned on.
- Page 5 If this is not possible, please use the zero reference plates supplied by Linshang technology, there are Fe plate and NFe plate, please choose correctly according to the measuring materials.
- Page 6 Shenzhen Linshang Technology Co., Ltd. please make sure the probe tip is placed perpendicularly and evenly on the surface. 3.2 Hold the probe still, long press the button for 3s, the gauge will display “zero reference place probe” (as shown in below picture).
- Page 7 Shenzhen Linshang Technology Co., Ltd. 2) Press the probe against the tested object surface vertically. Keep the probe stable, do not tilt or shake. Measurement value will appear on the display with buzzer alerts. 3) To continue the measurement, you can lift off the probe away from the object to be measured, and then follow step 2) again.
- Page 8 2. Provide users with spare parts and lifelong maintenance services. 3. Provide the users with the gauge calibration service. 4. Free technical support for long term. Manufacturer: Shenzhen Linshang Technology Co., Ltd. Website: www.linshangtech.com Service hotline: +86-755-86263411 Email: sales21@linshangtech.com...
