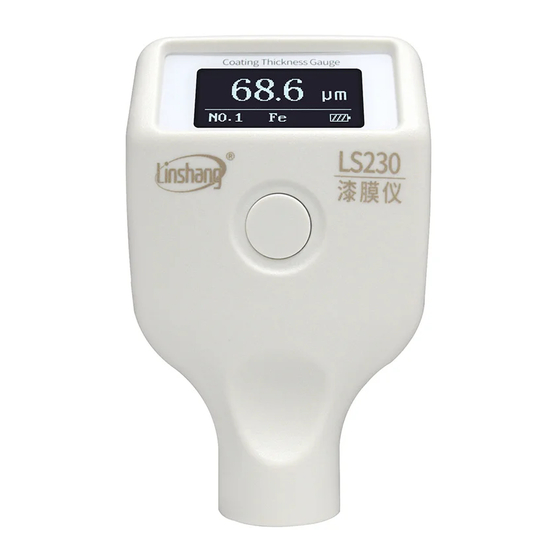

- Page 1 Shenzhen Linshang Technology Co., Ltd LS230 Coating Thickness Gauge User Manual V2.0 Please read this manual carefully before using and reserve it for reference. 7-29-2020 Page 1 of 8...
- Page 2 Shenzhen Linshang Technology Co., Ltd I. Product introduction Coating thickness gauge is used for measuring the thickness of automobile paint. The automotive body shell consist of metal materials such as iron and aluminum and other non-metallic materials such as carbon fiber and plastic. This coating thickness gauge can measure the thickness of car paint on iron and aluminum materials.
- Page 3 Shenzhen Linshang Technology Co., Ltd Minimum curvature Convex:5mm / Concave:25mm Minimum substrate thickness Fe:0.2mm / NFe:0.05mm Display 128 * 64 dot matrix OLED Power supply 2pcs of 1.5V AAA alkaline battery Range of operation temperature -40℃ - 50℃ Storage temperature range -50℃...
- Page 4 Shenzhen Linshang Technology Co., Ltd Short press the power button to turn on the gauge. Display the version number and serial number, then the recorded data of last measurement are displayed after the gauge is turned on. Power off: Long press the button to shut down the gauge, or the gauge will automatically shut down in 3 minutes without any operation.
- Page 5 If this is not possible, please use the zero reference plates supplied by Linshang technology, there are Fe plate and NFe plate, please choose correctly according to the measuring materials.
- Page 6 Shenzhen Linshang Technology Co., Ltd 3.3 After hearing a buzzer sound, the gauge will display “Lift off probe at least 15 cm” (as shown in below picture), release the button and lift the probe away from the plate (substrate) for at least 15 cm.
- Page 7 Shenzhen Linshang Technology Co., Ltd 4) When the device identifies the ferrous putty, the buzzer alerts for two times. And the interface of the device will prompt: “Ferrous putty”. When the device identifies the galvanized iron, it will turn on the green backlight.
- Page 8 Provide users with spare parts and lifelong maintenance services. Provide the users with the gauge calibration service. Free technical support for long term. Manufacturer: Shenzhen Linshang Technology Co., Ltd. Website: www.linshangtech.com Service hotline: +86-755-86263411 Email: sales21@linshangtech.com...
