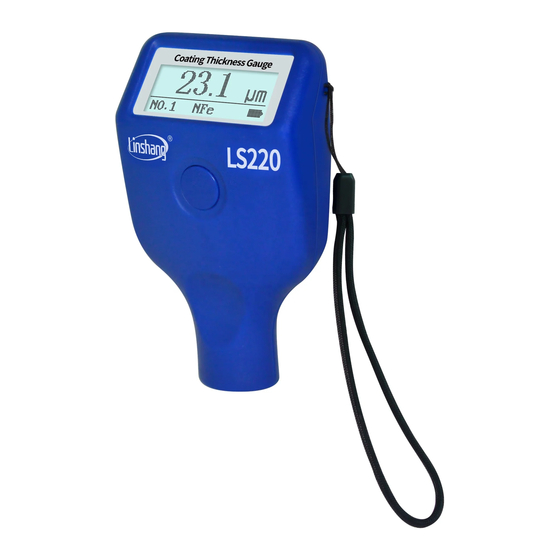

- Page 1 Shenzhen Linshang Technology Co., Ltd LS220 Coating Thickness Gauge User Manual V2.0 Please read this manual carefully before using and reserve it for reference. 3/12/2022 Page 1 of 7...
- Page 2 Shenzhen Linshang Technology Co., Ltd I. Product introduction Coating thickness gauge is used for measuring the thickness of automobile paint. The automotive body shell consist of metal materials such as iron, aluminum and other non-metal materials such as carbon fiber and plastics. This coating thickness gauge can measure the thickness of car paint on iron and aluminum materials.
- Page 3 Shenzhen Linshang Technology Co., Ltd Display 128×48 dot matrix LCD Power supply 2pcs of 1.5V AAA alkaline battery Operation temperature range -20℃-50℃ Storage temperature range -20℃-60℃ Gauge size 101*62*28 mm Weight(with battery) III. Product advantages 1. No calibration, just zero adjustment.
- Page 4 Shenzhen Linshang Technology Co., Ltd 2. Device setting In the off state, long press the button for 3 s to enter the setting interface. After entering the setting interface, if there is no operation for more than 20 s, the instrument will automatically Shortly press the button can select the settings;...
- Page 5 If this is not possible, please use the zero reference plates supplied by Linshang technology, there are Fe plate and NFe plate, please choose correctly according to the measuring materials.
- Page 6 Shenzhen Linshang Technology Co., Ltd 3.4 The zero adjustment completed when there is the buzzer sound again, and the LCD screen displays 0.0. 3.5 After the zero adjustment is completed, place the standard film on the plate (substrate), if the measurement value is stable and deviation from standard value within ±3μm, the gauge can be used...
- Page 7 2. Provide users with spare parts and lifelong maintenance services. 3. Provide the users with the gauge calibration service. 4. Free technical support for long term. Manufacturer: Shenzhen Linshang Technology Co., Ltd. Website: www.linshangtech.com Service hotline: +86-755-86263411 Email: sales21@linshangtech.com...
