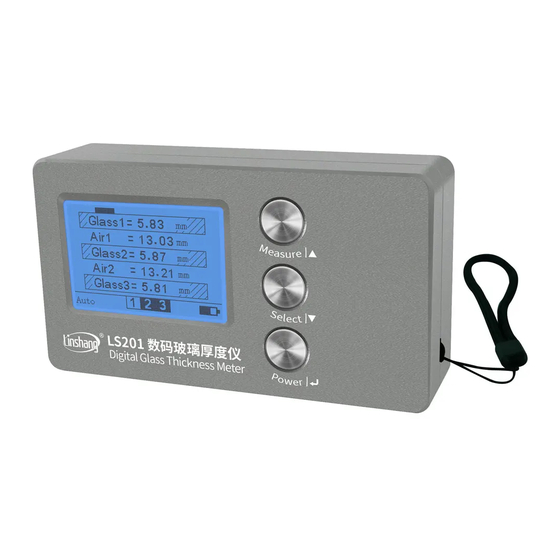

- Page 1 Shenzhen Linshang Technology Co., Ltd LS201 Digital Glass Thickness Meter User Manual V2.0 Please read this manual carefully before using and reserve it for reference. 7-29-2020 Page 1 of 8...
- Page 2 Shenzhen Linshang Technology Co., Ltd I. Product introduction This instrument use optical reflection principle to measure the glass thickness.Just putting the meter on the surface of the glass, it can test thickness of triple glazing, double glazing, laminated glass and other kinds of glass.
- Page 3 Shenzhen Linshang Technology Co., Ltd 5. Measure/▲ In the measuring result interface, short press “Measure/▲” to get a new measurement. In the measuring setting interface, short press “Measure/▲” to roll up selection or increase 1 from the number. IV. Instrument Setting The meter need to set the “Language mode”...
- Page 4 Shenzhen Linshang Technology Co., Ltd Manual mode If select manual mode, short press “Power/ ” will confirm and enter into the material type setting interface, the default setting of first layer is glass, from the second layer, there are three options: glass, air and none.
- Page 5 Shenzhen Linshang Technology Co., Ltd Triple glazing Double glazing Laminated glass with one layer air Laminated glass V. Measuring Operations Attach the back of the instrument closely to the tested glass surface, short press “Measure/▲” to enter into the measuring state, Maybe there are several kinds of results, short press “Select/▼” to view different results.
- Page 6 Shenzhen Linshang Technology Co., Ltd In the “Manual” mode, the measuring result of laminated glass as shown below: “G1“ means the first layer of glass, “G2“ means the second layer of glass, and “G1+G2“ means the total thickness value of two layers of glass, the measured value is 8.31mm. This result(G1+G2)means it’s unable to identify the position of the laminate inner-layer.
- Page 7 Shenzhen Linshang Technology Co., Ltd In order to improve the measurement accuracy, try to prevent the back of the meter from directly facing the sunlight. This product emits a laser beam from the back side. Do not point the laser at anyone’s eyes.
- Page 8 Shenzhen Linshang Technology Co., Ltd Service hotline: 086-755-86263411 Email: sales21@linshangtech.com 7-29-2020 Page 8 of 8...
