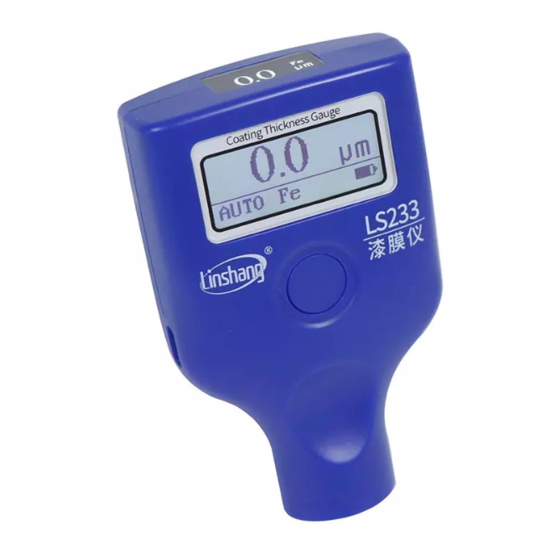

- Page 1 Shenzhen Linshang Technology Co., Ltd. LS233 Coating Thickness Gauge User Manual V2.0 Please read this manual carefully before using and reserve it for reference. 3/12/2022 Page 1 of 8...
- Page 2 Shenzhen Linshang Technology Co., Ltd. I. Product Introduction The coating thickness gauge is professionally used for measuring the thickness of car paint. The car body shell material is generally metal materials such as iron, aluminum and non-metallic materials such as carbon fiber, plastic, etc. The coating thickness gauge can measure the car paint thickness on iron and aluminum substrates.
- Page 3 Shenzhen Linshang Technology Co., Ltd. Measuring interval 0.5s Minimum measuring area Ø = 25mm Minimum curvature Convex:5mm / Concave:25mm Minimum substrate thickness Fe:0.2mm / NFe:0.05mm Display Front: 128×48 dot matrix LCD, top: 128×64 dot matrix OLED Power supply 2 pcs of 1.5V AAA alkaline battery Operation temperature range -40℃-50℃...
- Page 4 Shenzhen Linshang Technology Co., Ltd. IV. Operation 1. Power on/off Power on: Short press the power button to turn on the gauge. Display the version number and serial number, then the recorded data of last measurement are displayed after the gauge is turned on.
- Page 5 If this is not possible, please use the zero reference plates supplied by Linshang technology, there are Fe plate and NFe plate, please choose correctly according to the measuring materials.
- Page 6 Shenzhen Linshang Technology Co., Ltd. 3.3 After hearing a buzzer sound, the gauge will display “Lift off probe at least 15 cm” (as shown in below picture), release the button and lift the probe away from the plate (substrate) for at least 15 cm.
- Page 7 Shenzhen Linshang Technology Co., Ltd. When the device identifies the ferrous putty, the buzzer alerts for two times. And the interface of the device will prompt: “Ferrous putty”. When the device identifies the galvanized iron, it will turn on the green backlight.
- Page 8 2. Provide users with spare parts and lifelong maintenance services. 3. Provide the users with the gauge calibration service. 4. Free technical support for long term. Manufacturer: Shenzhen Linshang Technology Co., Ltd. Website: www.linshangtech.com Service hotline: +86-755-86263411 Email: sales21@linshangtech.com...
