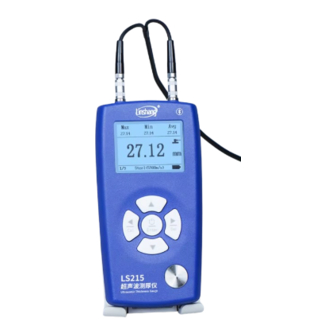

- Page 1 Shenzhen Linshang Technology Co., Ltd. LS215 Ultrasonic Thickness Gauge User Manual V1.0 Please read this manual carefully before using and reserve it for reference.
-
Page 2: Product Introduction
Shenzhen Linshang Technology Co., Ltd. I. Product introduction Ultrasonic thickness gauge adopts the principle of the reflected plus ultrasonic measurement, which is specialized in thickness measurement of materials that can transmit ultrasonic waves such as metals (e.g. steel, aluminum, copper, etc.), plastics, ceramics, glass, etc. The instrument employs a professional design of time-chip with a resolution of up to 0.01 mm. - Page 3 Shenzhen Linshang Technology Co., Ltd. 100-320mm:0.1mm Sound Velocity Range 1000~9999m/s Display 240×160 dot matrix LCD Unit mm/inch Power Supply 2pcs of 1.5V AA alkaline battery Host Size 142*72*28 mm Weight About 230g Operation Temperature -10~50℃，0~85%RH（No condensation） Range Storage Temperature Range -10~60℃，0~85%RH（No condensation）...
-
Page 4: Operation
Shenzhen Linshang Technology Co., Ltd. IV. Operation 1. Turn on/off Turn on: Short press on the button to boot, the version number and a serial number of the instrument will be displayed, and then enter the interface of benchmark adjustment. - Page 5 Shenzhen Linshang Technology Co., Ltd. (1) Statistical mode The interface of statistics mode is shown in the figure below (left). The instrument simultaneously displays the maximum, minimum and average values of the current statistical data, as well as the number of valid data. The number of statistics is the latest 9 valid measurements. When it is less than 9 data, the actual data volume shall prevail.
-
Page 6: Setting And Calibration
Shenzhen Linshang Technology Co., Ltd. 5. Setting and Calibration A long press on the button for 3 seconds in the off state or a short press on the button in the measurement state enters the [main menu] of the instrument. There are sixsub-options. The user can... - Page 7 Shenzhen Linshang Technology Co., Ltd. Language: Short press the button to enter the language selection. These two buttons are available to select language. A short press on the button completes the setting. Unit: Short press on the button to enter the unit selection. These two buttons are available to select units.
- Page 8 Shenzhen Linshang Technology Co., Ltd. Set by material: The user can set the sound velocity according to the known material. Short press the button to enter the interface of material selection, and short press the buttons select the corresponding materials. A short press on the button confirms the selection.
- Page 9 Shenzhen Linshang Technology Co., Ltd. Manual input: Short press the button to enter the interface of setting the sound velocity manually and short press the buttons to adjust the value. The user can check whether the thickness displayed on the interface is consistent with the thickness of the currently measured material during the adjustment process.
- Page 10 Shenzhen Linshang Technology Co., Ltd. 6. Quickly set the sound velocity In the measurement mode, when the measurement is completed, short press the button- to enter the interface of the sound velocity manual setting, and adjust the current sound velocity according to the measured value.
-
Page 11: App Installation
Shenzhen Linshang Technology Co., Ltd. VI. APP Function 1. APP Installation The measuring instrument APP supports 7.0 and above Android operating system, search “UT and HL” on google play, follow the instructions to download and install the APP. APP icon... - Page 12 Shenzhen Linshang Technology Co., Ltd. Bluetooth connection interface If the APP has a bound Bluetooth device, the logo interface will automatically search and connect the bound Bluetooth device after 3 seconds, and the successful connection will automatically enter the "measurement" interface.
-
Page 13: Measurement Interface
Shenzhen Linshang Technology Co., Ltd. Measurement interface 3. Measurement interface (1) Bluetooth connection status The APP is connected successfully, the upper right corner of the interface shows "Connected", and the APP is disconnected, showing "Not connected". When not connected, tap it, and the APP will automatically reconnect the bound device. - Page 14 Shenzhen Linshang Technology Co., Ltd. (5) Instrument information Display instrument setup material, unit, connected probe type. (6) Create groups Click Create Groups icon to automatically save the previous group and generate a new group. (7) All groups Click All Groups icon to select a set of data for open and delete operations.
-
Page 15: Packing List
Shenzhen Linshang Technology Co., Ltd. scratched on the rough surface. Try to reduce the sliding of the probe on the rough surface. If the probe is seriously worn, it should be replaced in time. 6. When the instrument has worked for a long time, it is recommended to perform reference calibration to avoid the influence of the external environment on the instrument. - Page 16 Shenzhen Linshang Technology Co., Ltd. Shenzhen Linshang Technology Co., Ltd. Website: www.linshangtech.com Service hotline: +86-755-86263411 Email: sales21@linshangtech.com...
