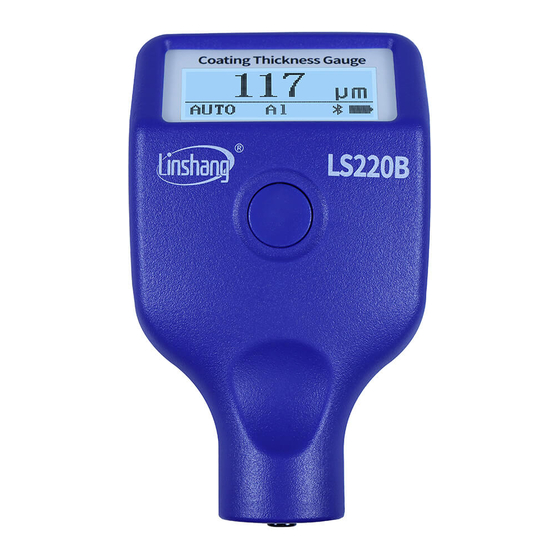

Coating thickness gauge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Shenzhen Linshang Technology Co., Ltd.
LS220B
Coating Thickness Gauge
User Manual V2.0
Scan the QR code download and install the App
Please read this manual carefully before using and reserve it for reference.
3/12/2022
Page 1 of 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS220B and is the answer not in the manual?

Questions and answers

Related Manuals for LINSHANG LS220B

Summary of Contents for LINSHANG LS220B

  • Page 1 Shenzhen Linshang Technology Co., Ltd. LS220B Coating Thickness Gauge User Manual V2.0 Scan the QR code download and install the App Please read this manual carefully before using and reserve it for reference. 3/12/2022 Page 1 of 13...

  • Page 2: Product Introduction

    Shenzhen Linshang Technology Co., Ltd. I. Product introduction The coating thickness gauge is used for measuring the thickness of automobile paint. The gauge transmits the measurement data to the mobile phone APP in time through Bluetooth. The mobile APP can record the paint thickness of different parts of the car and the corresponding shell material and can generate test reports.

  • Page 3: Product Advantages

    Shenzhen Linshang Technology Co., Ltd. Power supply 2pcs of 1.5V AAA alkaline battery Operation temperature range -20℃-50℃ Storage temperature range -20℃-60℃ Gauge size 101*62*28 mm Weight(with battery) 79 g Data transmission Bluetooth III. Product advantages 1. No calibration, just zero adjustment.

  • Page 4: Device Setting

    Shenzhen Linshang Technology Co., Ltd. Long press the button to shut down the gauge, or the gauge will automatically shut down in 3 minutes without any operation. When Bluetooth is connected, the gauge will automatically shut down in 10 minutes without any operation.

  • Page 5: Zero Adjustment

    Shenzhen Linshang Technology Co., Ltd. Unit setting The device can be set to the metric or imperial unit, and the factory default is metric. Setting method: In the main setting interface, shortly press the button to select “Unit”. Long press the button for 3s to confirm and then enter the unit selection interface.
  • Page 6 Shenzhen Linshang Technology Co., Ltd. 3.3 After hearing a buzzer sound, the gauge will display “Lift off probe at least 15 cm” (as shown in below picture), release the button and lift the probe away from the plate (substrate) for at least 15 cm.

  • Page 7: Bluetooth Communication

    After the installation is complete, the “漆膜仪(Coating thickness gauge)” icon will appear as shown below. 5.2 How to connect the Bluetooth device A. Open the APP and display the “Linshang” logo for 3 seconds. If there is no bound Bluetooth device, then enter the Bluetooth setting interface.
  • Page 8 Shenzhen Linshang Technology Co., Ltd. After the connection is successful, it will automatically enter into the main measurement interface and display the information read by the gauge and Bluetooth icon will be displayed at the bottom right of the gauge screen.
  • Page 9 Shenzhen Linshang Technology Co., Ltd. B. If the APP has a bound Bluetooth device, the logo interface will appear for 3 seconds then automatically search and connect the bound Bluetooth device. When the connection is successful, it will automatically enter the “测量(Measurement)” interface and display the information read by the gauge.
  • Page 10 Shenzhen Linshang Technology Co., Ltd. A. Each project bar can preserve the latest 8 sets of measurement data. B. There are 17 projects totally for different parts of the car. (From top to bottom: car roof, engine compartment cover, left front fender, left A-pillar, left front door, left B-pillar, left rear door, left C-pillar, left rear fender, trunk lid, right rear fender, right C-pillar, right rear door, right B-pillar, right front door, right A-pillar, right front fender).
  • Page 11 Shenzhen Linshang Technology Co., Ltd. 5.5 Report Click the "报告(Report)" button and the APP will list all reports on the current phone. Click "保存到相册(Save to Album)" to save the report to the phone album; The prompt will appear as below when the save is successful.
  • Page 12 Shenzhen Linshang Technology Co., Ltd. Click “删除(Delete)” to delete the current report. Click “全选(Select All)” to delete the report in batches. 5.6 Exiting the APP Click "退出(Exit)" in the lower right corner of the interface or click the phone to return. Pop up the confirmation box, click “确定(Confirm)"...

  • Page 13: Packing List

    2. Provide users with spare parts and lifelong maintenance services. 3. Provide the users with the gauge calibration service. 4. Free technical support for long term. Manufacturer: Shenzhen Linshang Technology Co., Ltd. Website: www.linshangtech.com Service hotline: +86-755-86263411 Email: sales21@linshangtech.com...
