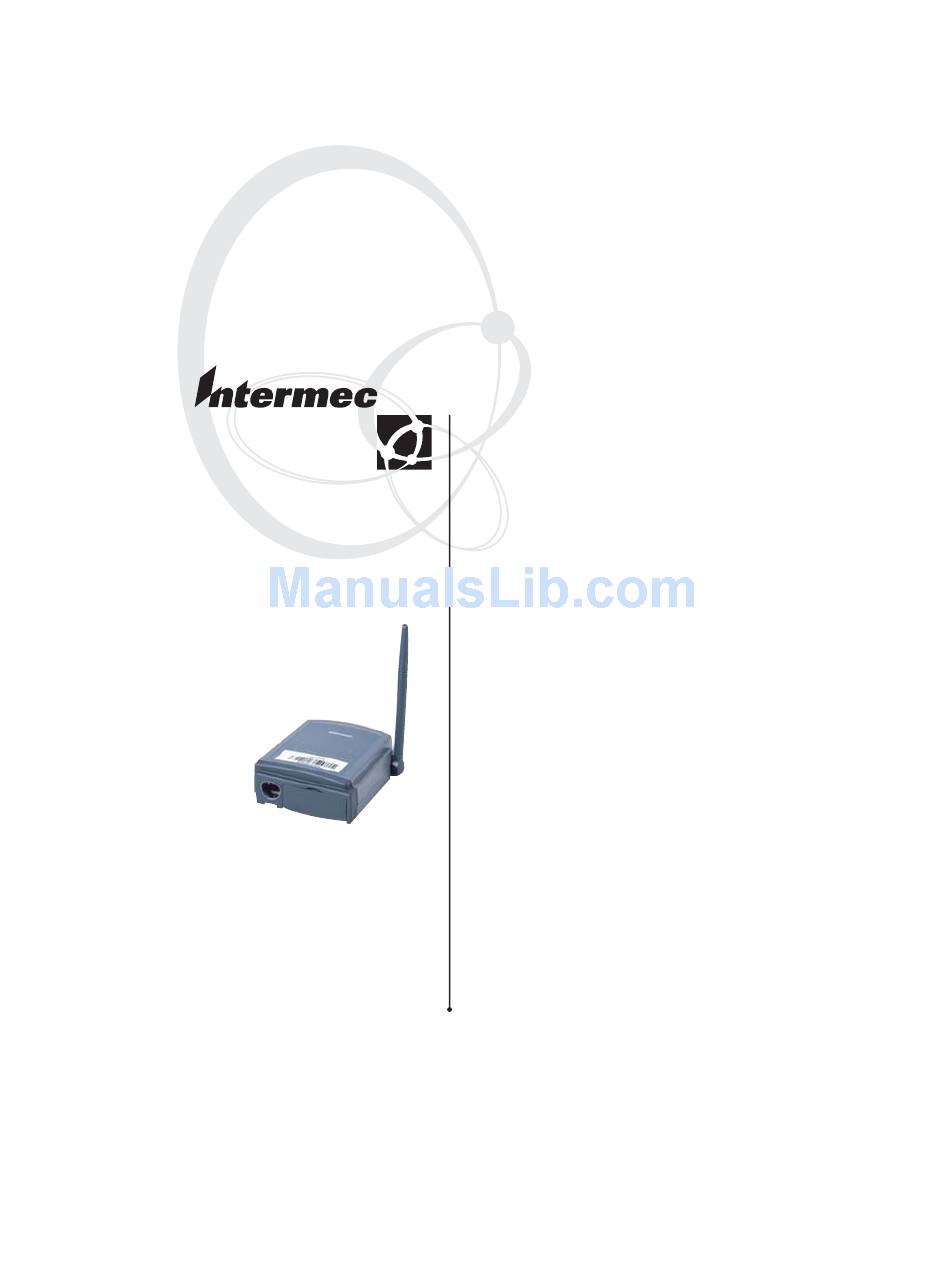

  • Page 1 User’s Guide MicroBar 9745 Base Station...
  • Page 2 Intermec Technologies Corporation. 1998-2006 Intermec Technologies Corporation. All rights reserved. The word Intermec, the Intermec logo, Norand, ArciTech, Beverage Routebook, CrossBar, dcBrowser, Duratherm, EasyADC, EasyCoder, EasySet, Fingerprint, INCA (under license), i-gistics, Intellitag,...

  • Page 3: Table Of Contents

    Contents Overview of the MicroBar 9745 Base Station... 4 Unpacking the MicroBar 9745 Base Station... 4 Understanding the MicroBar 9745 Features ... 5 Light... 6 Electrical Rating ... 6 Environment... 6 Ordering Cables ... 7 Connecting the MicroBar 9745 Base Station...11 Associating the Scanner to the Base Station...13...

  • Page 4: Overview Of The Microbar 9745 Base Station

    “Connecting the MicroBar 9745 Base Station” on page 11. Unpacking the MicroBar 9745 Base Station Your MicroBar 9745 base station was thoroughly tested and inspected before it was shipped from the factory. The shipping box contains:...

  • Page 5: Understanding The Microbar 9745 Features

    If any of these items are missing or damaged, please contact your local Intermec representative. Retain the shipping box in case you need to ship the base station. Understanding the MicroBar 9745 Features Use the following photograph to locate and identify the main features of the MicroBar 9745 base station.

  • Page 6: Light

    If the light flashes and then goes out, return the base station to your Intermec representative. Electrical Rating The MicroBar 9745 base station electrical ratings are x 4.5 to 14.5V; 400 mA. Environment Operating Temperature: -20 to 50 C (-4 to 122 F)

  • Page 7: Ordering Cables

    PC you connect the base station to. To order a cable, contact your local Intermec representative. If you use the base station in an environment where it can get wet, use an auxiliary cable. Only use the host and power cables in areas where the base station will not get wet.
  • Page 8 Ordering Cables (continued) Base Station to Host Cables IBM 3153/3471/72, 76/77 Harris H180/191 ADI 1496 BDS-7 (HDS-7) DEC PC VT510/520/525 DEC VT220/320/420 Falco 5220 IBM 3161/62/63, 3179, 3180, 3191/92, 3196/97 ADI 1496 IBM 4683/84, 4693/94 Port 5A IBM 4683/84, 4693/94 Port 5B IBM 4683/84, 4693/94 Port 9A/B IBM 4683/84, 4693/94 Port 17 IBM PC Clones (Mini Din)
  • Page 9 Ordering Cables (continued) Base Station to Host Cables RS-232 Serial Wedge ADDS 400 RS-232 DB9 pin Male (True Output), Y power jack RS-232 DB9 pin Female (True Output), Y power jack Laptop PS2/Min Din Style RS-232 DB25 pin Male (True Output), Y power jack RS-232 DB25 pin Female (True Output), Y power jack...
  • Page 10 Ordering Cables (continued) Auxiliary Port Cables Cable Assembly, Straight, 10 pin Wand Emulation, 2.43 m (8 ft) Cable Assembly, Straight, 10 pin Wand Emulation, 4.57 m (15 ft) Cable Assembly, Straight, 10 pin Wand Emulation, 6.1 m (20 ft), Cable Assembly, Straight, RS-232, 9 pin D-sub, 2.43 m (8 ft) Cable Assembly, Straight, RS-232, 9 pin D-sub, 4.57 m (15 ft)

  • Page 11: Connecting The Microbar 9745 Base Station

    .91 m (3 ft) * Power on pin 9; no power supply required. Note: The auxiliary cable does not support wedge interfaces. Connecting the MicroBar 9745 Base Station You can connect the base station to these terminals and computers: IBM PC XT/AT or PS/2 Mod 30 compatible...
  • Page 12 Or you can connect the base station to these Intermec readers and terminals: 944X Portable Terminals 95XX Network Terminals ® TRAKKER Antares™ 24XX Terminals 97XX Wedge Readers JANUS™ 2010 Terminals (J2010 and JG2010) 5900 Vehicle-Mount Terminal 1700 Handheld Terminal 64XX Handheld Terminals...

  • Page 13: Associating The Scanner To The Base Station

    Configuring for Your Terminal or Computer You must configure the MicroBar 9745 base station to work with your terminal or computer. To configure a base station for your terminal or computer 1.
  • Page 14 Note: If you cannot find your terminal or computer in this list, see the Sabre 1552 Laser Scanner and MicroBar 9745 Base Station System Manual, which contains a more extensive list. 3. Use the bar codes on the next page to scan the three-digit ID number for your terminal or computer.
  • Page 15 ID Number Bar Codes...

  • Page 16: Troubleshooting The Microbar 9745 Base Station

    Troubleshooting the MicroBar 9745 Base Station This table describes common base station problems and provides possible solutions. If you continue to encounter problems with your base station, contact your local Intermec representative. Problem Solution System is “jammed” The base station could not process the and scanner will not information.

  • Page 17: Accessories For The Microbar 9745 Base Station

    Accessories for the MicroBar 9745 Base Station These accessories are available for the MicroBar 9745 base station. Belt Clip (P/N 205019) You can attach your base station to your belt so that it will always be in range of the Sabre 1552 laser scanner.

  • Page 18: Where To Find More Information

    Where to Find More Information For more information about configuring and using the 9745 base station, see the Sabre 1552 Laser Scanner and MicroBar 9745 Base Station System Manual. Two versions of this manual are available: P/N 070086 is for customers with 1552 software v3.25 (or higher) and 9745 software v3.31 (or higher).
  • Page 20 Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com MicroBar 9745 Base Station User’s Guide *067051-003* P/N 067051-003...
