Intermec MicroBar 9745 Supplementary Manual

Base Station Belt Clip Instruction Sheet

Use the belt clip to hang your base station from your belt. You
can use the belt clip with any belt.

To use the belt clip

1. Pinch the belt clip and hold it open.

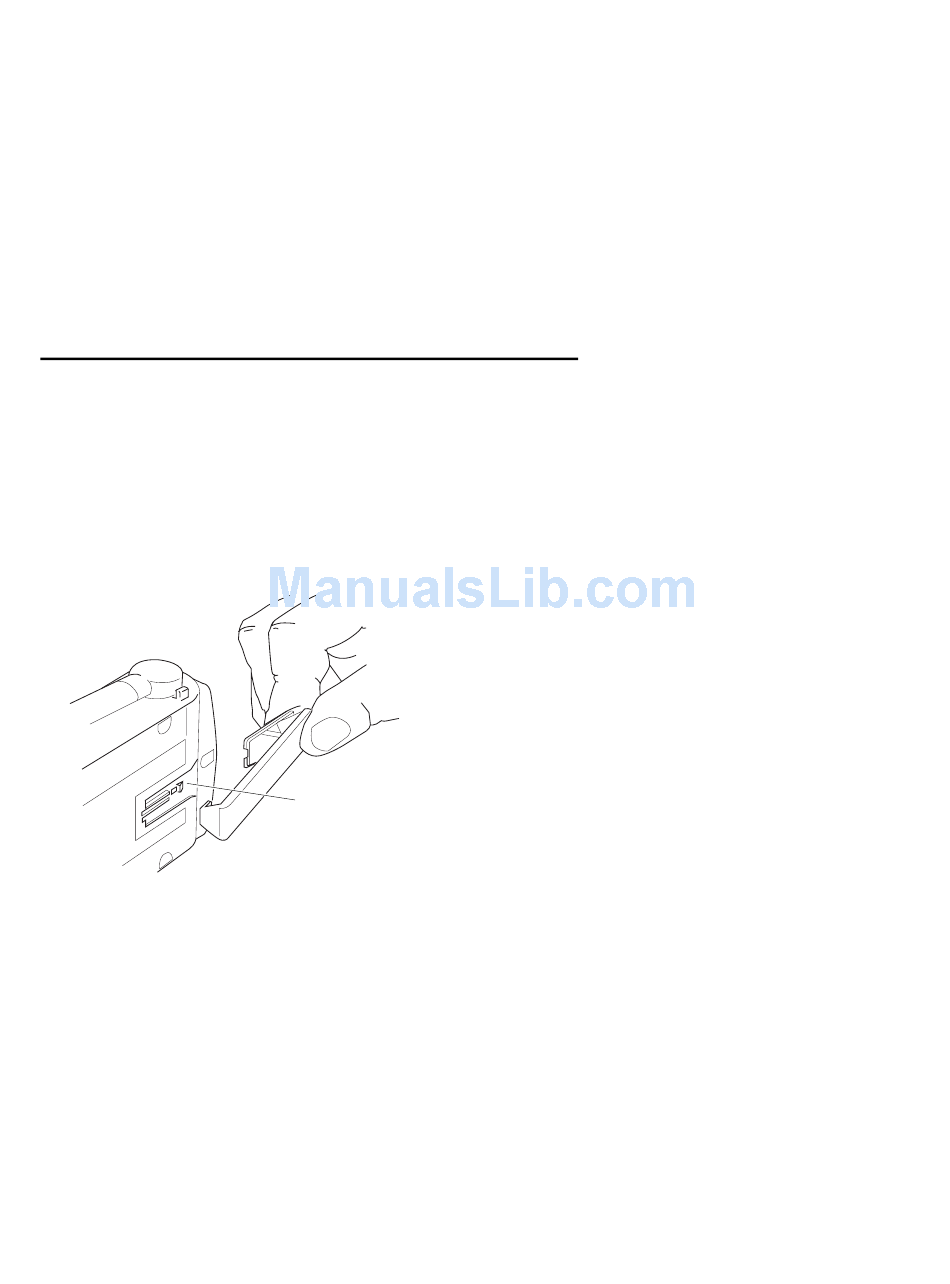

2. Slide the belt clip into the mounting slot on the bottom of the
base station until it clicks into place.
3. Open the belt clip and attach the base station to your belt.
For the maximum distance between the scanner and the base
station, make sure your body does not come between the base
station and the scanner while you are scanning.
Mounting
slot
9745BBI.001
P/N 067676-001
