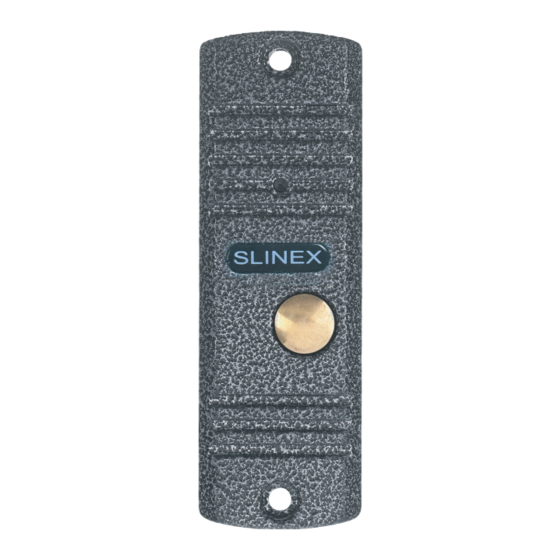

- Page 1 ML-16 DESIGN video door panel DIRECT User manual Thank you for the choice of our equipment { Design. Unique. Innovation }...
- Page 2 This manual can contain some inaccuracy or misprint. The owner reserves the right to make corrections to the information described in the user manual and device package. The last revision of this manual is available on www.slinex.com Rev. 1.0...
- Page 3 DESIGN { Design. Unique. Innovation } DIRECT Table of contents 1. Package ML-16 door panel − 1 pc. 1. Package ..........................4 Angle bracket − 1 pc. 2. Speci cation ......................... 4 Rainshield − 1 pc. 3. Description..........................6 Mounting screws and nuts − 1 pkg. 4.
- Page 4 DESIGN { Design. Unique. Innovation } DIRECT 3. Description 41 мм ML-16 wire colors Power, +12 V Microphone Black Ground (GND) Video camera Yellow Video Night infrared backlight White Audio Call button Brown COM relay contact Speaker Blue N.O. relay contact...
- Page 5 DESIGN { Design. Unique. Innovation } DIRECT 5. Installation 4. Schematic diagram Lock Lock power supply COM (Brown) 1) Take the angle bracket from the kit and situate it 150-160 cm from the oor N.O. (Blue) TV out Power line; Power (Red) Audio (White) 2) Mark and drill two halls inside the wall;...
- Page 6 DESIGN { Design. Unique. Innovation } DIRECT associated with determining the source of system problems or removing, 6. Limited warranty servicing or installing products. This warranty excludes third party software, Manufacturer guarantees product normal functioning during the warranty connected equipment or stored data. Manufacturer is therefore not liable for period if the user keeps all safety instructions described in that manual.
