Related Manuals for Slinex ML-20HD
Summary of Contents for Slinex ML-20HD

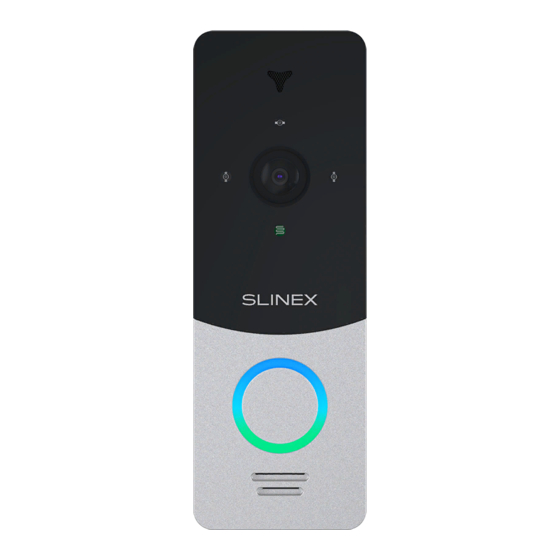

- Page 1 Design. Uniqueness. Innovations Design. Uniqueness. Innovations ML-20HD Technical support Video outdoor station AHD 1080P (2 Mp) Thank you for User manual choosing our equipment...
- Page 2 ML-20HD Safety instructions Nature protection Read and keep that manual. Don’t throw away the device with other industrial or The device installation process should be carried out by the quli ed nutritive trash if you see that symbol. Some regions have specialists.
- Page 3 ML-20HD Table of contents 1. Package 1. Package .......................... ML-20HD outdoor panel − 1 pc. Wall mounting bracket − 1 pc. 2. Speci cation ......................... Angle bracket − 1 pc. 3. Description........................Rainshield − 1 pc. 4. Schematic diagram ....................
- Page 4 ML-20HD 3. Description 24 mm 45 mm Wire colors Power, +12 V Microphone Ground (GND) Black Night infrared backlight Video Yellow Video camera Call button White Audio Speaker Brown N.O. relay contact Video camera mode button Blue COM. relay contact Communication cable Red &...
- Page 5 ML-20HD 4. Schematic diagram 5. Installation Lock Lock power supply Power Angle mount N.O. (Brown) COM.(Blue) 1) Take the angle bracket from the kit and place it 150-160 cm from the oor Output Input Power (Red) line; Audio (White) GND (Black) 2) Mark and drill two halls inside the wall;...
- Page 6 ML-20HD 6. Video camera output setting (AHD or PAL) Outdoor panel video camera can work in three basic modes: AHD 1080p (2 MP) – default mode, AHD 720p (1 MP) or analog CVBS (PAL). AHD is a high-resolution mode, so it has better image quality than analog CVBS mode.
- Page 7 ML-20HD defective products, as provided above. Manufacturer is not liable for, and 7. Limited warranty does not cover under warranty, any damages or losses of any kind Manufacturer guarantees product normal functioning during the warranty whatsoever resulting from loss of, damage to, or corruption of, content or period if the user keeps all safety instructions described in that manual.
