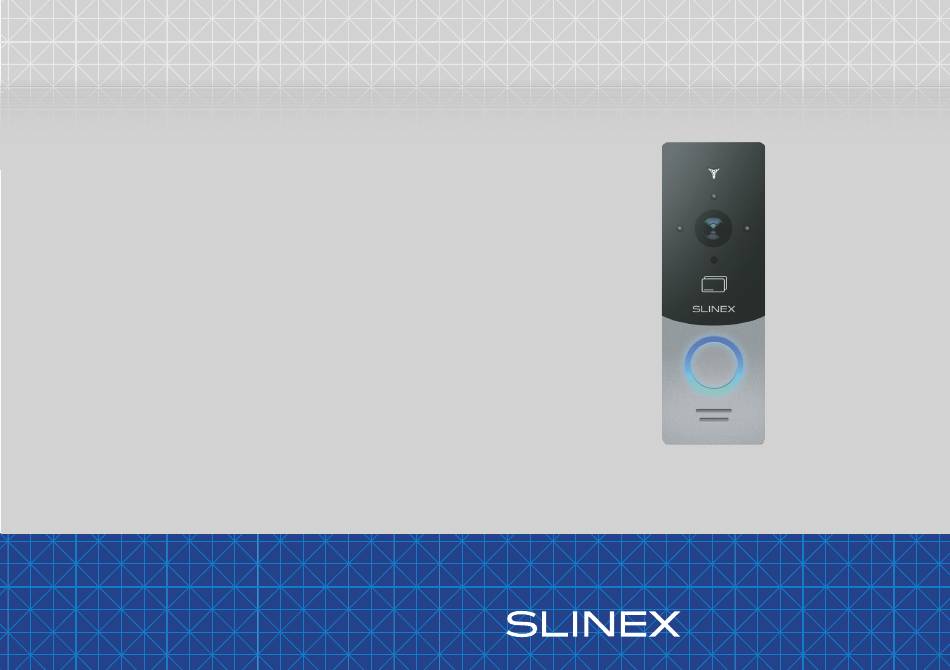

- Page 1 ML-20CR SERIES video door panel ACCESSORIES with wireless ID card reader User manual Thank you for choosing our equipment { Design. Uniqueness. Innovations }...
- Page 2 This manual can contain some inaccuracy or misprint. The owner reserves the right to make corrections to the information described in the user manual and device package. The last revision of this manual is available on www.slinex.com Rev. 2.0...
- Page 3 SERIES { Design. Uniqueness. Innovations } ACCESSORIES 1. Package Table of contents ML-20CR door panel − 1 pc. 1. Package ..........................4 Wall mounting bracket − 1 pc. 2. Speci cation .........................4 Angle bracket − 1 pc. 3. Description..........................6 Rainshield − 1 pc.
- Page 4 SERIES { Design. Uniqueness. Innovations } ACCESSORIES 3. Description 24 mm 45 mm ML-20CR connection cable colors Power (to the monitor) Microphone Black Ground (to the monitor) Night infrared backlight Yellow Video (to the monitor) Video camera White Audio (to the monitor)
- Page 5 SERIES { Design. Uniqueness. Innovations } ACCESSORIES 5. Installation Angle mounting: Flat mounting: 1) Take the angle bracket from the kit and situate it 150-160 cm from the oor 1) Take the wall mounting bracket from the kit and situate it 150-160 cm from line;...
- Page 6 10 seconds then door panel will be automatically Orange (+) Grey(–) switched into standby mode). Only one manager ID card can be added to Brown the card reader memory. Blue ML-20CR Lock Lock power supply...
- Page 7 SERIES { Design. Uniqueness. Innovations } ACCESSORIES «Unlock ID cards setup» and «delete card» modes Sound and visual indication. 1) In standby mode situate management card near the card reader to enter Door unlock successfull – double short «beep» and call button backlight «unlock cards setup»...
- Page 8 SERIES { Design. Uniqueness. Innovations } ACCESSORIES not cover under warranty, any damages or losses of any kind whatsoever 8. Limited warranty resulting from loss of, damage to, or corruption of, content or data or any costs Manufacturer guarantees product normal functioning during the warranty associated with determining the source of system problems or removing, period if the user keeps all safety instructions described in that manual.
